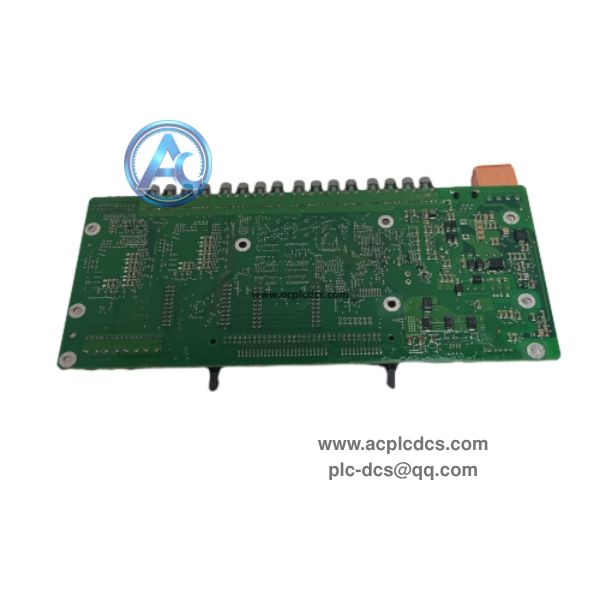

ABB PPC907BE 3BHE024577R0101 AMC34 Control Board

ABB PPC907BE 3BHE024577R0101, also named AMC34, is a high-performance core control board for ABB UNITROL 6000 generator excitation system. It executes high-speed real-time control algorithm, voltage regulation and protection logic for synchronous generator excitation control.

This board supports multiple industrial communication protocols and high-speed backplane bus connection. It adopts plug-in rack structure and conformal coating protection for harsh power plant environments, widely used for power station excitation cabinet maintenance, spare parts replacement and excitation system retrofit projects.

Data Parameters

• 1. Brand: ABB.

• 2. Model: PPC907BE 3BHE024577R0101 (AMC34).

• 3. Product Type: Generator Excitation Core Control Board.

• 4. Applicable System: ABB UNITROL 6000 excitation control system.

• 5. Power Supply: 24 VDC auxiliary control power supply.

• 6. Communication: Ethernet, serial bus and backplane high-speed interface.

• 7. Main Function: AVR regulation, PSS calculation and excitation limit protection.

• 8. Power Consumption: Less than 4.5W under normal working condition.

• 9. Operating Temperature: -20℃ ~ +70℃.

• 10. Installation: Plug-in rack mounting inside UNITROL 6000 excitation cabinet.

Core Functions

• 1. Run automatic voltage regulation algorithm to stabilize generator terminal voltage under variable load conditions.

• 2. Execute PSS power system stabilization function to suppress low-frequency oscillation of power grid.

• 3. Implement multiple excitation protection including over-excitation, under-excitation and V/Hz limiting protection.

• 4. Collect real-time generator electrical signals and record operation events and fault disturbance waveforms.

• 5. Realize data interaction with upper monitoring system through multi-channel communication interfaces.

Application Scenarios

• 1. Thermal power plant UNITROL6000 excitation cabinet PPC907BE control board replacement and maintenance.

• 2. Hydropower station synchronous generator excitation control system hardware retrofit project.

• 3. Combined cycle power plant and distributed energy station excitation spare parts renewal.

• 4. Petrochemical and mining self-owned power plant generator control cabinet spare parts inventory backup.

• 5. Legacy ABB UNITROL 6000 excitation system overhaul and aging main control board replacement project.

FAQ

• 1. Q: What is ABB PPC907BE 3BHE024577R0101?
      A: It is AMC34 main control board for ABB UNITROL6000 generator excitation system, responsible for voltage regulation and protection logic.

• 2. Q: What system is PPC907BE compatible with?
      A: It is specially designed for ABB UNITROL 6000 series generator excitation control cabinet.

• 3. Q: What power supply does this control board need?
      A: It requires 24 VDC auxiliary power supply to support the operation of control logic and communication circuits.
