FOXBORO X440-G2-24fx-GE4 RH102AN Managed Fiber Ethernet Switch

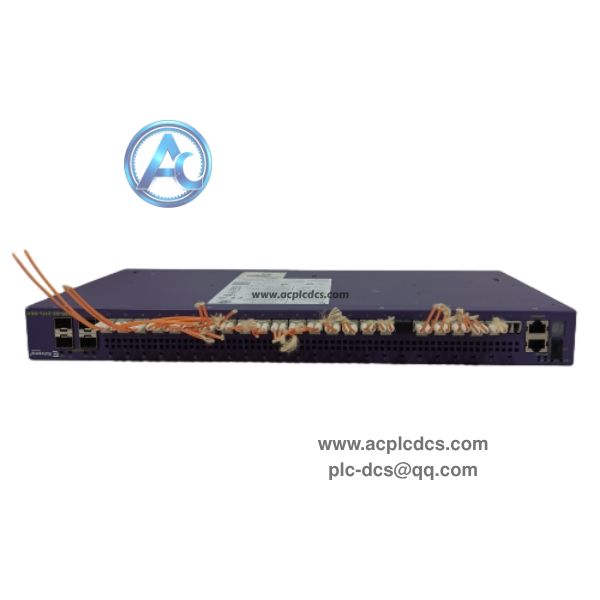

FOXBORO X440-G2-24fx-GE4 RH102AN is an Extreme Networks X440-G2 series managed industrial fiber switch customized for Foxboro I/A & Evo DCS systems. It adopts 24-channel 100BASE-FX LC fiber ports and 4 gigabit SFP uplink slots, providing stable long-distance fiber networking for process control loops.

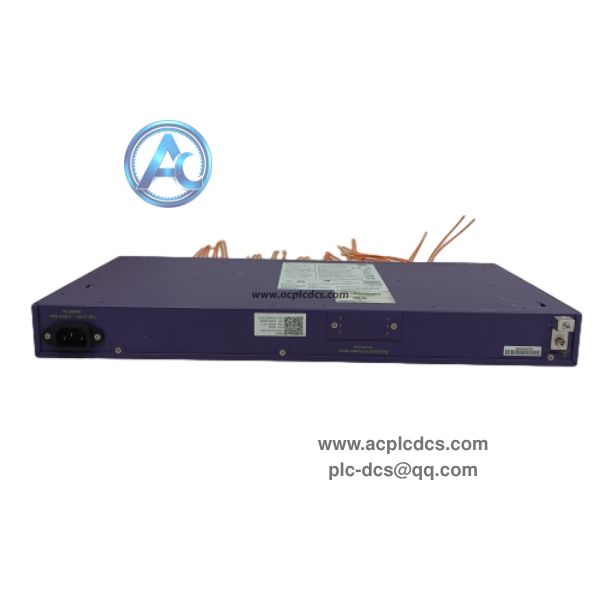

This 1U rackmount switch supports Layer 2 switching and Layer3 IPv4/IPv6 routing, VLAN, ACL and stacking function. It features wide AC input and strong EMC performance, widely deployed in petrochemical, power plant DCS control network maintenance and retrofit.

Data Parameters

• 1. Brand: FOXBORO (Schneider / Invensys, Extreme Networks platform)

• 2. Model: X440-G2-24fx-GE4 RH102AN

• 3. Product Type: 1U Rack Managed Fiber Ethernet Switch

• 4. Application: Foxboro I/A Series & Evo DCS control network

• 5. Feature: 24 × 100BASE-FX LC, 4 × 1G SFP uplink slots

• 6. Characteristic: Wire-speed forwarding, stacking, LACP, QoS, SNMP

• 7. Switch Capacity: 128Gbps, Forwarding rate 95.2Mpps

• 8. Power Input: 100–240VAC, 50/60Hz, IEC C14 socket

• 9. Mounting: Standard 19-inch 1U rack installation

• 10. Operating Temperature: 0℃ ~ +50℃

Core Functions

• 1. Build long-distance fiber communication network for DCS controller, FBM and workstation.

• 2. Support VLAN division, access control list to isolate control and non-control traffic.

• 3. Realize switch stacking for expanding network ports and improving link redundancy.

• 4. Provide out-of-band management port and serial console for local configuration and diagnosis.

• 5. Support link aggregation LACP and fault alarm for industrial control network reliability.

Application Scenarios

• 1. Petrochemical plant Foxboro DCS control cabinet fiber network system.

• 2. Power plant, oil & gas pipeline process automation control network.

• 3. Long-distance field control room fiber communication interconnection.

• 4. Foxboro legacy DCS network upgrade, overhaul and spare replacement.

• 5. Industrial process control fiber switch spare parts inventory backup.

FAQ

• 1. Q: What is FOXBORO X440-G2-24fx-GE4 RH102AN?
      A: It is a fiber managed switch for Foxboro DCS, based on Extreme X440-G2 platform.

• 2. Q: What are the port types?
      A: 24pcs 100M FX fiber LC ports plus 4pcs gigabit SFP uplink slots.

• 3. Q: Can it be used for other brand DCS?
      A: It is widely used in Foxboro I/A / Evo DCS, also available for general industrial Ethernet.
