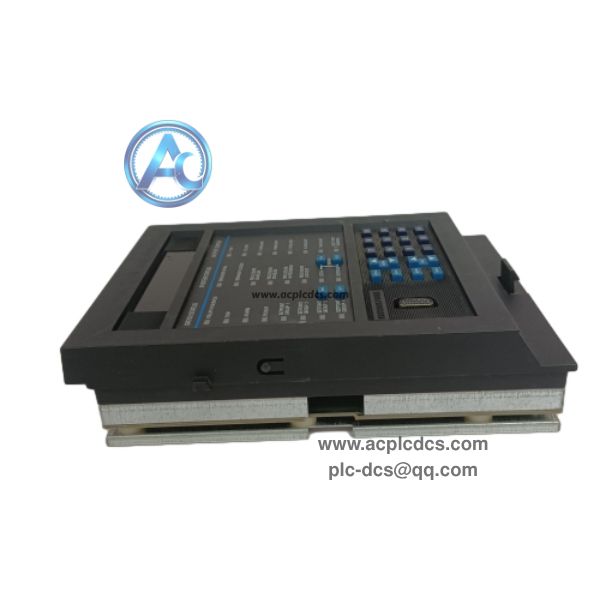

GE SR760 1219-0003 Feeder Relay Operator Interface Panel

GE SR760 front panel 1219-0003 is the operator display & keypad interface board for GE Multilin SR760 feeder management relay. It connects to the main relay CPU via flat ribbon cable, providing local human-machine interface for viewing electrical measurements, alarm status and relay setting parameters.

This front panel integrates LCD display, LED status indicators and function keypad for local operation, parameter configuration and fault checking. Widely used in power, chemical and pulp & paper substation feeder relay maintenance, spare replacement and control system retrofit projects.

Data Parameters

• 1. Brand: GE Multilin (GE Vernova).

• 2. Model: SR760 Front Panel, Part No:1219-0003.

• 3. Product Type: Relay Front Display & Keypad Panel.

• 4. Application: GE SR760 feeder management protection relay.

• 5. Feature: LCD screen, multi-function keypad, LED status indication.

• 6. Characteristic: Ribbon cable connection to relay main CPU board.

• 7. Interface: Internal flat cable, no external communication port on panel.

• 8. Package: Drawout relay front faceplate PCB assembly.

• 9. Mounting: Front panel of SR760 feeder relay unit.

• 10. Operating Temperature: -40℃ ~ +85℃.

Core Functions

• 1. Real-time display of feeder voltage, current, power, frequency and relay protection status.

• 2. Local keypad operation for protection parameter setting, view event logs and fault records.

• 3. LED indicator lights to show relay operation, alarm and trip status visually.

• 4. Local manual control function for circuit breaker opening and closing operation.

• 5. On-site troubleshooting and fault waveform browsing without connecting laptop software.

Application Scenarios

• 1. Power plant substation SR760 feeder relay front panel spare replacement.

• 2. Petrochemical plant medium voltage switchgear feeder protection cabinet maintenance project.

• 3. Pulp and paper mill factory distribution line relay HMI panel upgrade.

• 4. Heavy industry power distribution feeder protection spare parts inventory backup.

• 5. Old SR760 relay damaged display/keypad panel renewal and retrofit.

FAQ

• 1. Q: What is GE SR760 panel 1219-0003?
      A: It is the original front display & keypad panel for GE Multilin SR760 feeder protection relay, used for local man-machine operation.

• 2. Q: Can this panel work independently?
      A: No, it must be matched with SR760 main CPU board, connected via ribbon cable, cannot run separately.

• 3. Q: Can it be hot swapped?
      A: Cut off relay control power before replacement; hot swap is not supported to avoid damage to main board.
