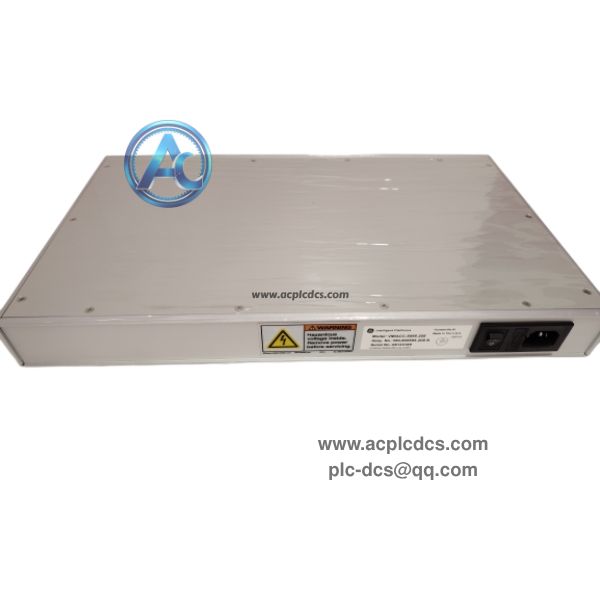

GE VMIACC-5595-208 350-805595-208N Reflective Memory Hub Assembly

GE VMIACC-5595-208 350-805595-208N is a high-speed reflective memory hub for VME bus control systems. It realizes low-latency synchronous data sharing between multiple nodes and is widely used in real-time simulation, turbine and motion control systems.

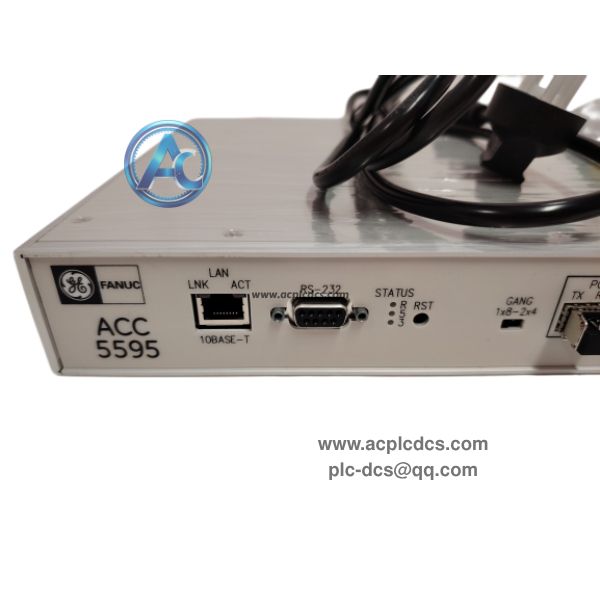

This 1U rack-mount hub comes with 8 SFP fiber slots, RJ45 and RS232 debug ports. It supports 2Gbps transmission rate and up to 256 network nodes, used as maintenance spare for high-reliability real-time control racks.

Data Parameters

• 1. Brand: GE.

• 2. Model: VMIACC-5595-208, 350-805595-208N.

• 3. Product Type: Reflective Memory Hub Assembly.

• 4. Application: VMEbus real-time reflective memory network system.

• 5. Feature: 8*SFP fiber ports, 2Gbps bandwidth, synchronous memory mirroring.

• 6. Characteristic: 19-inch 1U rack mount, RJ45 + RS232 diagnostic interface.

• 7. Communication: Fiber reflective memory network, real-time deterministic transmission.

• 8. Package: Complete hub unit with power cord and dust plugs for SFP slots.

• 9. Mounting: Standard 19-inch cabinet rack installation.

• 10. Operating Temperature: -40℃ ~ +70℃.

Core Functions

• 1. Synchronize memory data of all connected nodes with ultra-low and fixed communication delay.

• 2. Expand reflective memory network through SFP fiber ports for long-distance node connection.

• 3. Provide RS232 and Ethernet port for status check, configuration and fault diagnosis.

• 4. Support up to 256 nodes to work together in the same reflective memory network.

• 5. Maintain deterministic real-time data exchange for simulation and turbine control racks.

Application Scenarios

• 1. Power plant gas turbine control system reflective memory network spare replacement.

• 2. Industrial real-time simulation and hardware-in-the-loop simulation cabinet project.

• 3. Test bench, propulsion and high-speed motion synchronous control system.

• 4. Old VME reflective memory network cabinet upgrade and transformation.

• 5. Aerospace and energy high-speed synchronous control spare inventory backup.

FAQ

• 1. Q: What is GE VMIACC-5595-208 350-805595-208N?
      A: It is an 8-port fiber reflective memory hub for GE VME real-time control network.

• 2. Q: What is the transmission speed?
      A: It runs at 2Gbps and provides deterministic low-latency memory mirroring.

• 3. Q: Is SFP transceiver included?
      A: SFP modules are usually not included, purchased separately according to fiber type.
