GE VMIVME4150 Isolated Analog Output Board

2026-10-27

GE VMIVME4150 12-Channel Isolated 12-bit Analog Output Board

GE VMIVME4150 is a double-height VMEbus isolated analog output board developed by VMIC (GE Intelligent Platforms). It converts digital bus commands into configurable voltage or 4-20mA analog signals, designed for turbine control and real-time simulation systems, with galvanic isolation between each channel and the VME backplane.

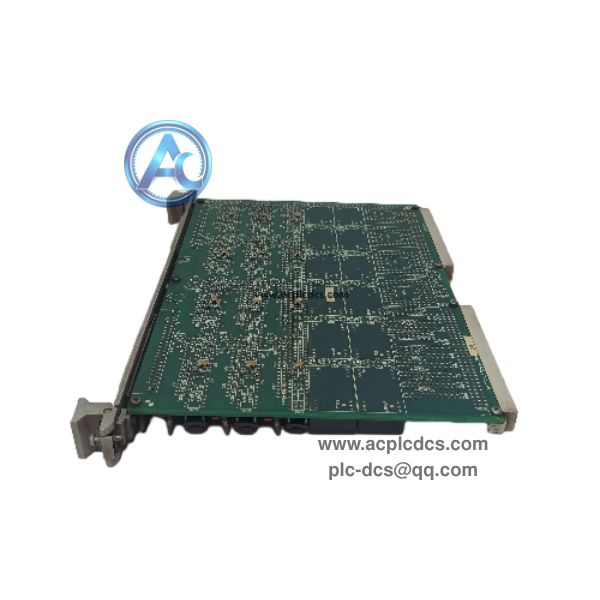

GE VMIVME4150 (2).jpeg

GE VMIVME4150 (1).jpeg

This board supports jumper-selectable output ranges, built-in overvoltage protection and channel readback registers. It is a discontinued legacy spare, commonly paired with VMIVME1150 DI and VMIVME2170A DO boards to complete closed-loop analog control racks.

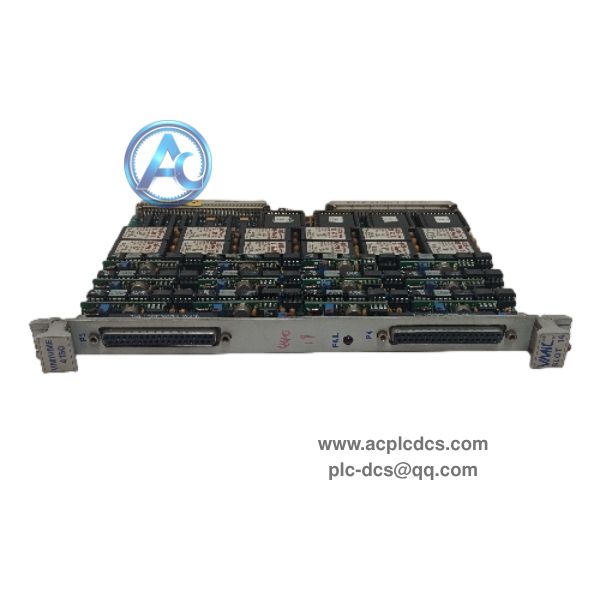

GE VMIVME4150 (3).jpeg

Data Parameters

  • 1. Brand: GE (VMIC)

  • 2. Model: VMIVME4150

  • 3. Product Type: 12-Channel Isolated AO VME Board

  • 4. Application: VMEbus rack, turbine & real-time simulation control system

  • 5. Feature: 12-bit resolution, 1000V channel-to-bus isolation

  • 6. Characteristic: 0.05% voltage accuracy, 0.08% current accuracy

  • 7. Output Range: ±2.5/±5/±10V, 0-10V, 4-20mA optional

  • 8. Form Factor: 6U double height Eurocard

  • 9. Protection: Continuous ±20V protection, transient ±50V withstand

  • 10. Operating Temperature: -25℃ ~ +85℃

Core Functions

  • 1. Convert digital control values from VME CPU into stable analog voltage or current signals.

  • 2. Provide galvanic isolation to eliminate ground loop interference between field devices and rack.

  • 3. Support program-controlled output enable/disable for system test and commissioning.

  • 4. Read back actual output values via internal registers for loop verification.

  • 5. Drive valves, actuators and signal transducers for turbine analog regulation loops.

Application Scenarios

  • 1. GE gas and steam turbine VME control cabinet analog output rack.

  • 2. Hardware-in-loop simulation and real-time test bench signal generation.

  • 3. Power unit auxiliary regulation and actuator control system retrofit.

  • 4. Legacy VMIC VME platform overhaul and spare parts replacement.

  • 5. Matching analog output spare for VMIVME1150 / VMIVME2170A I/O group.

FAQ

  • 1. Q: What is GE VMIVME4150?
        A: It is a 12-channel isolated 12-bit analog output VME board for VMIC turbine control racks.

  • 2. Q: Can it output 4-20mA?
        A: Yes, it supports current loop mode 4-20mA, 0-20mA, 5-25mA by configuration.

  • 3. Q: Can it work standalone without VME backplane?
        A: No, it must be installed on VME backplane with VME master controller.
