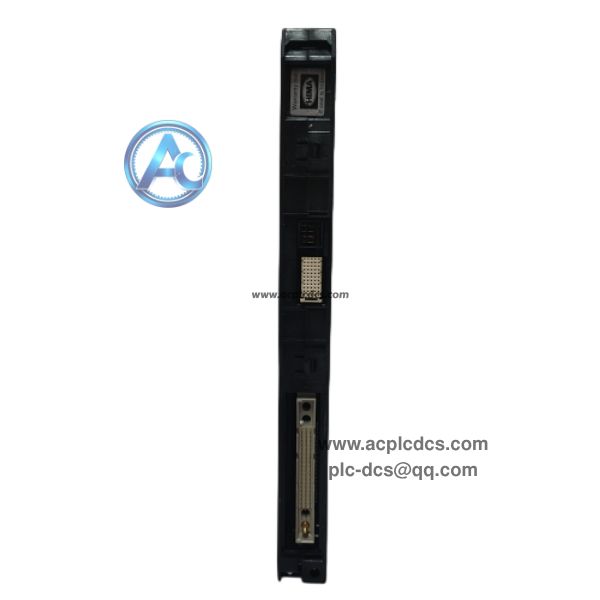

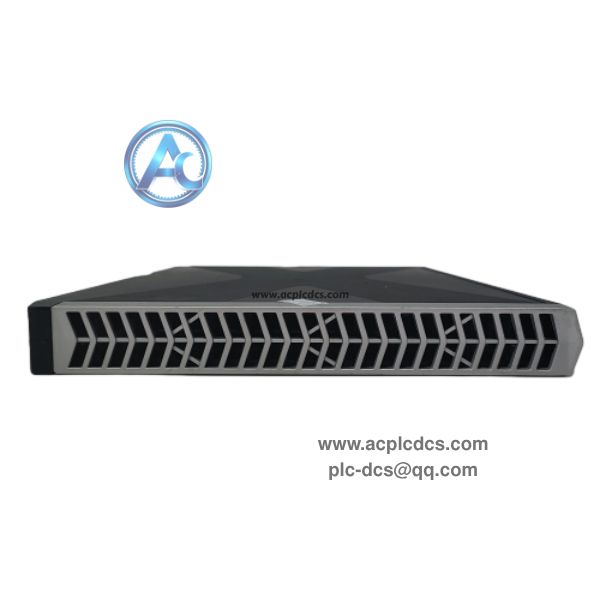

HIMA X-DO2401 24-Channel Digital Output Module

HIMA X-DO2401 is a SIL3 safety digital output module for the HIMax safety control system. It provides 24 channels of 24VDC discrete output signals to drive solenoid valves, relays and alarm indicators in safety loops. The module supports line monitoring for short-circuit and open-circuit faults, with built-in overcurrent protection for each channel.

This hot-swappable module adopts 1oo2 safety processor architecture, communicates with HIMax CPU via redundant backplane safety bus. It is certified up to SIL3, Cat.4 PL e, widely deployed for ESD, BMS and SIS protection loops in oil, gas and chemical plants, used as critical maintenance spare parts.

Data Parameters

• 1. Brand: HIMA

• 2. Model: X-DO2401, Order No.985210203

• 3. Product Type: 24-Channel Safety Digital Output Module

• 4. Application: HIMax SIS, ESD, BMS safety instrument system

• 5. Feature: SIL3 certified, 24 outputs, line fault monitoring, overcurrent protection

• 6. Characteristic: Hot swappable, 1oo2 safety architecture, redundant bus

• 7. Output Spec: 24VDC, 0.5A per channel, max short-circuit limit 2A

• 8. Internal Bus: HIMax redundant safety backplane bus

• 9. Mounting: Plug-in installation for HIMax rack base plate

• 10. Operating Temperature: -20℃ ~ +60℃

Core Functions

• 1. Output safety switching signals to solenoid valves, trip relays and field alarm devices.

• 2. Continuously detect open circuit and short circuit faults on each output wiring.

• 3. Execute safety shutdown and interlock commands issued by the HIMax main CPU.

• 4. Support online hot swap without disrupting redundant safety system operation.

• 5. Meet SIL3 safety requirements for process industry emergency protection loops.

Application Scenarios

• 1. Petrochemical plant emergency shutdown ESD safety control cabinet.

• 2. Refinery and oil-gas pipeline burner management BMS cabinet.

• 3. Power plant boiler and turbine safety instrument SIS system rack.

• 4. HIMax safety system overhaul and digital output spare replacement.

• 5. SIL3 safety loop valve driving and emergency trip output unit.

FAQ

• 1. Q: What is HIMA X-DO2401?
      A: It is a 24-channel SIL3 digital output module designed for HIMA HIMax safety control platform.

• 2. Q: What loads can it drive?
      A: It is suitable for solenoid valves, relays, indicator lights and resistive/inductive loads.

• 3. Q: Can it be used with HIMatrix racks?
      A: No, it is only compatible with HIMax series racks and cannot be used for HIMatrix systems.
