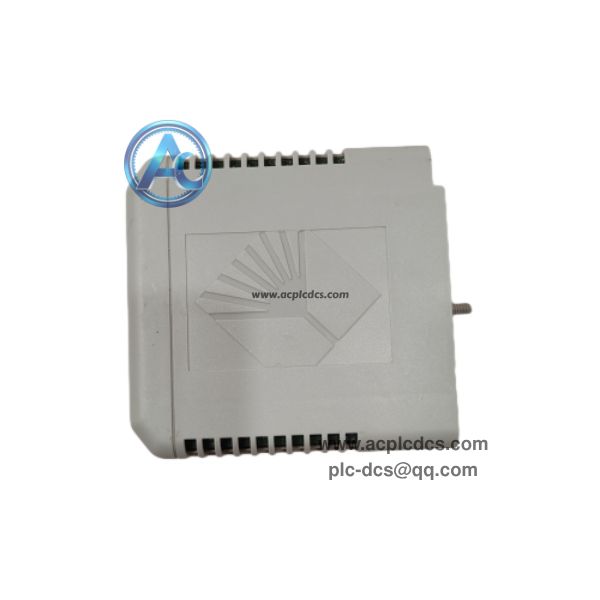

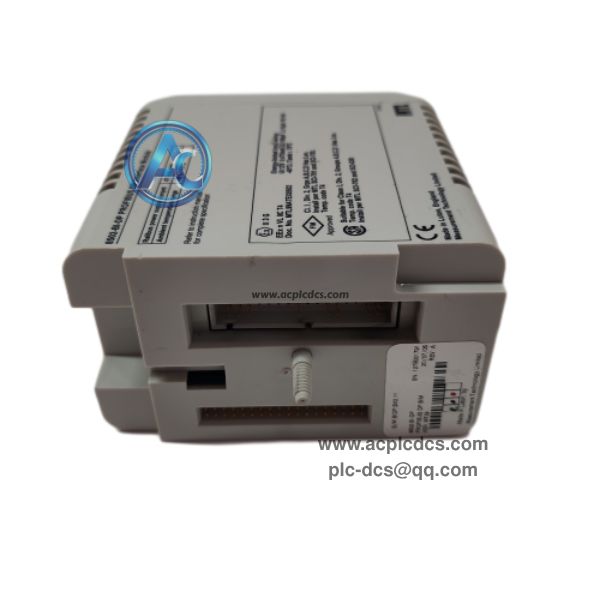

MTL 8502-BI-DP Profibus-DP Bus Interface Module
MTL 8502-BI-DP (often marked as 8502-B1-DP) is a Profibus-DP bus interface module under Eaton MTL 8000 series I/O system. It serves as a communication gateway, connecting MTL 8000 remote I/O modules to Profibus-DP master hosts such as PLC and DCS controllers.
This module supports up to 6 Mbaud baud rate and can drive a maximum of 24 I/O modules. It supports HART transparent transmission and extended bus diagnosis, widely used in petrochemical, oil & gas hazardous area control cabinets for spare replacement.
Data Parameters
1. Brand: Eaton MTL.
2. Model: 8502-BI-DP (8502-B1-DP).
3. Product Type: Profibus-DP Bus Interface Module (BIM).
4. Application: MTL 8000 series remote I/O system, Profibus-DP slave.
5. Feature: High-speed DP communication, support up to 24 I/O modules.
6. Characteristic: HART pass-through, extended bus fault diagnosis.
7. Communication: Profibus-DP, max 6 Mbaud.
8. Package: Complete bus interface module for 8000 rack.
9. Mounting: DIN rail / MTL 8000 series rack installation.
10. Operating Temperature: -20℃ ~ +60℃.
Core Functions
1. Establish Profibus-DP communication between host controller and 8000 I/O modules.
2. Collect AI, AO, DI, DO signals from the backplane I/O modules and upload to host.
3. Realize HART signal tunneling for intelligent field transmitters.
4. Monitor bus status, short circuit and communication faults and output alarms.
5. Receive control commands from DP master and distribute to corresponding I/O channels.
Application Scenarios
1. Petrochemical and refinery Profibus-DP distributed I/O control system.
2. Oil & gas offshore platform and pipeline hazardous area automation cabinet.
3. Explosion-proof zone field remote signal acquisition and control station.
4. MTL 8000 series I/O system maintenance, retrofit and spare replacement project.
5. Profibus-DP bus interface module spare inventory backup.
FAQ
1. Q: What is MTL 8502-BI-DP?
A: It is a Profibus-DP bus interface gateway for MTL 8000 remote I/O system.2. Q: How many I/O modules can it connect?
A: It supports up to 24 pieces of MTL 8000 series I/O modules.3. Q: Does it support HART?
A: Yes, it supports HART transparent transmission for smart instruments.
