REXROTH PPC-R22.1N-T-Q1-P2-NN-FW Multi-axis Motion Controller

2026-10-10

REXROTH PPC-R22.1N-T-Q1-P2-NN-FW Multi-axis Motion Controller

REXROTH PPC-R22.1N-T-Q1-P2-NN-FW is a high-performance multi-axis motion controller of PPC series, developed by Bosch Rexroth Indramat for complex machine automation. It handles motion sequence logic and servo synchronization for multi-axis servo drive systems.


REXROTH PPC-R22.1N-T-Q1-P2-NN-FW (1).png

This rack-based controller is installed inside RECO02 chassis, supporting SERCOS fiber communication and fieldbus data interaction. It is widely used as spare replacement parts for printing machinery, packaging equipment and legacy machine tool retrofit projects.

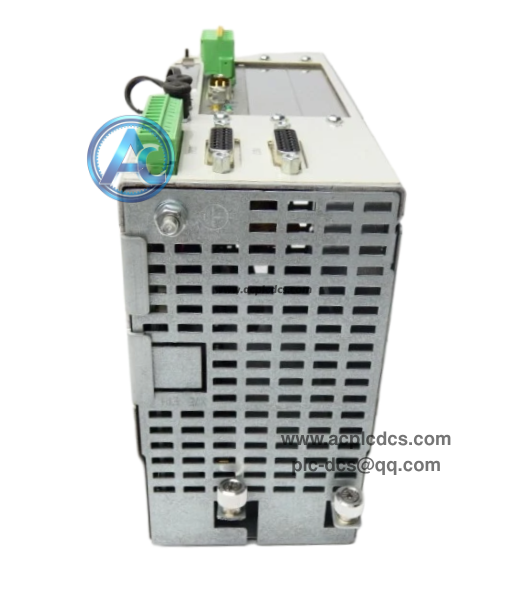

REXROTH PPC-R22.1N-T-Q1-P2-NN-FW (2).png

Data Parameters

  • 1. Brand: REXROTH (Bosch Rexroth Indramat).

  • 2. Model: PPC-R22.1N-T-Q1-P2-NN-FW.

  • 3. Product Type: Multi-axis Motion Controller.

  • 4. Mounting: RECO02 rack plug-in module.

  • 5. Supply Voltage: 24VDC (19.2 ~ 30VDC operating range).

  • 6. Main Interface: SERCOS optical fiber, serial communication port.

  • 7. Fieldbus: Profibus DP slave interface.

  • 8. Operating Temperature: 0℃ ~ +55℃.

  • 9. Protection Class: IP20 for cabinet internal installation.

  • 10. Application: Multi-axis servo synchronous motion control.

Core Functions

  • 1. Execute multi-axis synchronized motion control for servo drive systems.

  • 2. Realize high-speed SERCOS fiber communication with Indramat servo drives.

  • 3. Exchange process data with upper PLC via Profibus DP fieldbus.

  • 4. Store motion programs, process parameters and equipment fault logs.

  • 5. Complete hardware self-diagnosis and report controller or bus faults.

Application Scenarios

  • 1. High-speed packaging machinery multi-axis servo control cabinet.

  • 2. Printing, paper processing and web handling automation equipment.

  • 3. Metal forming machine tools and industrial cutting equipment.

  • 4. Textile machinery and material handling automated production lines.

  • 5. Rexroth PPC series old machine controller spare parts replacement.

FAQ

  • 1. Q: What is REXROTH PPC-R22.1N-T-Q1-P2-NN-FW?
        A: It is Rexroth PPC series multi-axis motion controller, used to control and synchronize multiple servo axes for complex automation machines.

  • 2. Q: What communication interfaces does this controller support?
        A: It adopts SERCOS optical fiber interface for servo drives and Profibus DP to communicate with PLC host system.

  • 3. Q: What kind of power supply does the PPC-R22.1 controller need?
        A: Rated 24VDC power supply, the allowable operating voltage range is 19.2VDC to 30VDC.
