TELKOOR CPCI-AC-6U-500 900-7002-99 CompactPCI Power Supply Module

2026-10-27

TELKOOR CPCI-AC-6U-500 900-7002-99 CompactPCI Power Supply Module

TELKOOR CPCI-AC-6U-500 900-7002-99 is a 500W 6U CompactPCI AC power supply, fully compliant with PICMG 2.11 specification. It adopts universal AC input and active PFC design, supplying multi-channel stable DC power for CompactPCI rack backplane.


CPCI-AC-6U-500 900-7002-99 (7).jpeg

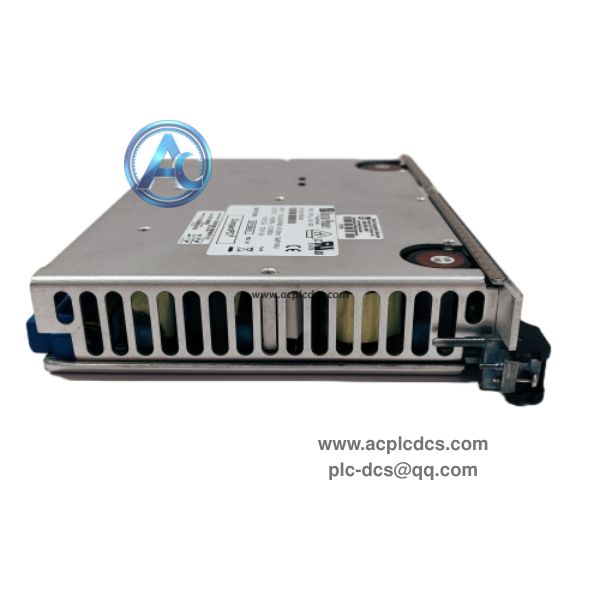

CPCI-AC-6U-500 900-7002-99 (8).jpeg

This hot-swap power module integrates overvoltage, overcurrent and short-circuit protection. It uses 47-pin Positronic connector, widely deployed in industrial computer, test measurement and telecom CompactPCI chassis.

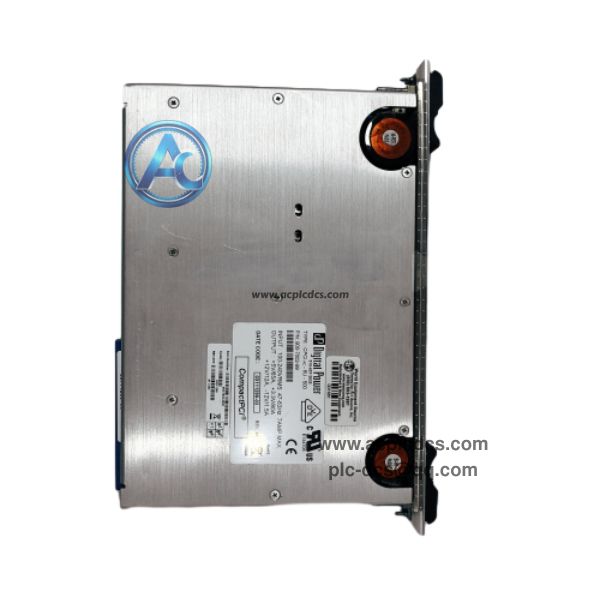

CPCI-AC-6U-500 900-7002-99 (5).jpeg

Data Parameters

  • 1. Brand: TELKOOR.

  • 2. Model: CPCI-AC-6U-500 900-7002-99.

  • 3. Product Type: 6U CompactPCI AC Power Supply Module, 500W.

  • 4. Application: CompactPCI PICMG 2.11 Industrial CPCI Rack System.

  • 5. Feature: Universal 85-264VAC input, active power factor correction.

  • 6. Characteristic: Hot swap, built-in full protection circuit, forced air cooling.

  • 7. Interface: 47-pin Positronic standard CPCI power connector.

  • 8. Rated Output: 500W continuous power.

  • 9. Mounting: 6U CPCI rack slot installation.

  • 10. Operating Temperature: 0℃ ~ +60℃.

Core Functions

  • 1. Convert wide-range AC input into standard multi-rail DC for CPCI backplane.

  • 2. Provide active PFC to reduce harmonic interference and improve power factor.

  • 3. Support hot swap replacement without powering down the whole chassis.

  • 4. Trigger shutdown protection automatically under OVP, OCP and short circuit fault.

  • 5. Work in redundant configuration to enhance system reliability for critical equipment.

Application Scenarios

  • 1. Industrial CompactPCI IPC, data acquisition and test equipment chassis.

  • 2. Telecommunication, defense and aerospace CPCI embedded control systems.

  • 3. Railway, energy and medical high-reliability CPCI automation platforms.

  • 4. TELKOOR CPCI rack maintenance, retrofit and spare replacement.

  • 5. 6U CPCI redundant power backup spare parts inventory.

FAQ

  • 1. Q: What is TELKOOR CPCI-AC-6U-500 900-7002-99?
        A: It is a 500W 6U CompactPCI AC power supply compliant with PICMG2.11.

  • 2. Q: Does it support hot swap?
        A: Yes, it supports hot swap for redundant power configuration.

  • 3. Q: What connector does it adopt?
        A: Standard 47-pin Positronic CPCI power connector.
