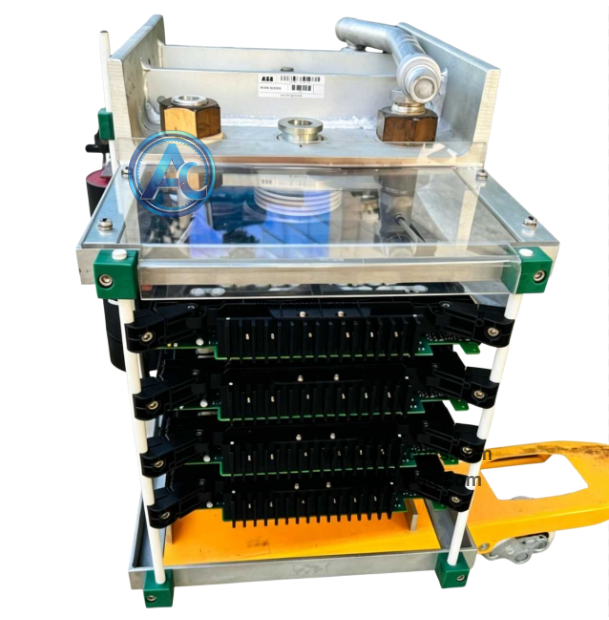

ABB S-073N ALU 3BHB009884R5211 IGCT Phase Module in stock
ABB S-073N ALU 3BHB009884R5211 is an IGCT-based phase module designed for ABB ACS6000 medium voltage drive system. It acts as the core power unit of active front-end rectifier, handling high power conversion, phase measurement and control for medium-voltage variable frequency drives.
This module integrates IGCT power semiconductors, gate drive circuits and multi-layer protection functions. It adopts modular cabinet installation, supports precise phase adjustment and power factor correction. Widely used for large medium-voltage motor drives in oil & gas, metallurgy, power and water industry.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | ABB |
| 2 | Model | S-073N ALU, Part No:3BHB009884R5211 |
| 3 | Module Type | IGCT Medium Voltage Phase Power Module |
| 4 | Compatible System | ABB ACS6000 Medium Voltage AC Drive |
| 5 | Core Device | Integrated Gate-Commutated Thyristor (IGCT) |
| 6 | Function Type | Active Front-End 2-quadrant rectifier |
| 7 | Operating Temperature | 0℃ ~ +60℃ |
Core Functions
| No. | Function Description |
|---|---|
| 1 | High power AC-DC conversion as active front-end rectifier for MV drive |
| 2 | Precise voltage and current phase detection and real-time phase control |
| 3 | Power factor correction and harmonic suppression for grid side |
| 4 | Integrated gate drive control for IGCT power semiconductor switching |
| 5 | Built-in overcurrent, overvoltage and overtemperature hardware protection |
Application Scenarios
| No. | Application |
|---|---|
| 1 | ABB ACS6000 medium voltage variable frequency drive power unit |
| 2 | Large compressor, pump and fan medium voltage motor speed control |
| 3 | Metallurgical rolling mill and heavy industry high-power motor drive |
| 4 | Oil & gas, power plant medium voltage power conversion system |
| 5 | ACS6000 drive spare parts replacement and maintenance retrofit |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is ABB S-073N ALU 3BHB009884R5211? A:It is IGCT phase power module for ABB ACS6000 medium voltage drive, used as active front-end rectifier unit. |
| 2 | Q:What is the difference between S-073N and S-073N ALU? A:ALU version is the complete assembled phase unit with power components and gate drive circuits. |
| 3 | Q:Which drive system does it match? A:It is specially designed for ABB ACS6000 series medium voltage AC drives. |
