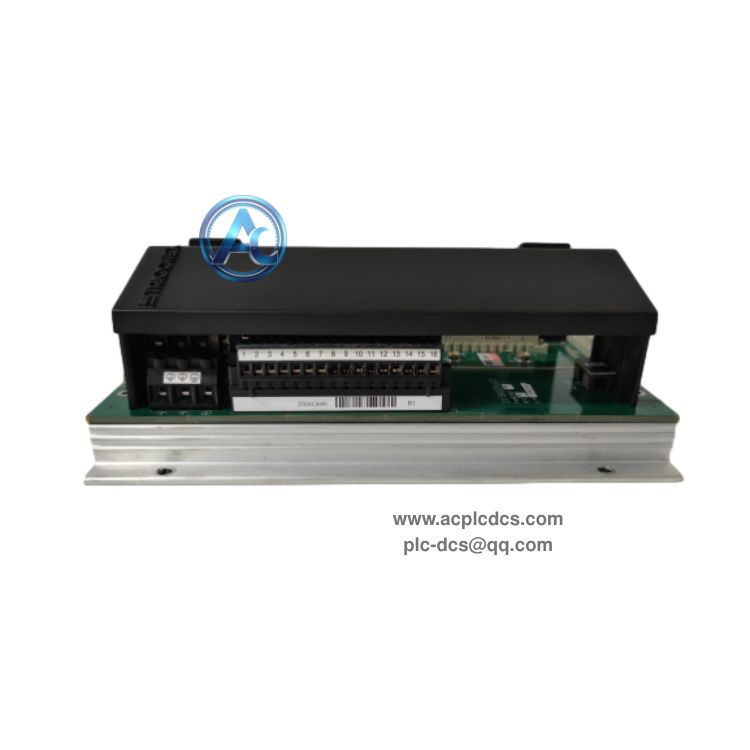

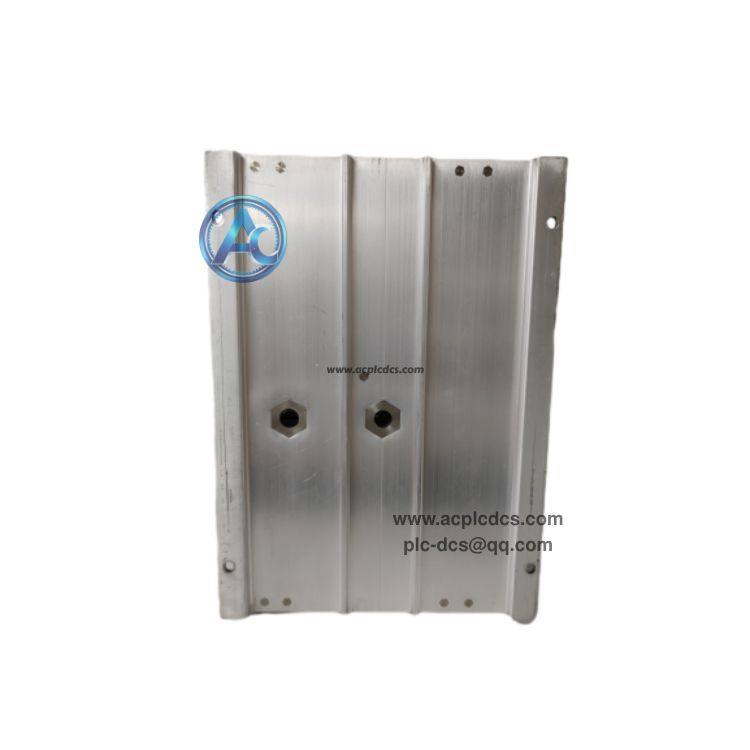

TRICONEX 2401 16-Channel Digital Output Module

TRICONEX 2401 is a 16-channel isolated digital output module for Tricon triple modular redundant safety instrumented system. It outputs safety on/off commands to field solenoid valves, relays and indicators for emergency shutdown and safety interlock control.

This module adopts TMR triple voting fault-tolerant architecture, with comprehensive channel diagnostic and line monitoring functions. It supports online hot swap without stopping the SIS system, widely used as spare replacement for petrochemical, power and chemical safety control cabinet maintenance and renovation projects.

Data Parameters

• 1. Brand: TRICONEX.

• 2. Model: 2401.

• 3. Product Type: 16-Channel Digital Output Module.

• 4. System Architecture: Triple Modular Redundant (TMR).

• 5. Safety Level: IEC 61508 SIL3 certified.

• 6. Rated Output Voltage: 24V DC, sink/source configurable.

• 7. Continuous Current: 2A per channel, peak 5A for short pulse.

• 8. Operating Temperature: -40℃ ~ +70℃.

• 9. Feature: Support online hot swap replacement.

• 10. Compatible System: Tricon TMR SIS safety rack system.

Core Functions

• 1. Receive safety logic commands and output discrete switch signals to field actuators.

• 2. TMR triple channel voting to guarantee high reliability of safety output signals.

• 3. Built-in loop self-test to detect wire break, short circuit and output channel faults.

• 4. Support hot swap maintenance without interrupting the running safety instrumented system.

• 5. Execute emergency trip output to cut off equipment when safety interlock condition triggers.

Application Scenarios

• 1. Oil & gas industry ESD emergency shutdown system spare parts replacement.

• 2. Chemical plant reactor safety interlock control cabinet maintenance and retrofit.

• 3. Power plant boiler and turbine safety protection system renovation project.

• 4. Petrochemical refining SIS safety instrumented system spare parts inventory.

• 5. Legacy Tricon TMR safety automation system overhaul and module renewal.

FAQ

• 1. Q: What is TRICONEX 2401?
      A: It is SIL3 16-channel digital output module for TRICONEX Tricon TMR safety instrumented SIS system.

• 2. Q: What field devices can TRICONEX 2401 drive?
      A: It can drive 24V DC solenoid valves, safety relays and status indicator lights in safety loops.

• 3. Q: What safety standard does TRICONEX 2401 comply with?
      A: It meets IEC 61508 standard and obtains SIL3 safety certification for safety-critical industrial applications.
