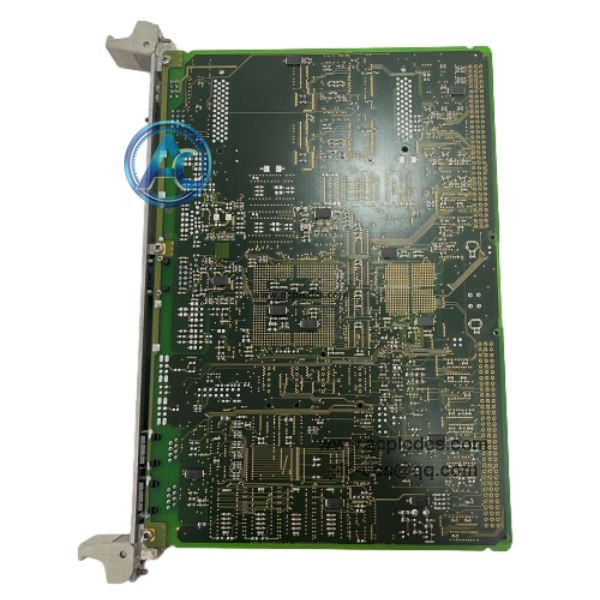

ABB 500CPU05 1MRB150081R1/E AC800M CPU Processor Module in stock

ABB 500CPU05 1MRB150081R1/E is the core CPU processor module for ABB AC800M control system. It executes control logic programs, processes I/O signals and performs real-time calculation, serving as the central computing unit for rack-level automation control.

This module is equipped with onboard memory, multi-bus interfaces and continuous hardware self-diagnosis. It can cooperate with CIM, BIO and various I/O modules, widely used in power plant control cabinet maintenance, spare replacement and industrial automation renovation projects.

Data Parameters

• 1. Brand: ABB.

• 2. Model: 500CPU05, Part Number:1MRB150081R1/E.

• 3. Product Type: CPU Processor Module.

• 4. Product Series: AC800M Controller System.

• 5. Function: Execute control logic and real-time process calculation.

• 6. Bus: Backplane bus, compatible with CIM and BIO modules.

• 7. Memory: On-board RAM and firmware storage.

• 8. Diagnosis: Watchdog and comprehensive hardware fault detection.

• 9. Mounting: Standard control rack installation.

• 10. Operating Temperature: 0℃ ~ +60℃.

Core Functions

• 1. Run user control programs including PID closed-loop regulation, sequence control and safety interlock logic.

• 2. Receive field signal data from I/O modules via backplane bus and send out control commands.

• 3. Complete real-time calculation of temperature, pressure, flow parameters and system alarm judgment.

• 4. Cooperate with 500CIM05 and 500BIO01 modules to realize fieldbus and remote I/O communication.

• 5. Continuous self-diagnosis; the system will switch to safe state once internal hardware fault is detected.

Application Scenarios

• 1. Thermal power plant AC800M main control cabinet spare replacement.

• 2. Metallurgy industry distributed automation control system upgrade project.

• 3. Pulp & paper factory continuous process control cabinet spare renewal.

• 4. Process industry AC800M control system spare inventory backup.

• 5. Legacy ABB AC800M system aging CPU module replacement project.

FAQ

• 1. Q: What is ABB 500CPU05 1MRB150081R1/E?
      A: It is ABB AC800M core CPU module, responsible for running control logic and processing all rack I/O data.

• 2. Q: Which modules can it work with?
      A: It matches 500CIM05 communication module, 500BIO01 bus interface and series of AC800M I/O modules.

• 3. Q: Can it be hot swapped?
      A: Not hot-swappable. Stop system and implement safety isolation before replacement.
