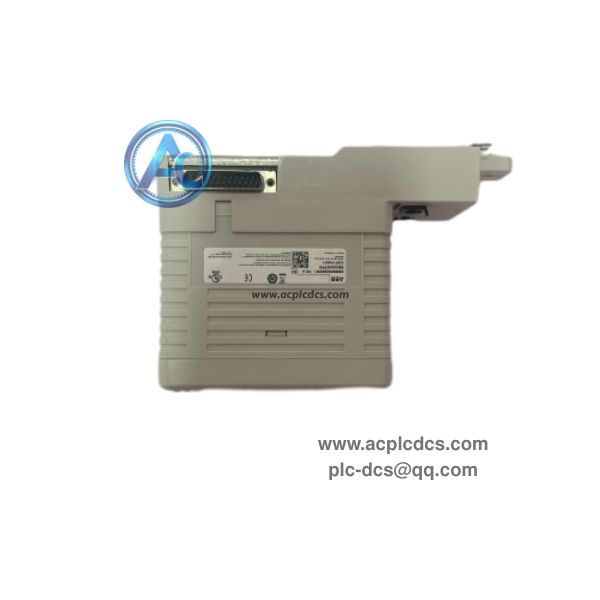

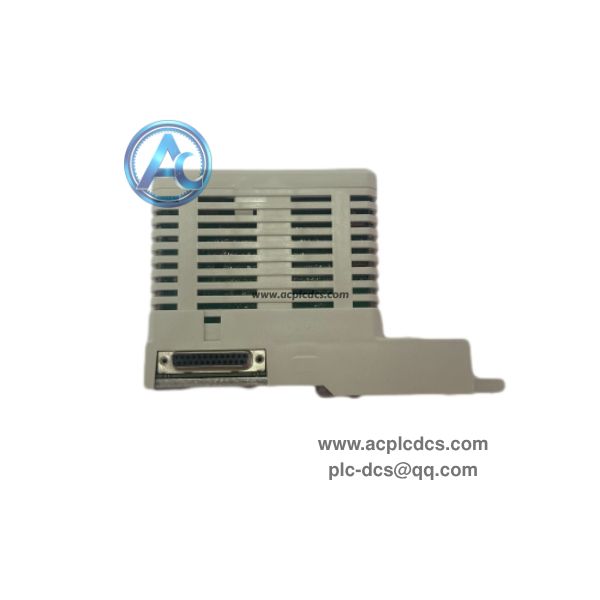

ABB CI871AK01 3BSE092693R1 IO Communication Interface Module in stock

ABB CI871AK01 3BSE092693R1 is a PROFINET IO master communication interface module for ABB AC800M / 800xA DCS system. It establishes the connection between the AC800M controller and PROFINET IO field devices, realizing high-speed cyclic process data exchange.

This module comes with TP867 baseplate, supports 10/100Mbps Ethernet transmission rate and hot-swap function. It can connect PROFINET drives, remote I/O and field instruments, widely used in continuous process automation for factory and power industries.

Data Parameters

• 1. Brand: ABB.

• 2. Model: CI871AK01 3BSE092693R1.

• 3. Product Type: PROFINET IO Master Communication Interface Module.

• 4. Application: AC800M Controller, ABB 800xA DCS System.

• 5. Feature: PROFINET IO master, 10/100Mbps, hot swap support.

• 6. Characteristic: Dual Ethernet port, online bus diagnosis.

• 7. Communication: PROFINET IO, controller backplane bus.

• 8. Matching Baseplate: TP867.

• 9. Mounting: Rack slot installation in S800 I/O rack.

• 10. Operating Temperature: 0℃ ~ +60℃.

Core Functions

• 1. Act as PROFINET IO master to scan all IO slave devices on the bus segment.

• 2. Transmit control commands from AC800M controller to field PROFINET devices.

• 3. Upload field feedback data, status and fault signals back to DCS controller.

• 4. Detect slave offline, network interruption and communication abnormal alarms.

• 5. Support online device configuration and bus troubleshooting under 800xA platform.

Application Scenarios

• 1. Chemical, pulp & paper and water treatment 800xA DCS control cabinet.

• 2. Production line with PROFINET frequency converters and remote I/O stations.

• 3. Power plant auxiliary control system and industrial automation projects.

• 4. ABB AC800M system bus expansion, maintenance and spare replacement.

• 5. PROFINET IO communication spare parts inventory backup.

FAQ

• 1. Q: What is ABB CI871AK01 3BSE092693R1?
      A: It is a PROFINET IO master interface module for AC800M / 800xA DCS.

• 2. Q: What baseplate does it use?
      A: It is equipped with TP867 baseplate as the matching assembly.

• 3. Q: What is the difference between CI871 and CI868?
      A: CI871 for PROFINET IO; CI868 is for IEC61850 communication protocol.
