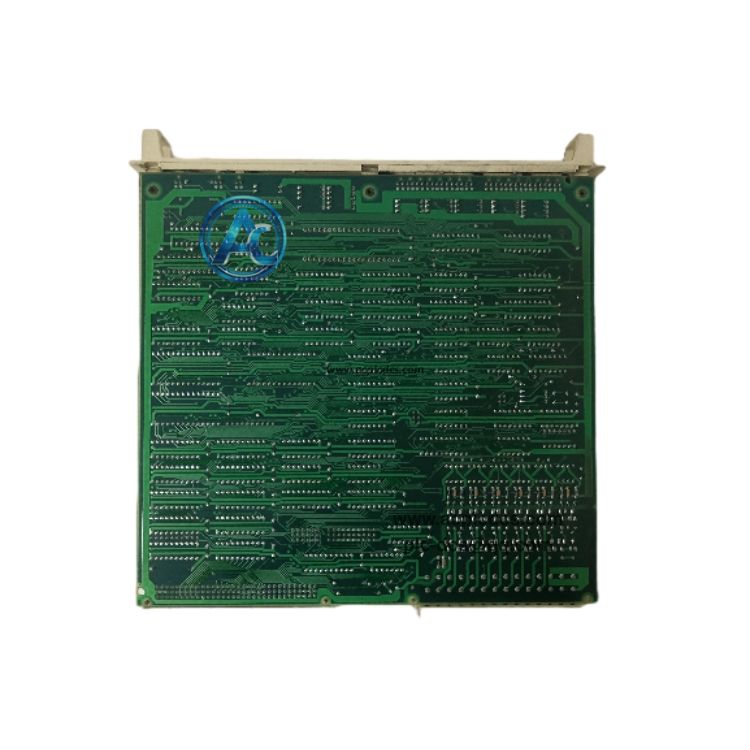

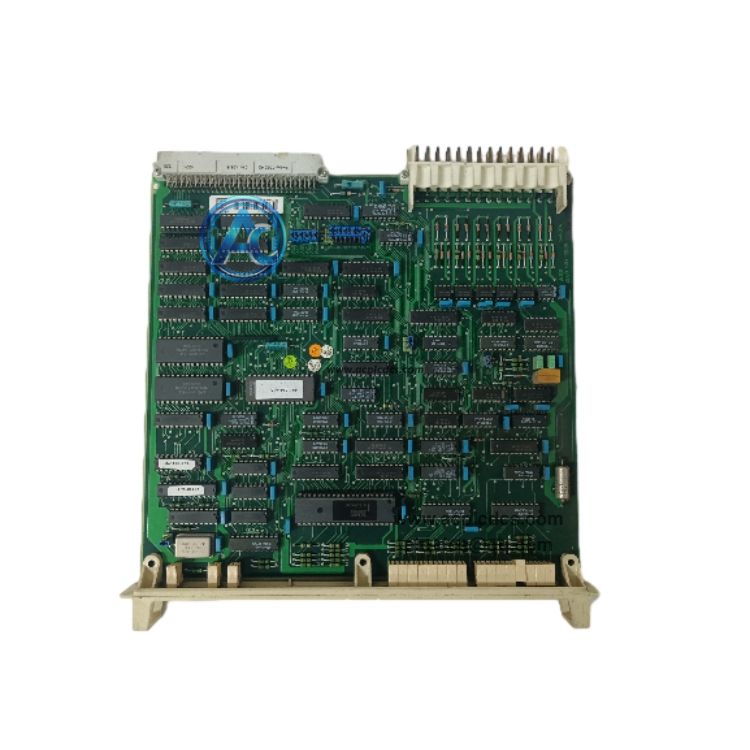

ABB DSCS131 57310001-LM Master Fieldbus Communication Unit in stock

ABB DSCS131 57310001-LM is a master fieldbus communication unit for ABB Advant Master DCS control system. It establishes fieldbus connection to realize data communication between the DCS controller and various field smart instruments and actuators.

This rack plug-in communication board supports redundant operation design, which greatly improves system reliability. It is widely used as spare parts for old Advant Master system maintenance, cabinet transformation and on-site emergency replacement.

Data Parameters

• 1. Brand: ABB.

• 2. Model: DSCS131.

• 3. Part No: 57310001-LM.

• 4. Product Type: Master Fieldbus Communication Unit.

• 5. Compatible System: ABB Advant Master DCS.

• 6. Function Position: Fieldbus master communication interface.

• 7. Main Function: Fieldbus data interaction with field devices.

• 8. Mounting Style: Rack plug-in board for DCS cabinet.

• 9. Operation Mode: Support redundant configuration.

• 10. Application: Industrial distributed control system.

Core Functions

• 1. Act as fieldbus master station to connect smart field instruments and actuators.

• 2. Complete bidirectional real-time data transmission between DCS controller and field devices.

• 3. Support redundant running to avoid communication interruption caused by single point failure.

• 4. Collect field measurement signals and send control commands to on-site equipment.

• 5. Monitor fieldbus communication status and report network faults to the control system.

Application Scenarios

• 1. Power plant ABB Advant Master DCS system maintenance and spare parts replacement.

• 2. Petrochemical plant distributed control system renovation and upgrade.

• 3. Pulp and paper industry old Advant control cabinet retrofit project.

• 4. Metallurgical process control system fieldbus signal acquisition.

• 5. On-site emergency spare parts for legacy ABB Advant control system.

FAQ

• 1. Q: What is ABB DSCS131 57310001-LM used for?
      A: It is a master fieldbus communication unit for ABB Advant Master DCS, used to connect the controller and field smart devices through fieldbus.

• 2. Q: Which control system is DSCS131 compatible with?
      A: It is dedicated for ABB Advant Master distributed control system as fieldbus master communication module.

• 3. Q: What is the main advantage of DSCS131 communication unit?
      A: It supports redundant configuration, provides stable fieldbus communication and reduces the risk of system communication failure.
