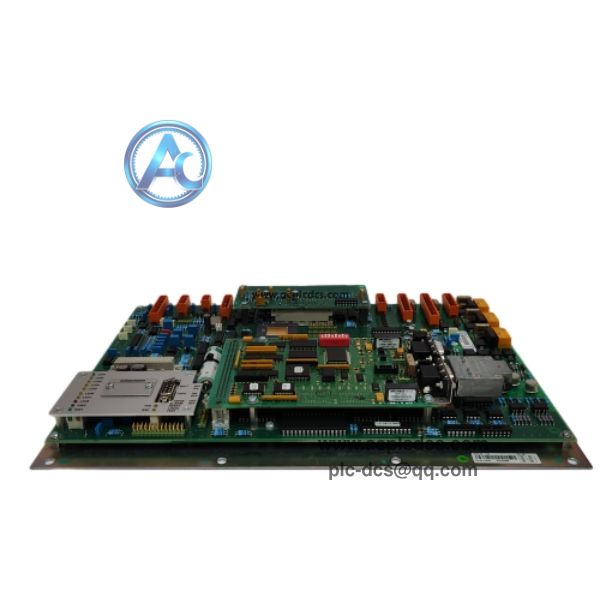

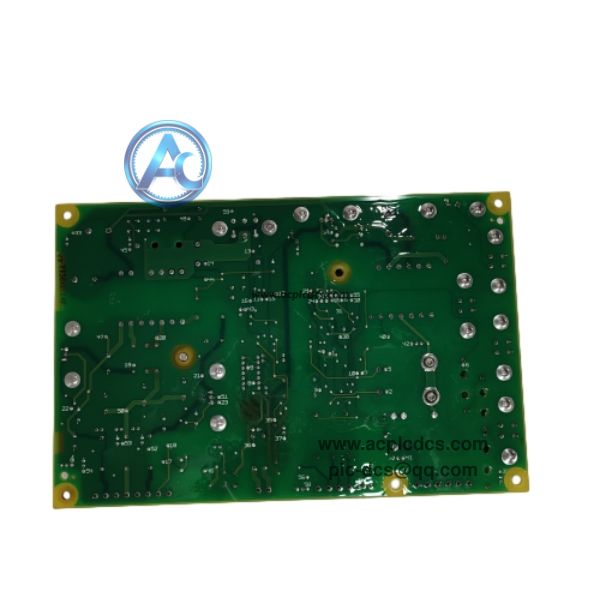

ABB DTCC901B 61430001-FU Digital Terminal Control Module in stock

ABB DTCC901B 61430001-FU is a digital terminal control module used for ABB industrial control and drive systems. It is responsible for digital signal acquisition, logic processing and signal transmission between field terminals and main control unit.

This module features isolated digital channels and built-in fault self-diagnosis function. It supports stable data interaction through the backplane bus, widely used as maintenance spare for ABB old control cabinets in power and metallurgy industries.

Data Parameters

• 1. Brand: ABB.

• 2. Model: DTCC901B 61430001-FU.

• 3. Product Type: Digital Terminal Control Module.

• 4. Application: ABB Industrial Drive & Control System Rack.

• 5. Feature: Isolated digital I/O channels, built-in self-diagnosis.

• 6. Characteristic: High anti-interference, stable signal transmission.

• 7. Communication: Internal rack backplane bus interface.

• 8. Package: Original control module assembly.

• 9. Mounting: Slot plug-in installation inside control cabinet.

• 10. Operating Temperature: -10℃ ~ +70℃.

Core Functions

• 1. Collect and receive digital switching signals from field equipment terminals.

• 2. Transmit control logic commands issued by the main controller to field side.

• 3. Monitor channel status and report open/short circuit fault information.

• 4. Realize signal isolation to protect mainboard from external interference.

• 5. Synchronize digital status data with the main control board via backplane bus.

Application Scenarios

• 1. Power plant auxiliary equipment and excitation control cabinet.

• 2. Metallurgy, mining medium voltage drive and rectifier control system.

• 3. ABB legacy control rack transformation, overhaul and spare replacement.

• 4. Industrial heavy-duty equipment digital signal acquisition and output control.

• 5. ABB digital terminal control spare parts inventory backup.

FAQ

• 1. Q: What is ABB DTCC901B 61430001-FU?
      A: It is an ABB digital terminal control module for digital signal processing.

• 2. Q: Can it be mixed with other ABB series boards?
      A: It must be used in its matched rack, not universal for other series.

• 3. Q: Is this module still in active production?
      A: It belongs to discontinued legacy spare, mainly for maintenance replacement.
