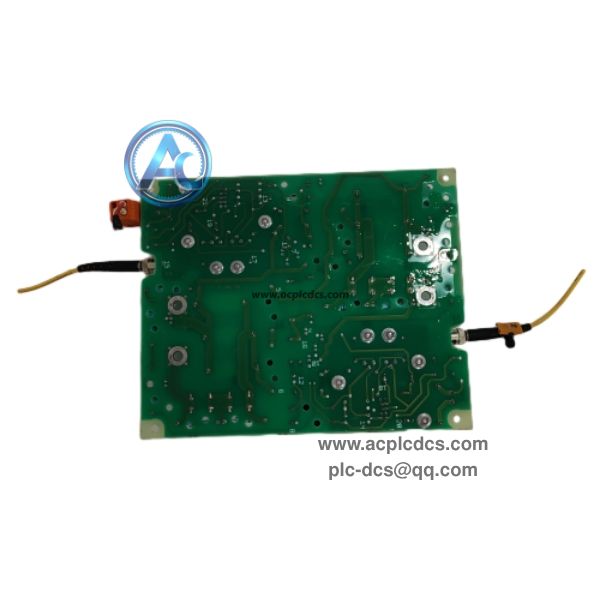

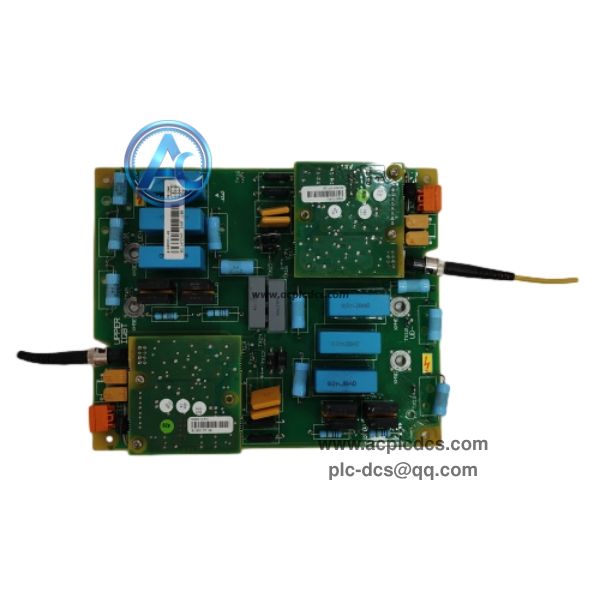

ABB DYSF118B 61430001-XG Signal Interface Board in stock

ABB DYSF118B 61430001-XG is a signal interface board matching the DTCC series control rack. It is responsible for signal conversion and isolation transmission between the main control board and field I/O signals, working together with DTCC901B and DYPS154C to form a complete control rack.

This board integrates signal isolation, filtering and level conversion circuits, with built-in channel fault diagnosis function. It has strong anti-interference ability, it is a legacy spare for ABB old excitation and medium voltage converter control cabinets.

Data Parameters

• 1. Brand: ABB.

• 2. Model: DYSF118B 61430001-XG.

• 3. Product Type: Signal Interface Board.

• 4. Application: DTCC series control rack, excitation & converter system.

• 5. Feature: Signal isolation, level conversion and noise filtering.

• 6. Characteristic: Channel self-diagnosis, high EMC performance.

• 7. Communication: Rack internal backplane bus interface.

• 8. Matching Modules: DTCC901B, DYPS154C.

• 9. Mounting: Plug-in slot installation inside control cabinet.

• 10. Operating Temperature: -10℃ ~ +70℃.

Core Functions

• 1. Isolate and convert field input/output signals for the DTCC control module.

• 2. Filter noise interference to ensure stable signal transmission.

• 3. Detect open circuit and short circuit faults of each signal channel.

• 4. Realize electrical isolation between field side and main control circuit.

• 5. Transmit status and fault feedback to the rack main control logic.

Application Scenarios

• 1. Power plant synchronous generator excitation control cabinet.

• 2. Metallurgy medium voltage rectifier and converter control system.

• 3. ABB DTCC rack complete set maintenance and spare replacement.

• 4. Heavy industry old automation cabinet signal conditioning spare.

• 5. ABB legacy interface board spare parts inventory backup.

FAQ

• 1. Q: What is ABB DYSF118B 61430001-XG?
      A: It is a dedicated signal interface board for ABB DTCC series control rack.

• 2. Q: Can it run alone without DTCC901B?
      A: No, it must be used together with the supporting DTCC rack components.

• 3. Q: Is this board still in production?
      A: It is discontinued, only supplied for on-site maintenance replacement.
