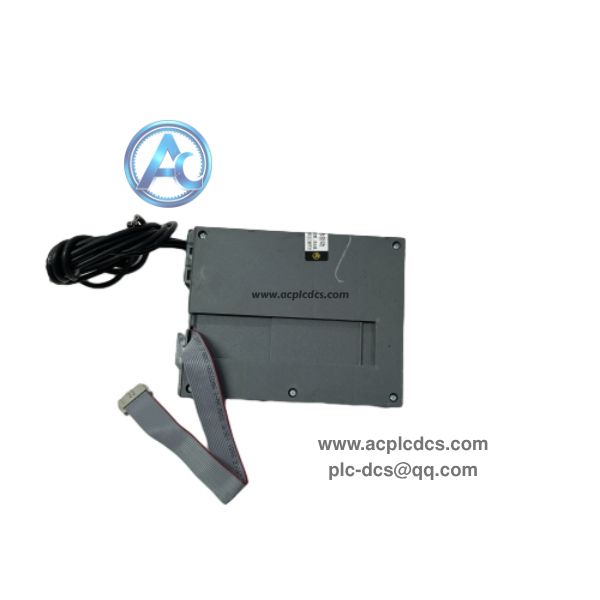

ABB INSUMMCU2 MCU2A02V24 Motor Control Unit in stock

ABB INSUMMCU2 MCU2A02V24 is a motor control and protection unit for ABB INSUM motor management system. It performs real-time monitoring, protection and control functions for low-voltage motors in industrial plants.

This unit supports comprehensive motor protection functions and analog output, with 24V DC power supply. Widely used in power, chemical and pulp & paper DCS system maintenance, spare replacement and control system retrofit projects.

Data Parameters

• 1. Brand: ABB.

• 2. Model: INSUMMCU2, Part No:MCU2A02V24.

• 3. Product Type: Motor Control Unit.

• 4. Application: ABB INSUM low voltage motor management system.

• 5. Feature: Multi-function motor monitoring & protection.

• 6. Characteristic: Built-in analog output for local meter display.

• 7. Supply Voltage: 24V DC.

• 8. Package: DIN rail / cubicle mount module.

• 9. Mounting: Installed inside motor control center cubicle.

• 10. Operating Temperature: 0℃ ~ +60℃.

Core Functions

• 1. Real-time monitoring of motor current, voltage, power and operation status.

• 2. Provide full motor protection: overload, stall, phase loss, earth fault and unbalance protection.

• 3. Support 4-20mA analog output to transmit measured current value to local panel meter.

• 4. Store motor running data, fault records and diagnostic information for troubleshooting.

• 5. Communicate with upper DCS system to realize remote start, stop and status feedback.

Application Scenarios

• 1. Power plant INSUM motor control center spare replacement.

• 2. Petrochemical plant low voltage motor protection cabinet maintenance.

• 3. Pulp and paper mill motor control system upgrade project.

• 4. Heavy industry motor management spare parts inventory backup.

• 5. Old MCC motor protection and monitoring channel renewal and retrofit.

FAQ

• 1. Q: What is ABB INSUMMCU2 MCU2A02V24?
      A: It is ABB INSUM series motor control unit, used for monitoring and protecting low-voltage motors inside motor control centers.

• 2. Q: What protection can this unit provide?
      A: It covers overload, stall, phase loss, earth fault, current unbalance and thermistor motor protection.

• 3. Q: What is its power supply?
      A: This MCU model works with 24V DC power supply.
