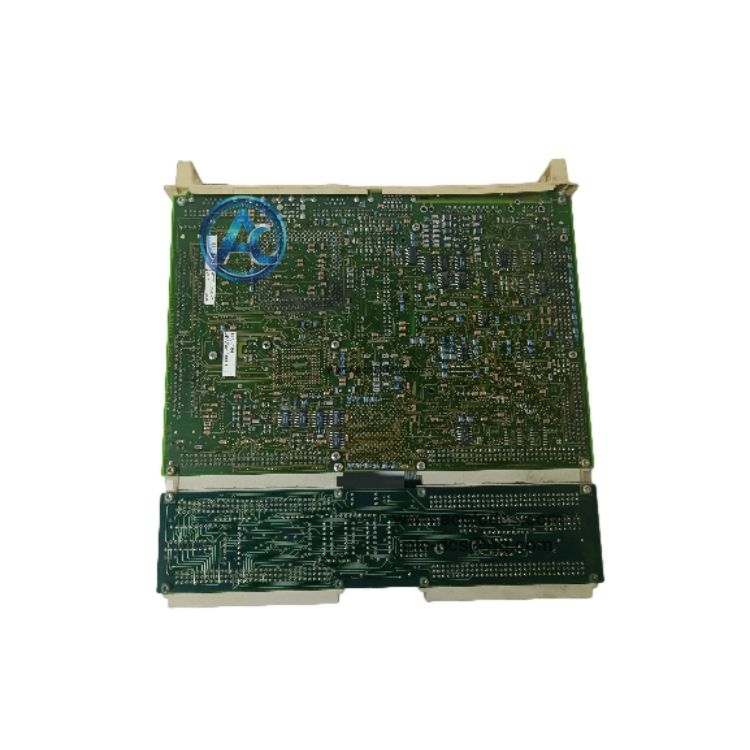

ABB PFSK164 3BSE021180R1 F-Slave Communication Module in stock

ABB PFSK164 3BSE021180R1 is a safety communication module designed for ABB AC800M High Integrity safety controller system. It supports PROFIsafe protocol over PROFIBUS DP bus to realize safe data transmission between the main safety controller and field safety I/O devices.

This module complies with IEC61508 SIL3 safety standard, equipped with 9-pin D-Sub PROFIBUS interface and automatic baud rate detection function. It is widely used as spare replacement part for power, chemical and pulp & paper safety control cabinet maintenance and retrofit projects.

Data Parameters

• 1. Brand: ABB.

• 2. Model: PFSK164, Part No:3BSE021180R1.

• 3. Product Type: PROFIsafe PROFIBUS F-Slave Safety Communication Module.

• 4. Applicable Controller: ABB AC800M High Integrity safety controller.

• 5. Safety Level: IEC61508 SIL3 certified.

• 6. Communication Protocol: PROFIBUS DP-V1 with PROFIsafe profile.

• 7. Interface: 9-pin D-Sub female PROFIBUS connector.

• 8. Baud Rate: 9.6 kbps ~ 12 Mbps, auto detection.

• 9. Power Supply: Powered by AC800M controller backplane.

• 10. Operating Temperature: 0℃ ~ +60℃.

Core Functions

• 1. Act as PROFIsafe F-Slave to exchange safety-related control data with AC800M safety controller.

• 2. Transmit safety input signals from field safety I/O modules to the main controller through PROFIBUS bus.

• 3. Receive safety output commands from controller and forward to field safety actuators with safety check mechanism.

• 4. Real-time diagnosis of PROFIBUS communication status, cable fault and safety channel abnormal condition.

• 5. Support safe data verification and watchdog mechanism to prevent invalid or corrupted safety signal transmission.

Application Scenarios

• 1. Power plant safety instrumented system AC800M rack communication module spare replacement.

• 2. Chemical plant SIL3 safety control system PROFIBUS safe communication network maintenance project.

• 3. Pulp and paper factory high integrity process safety control cabinet retrofit and upgrade.

• 4. Oil & gas industry safety interlock system PROFIsafe bus communication unit spare inventory.

• 5. Legacy ABB AC800M safety DCS system overhaul and safety module replacement.

FAQ

• 1. Q: What is ABB PFSK164 3BSE021180R1?
      A: It is ABB PROFIsafe PROFIBUS F-Slave safety communication module for AC800M high integrity safety controller system.

• 2. Q: What safety standard does this module meet?
      A: It complies with IEC61508 standard and supports SIL3 safety applications for safety instrumented systems.

• 3. Q: What bus interface does PFSK164 adopt?
      A: It uses PROFIBUS DP-V1 bus with 9-pin D-Sub connector and supports PROFIsafe safety communication profile.
