Products Description

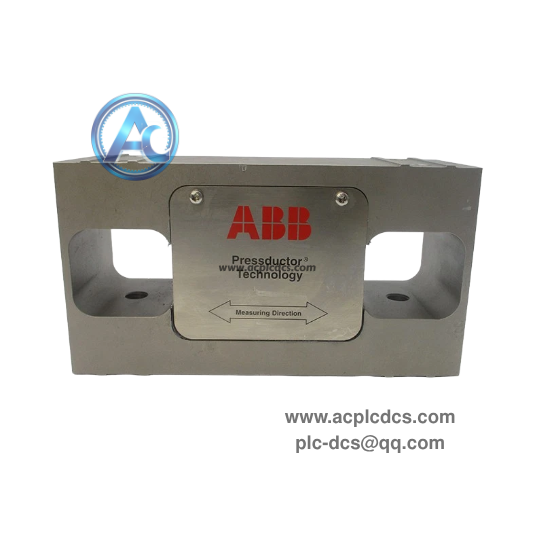

ABB PFTL101A 2.0KN 3BSE004172R1 Pressure Weight Sensor in stock
ABB PFTL101A 2.0KN 3BSE004172R1 is a tension/force load cell sensor used for roll force measurement in industrial rolling systems. It converts mechanical force into standard electrical signal for real-time force monitoring and closed-loop control.
This sensor adopts strain gauge measuring principle with rated capacity 2.0KN. It is a discontinued legacy spare, widely used for maintenance replacement of metallurgy rolling mill force measuring systems.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | ABB |
| 2 | Model | PFTL101A 2.0KN, 3BSE004172R1 |
| 3 | Module Type | Roll Force Load Cell / Force Sensor |
| 4 | Rated Force | 2.0 KN |
| 5 | Measurement Principle | Strain gauge |
| 6 | Working Temperature | 0 ~ +70°C |
| 7 | Status | Discontinued legacy spare part |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Precisely measure roll force and convert mechanical load into analog electrical signal |
| 2 | Provide real-time force feedback for rolling mill closed-loop thickness control |
| 3 | Monitor overload force to protect rolling mechanical equipment from damage |
| 4 | High stability strain gauge structure for long-term continuous industrial measurement |
| 5 | Transmit measured signal to ABB controller for data processing and display |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Metallurgical rolling mill roll force measurement system |
| 2 | Metal strip thickness closed-loop control production line |
| 3 | Tension and load monitoring for metal processing equipment |
| 4 | Legacy metallurgy automation system spare replacement |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q: What is ABB PFTL101A 2.0KN 3BSE004172R1? A: It is ABB roll force load cell sensor with 2.0KN rated load, used for force detection on metallurgical rolling mills. |
| 2 | Q: What is the function of this load cell? A: It measures rolling force and sends feedback signal to control system to keep metal strip thickness stable. |
| 3 | Q: Is this sensor available new? A: This model is discontinued, only surplus or used spare parts available for maintenance. |
