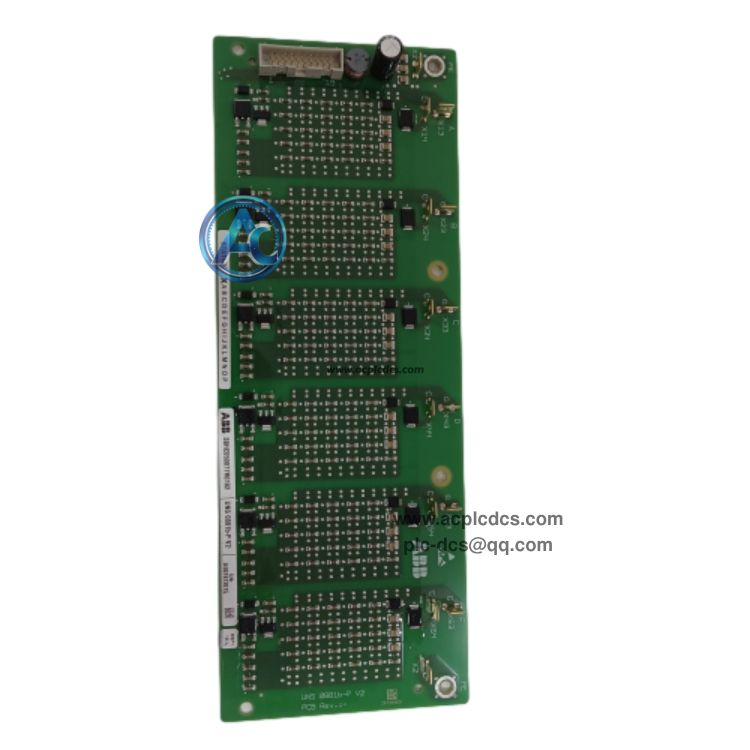

ABB UNS0881B-P V2 3BHE050077R0102 GDI Gate Drive Interface Board in stock
ABB UNS0881B-P V2, part number 3BHE050077R0102, is an upgraded GDI gate drive interface PCB for ABB UNITROL series generator static excitation systems. It transmits trigger pulses and feedback signals between the main excitation controller and power semiconductor devices.
This V2 version enhances circuit stability and fault diagnosis capability compared with UNS0881A-P. It provides electrical isolation between low voltage control logic and high power excitation unit, commonly used as spare parts for power plant UNITROL excitation cabinets.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | ABB |
| 2 | Model | UNS0881B-P V2, Part No:3BHE050077R0102 |
| 3 | Module Type | GDI Gate Drive Interface Board |
| 4 | Application System | UNITROL Series Static Excitation System |
| 5 | Core Task | Gate pulse transmission, isolation and power device fault feedback |
| 6 | Compatible Device | IGBT power modules inside excitation power unit |
| 7 | Mounting | Rack mounted inside excitation cabinet power unit |
| 8 | Version | V2 upgraded revision of UNS0881A-P |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Receive pulse control signals from excitation main controller and convert to gate trigger signals for IGBTs |
| 2 | Implement high voltage isolation between low-voltage control board and high-power excitation power circuit |
| 3 | Collect power device working status and fault feedback, send alarm signals back to main controller |
| 4 | Detect drive circuit short and open circuit faults, trigger rapid interlock protection to protect power modules |
| 5 | Synchronize switching sequence of power semiconductors to guarantee stable excitation current output |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Power plant UNITROL static excitation cabinet for steam turbine and gas turbine generators |
| 2 | Hydropower station large synchronous generator excitation power unit control system |
| 3 | Combined cycle power plant generator voltage regulation and excitation control |
| 4 | Excitation cabinet overhaul, GDI board replacement and on-site emergency maintenance |
| 5 | Power plant spare parts inventory for UNITROL excitation system upgrade and maintenance |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is ABB UNS0881B-P V2 3BHE050077R0102? A:It is upgraded V2 GDI gate drive interface board for UNITROL excitation system, used to drive IGBT power modules and collect fault feedback signals. |
| 2 | Q:What is the difference between UNS0881A-P and UNS0881B-P V2? A:UNS0881B-P V2 is the upgraded version with improved circuit anti-interference and enhanced fault detection performance. |
| 3 | Q:What is its position in excitation system? A:It acts as the bridge between excitation main control board and high-power IGBT power unit for pulse driving and signal isolation. |
