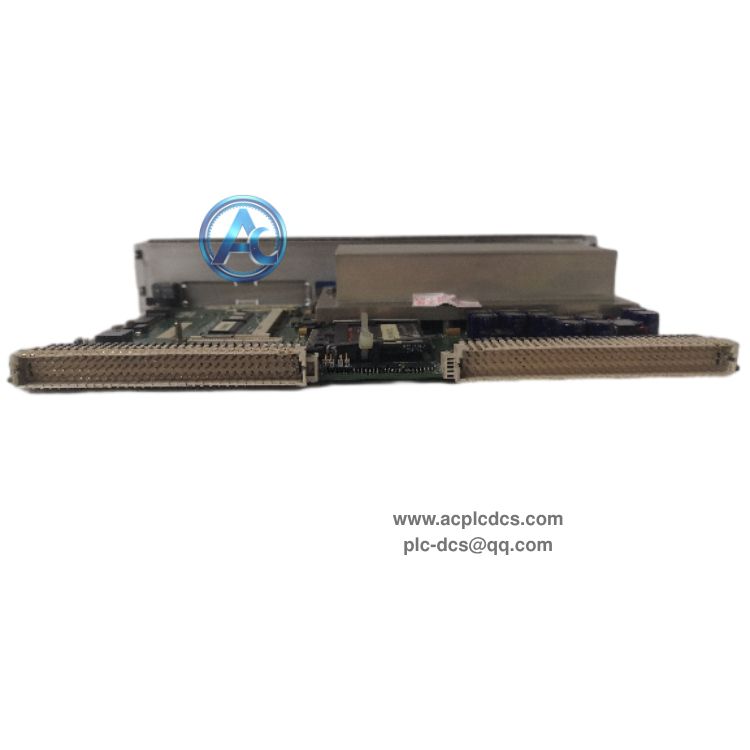

GE IS215UCVFH2BB VMIVME-7650-83H VME Single Board in stock

GE IS215UCVFH2BB VMIVME-7650-83H is a rugged VME bus single board computer specially developed for GE Mark VI Speedtronic turbine control system. It acts as UCV main controller to execute turbine control logic, collect field measurement signals and complete high-speed data interaction with other rack modules.

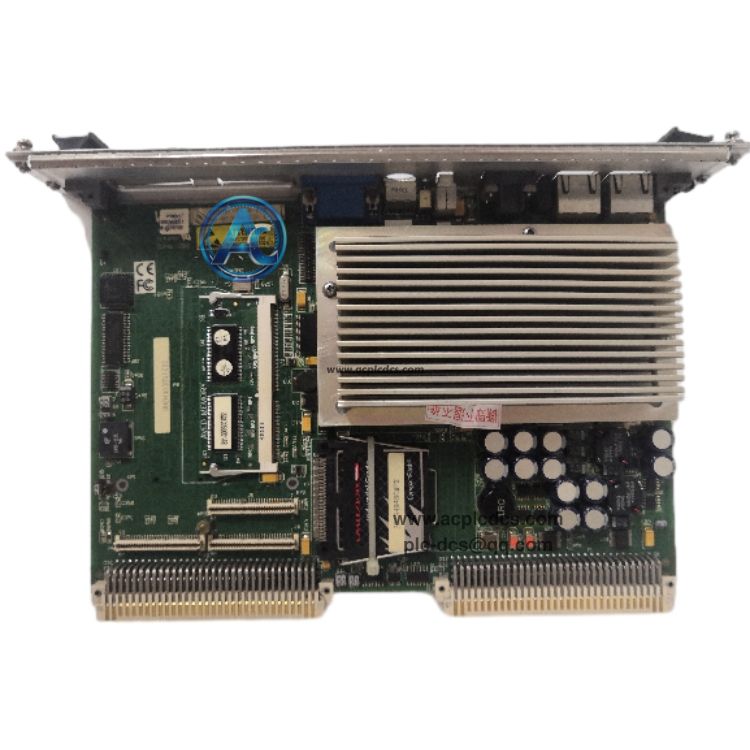

This dual-slot VME board integrates high-speed processor, flash storage and multiple communication interfaces, supporting redundant network operation. It is widely used as spare replacement part for gas turbine, steam turbine control cabinet maintenance and old power plant control system renovation projects.

Data Parameters

• 1. Brand: GE General Electric.

• 2. Model: IS215UCVFH2BB, VMIVME-7650-83H.

• 3. Product Type: VME Bus Single Board Computer / UCV Controller.

• 4. Applicable System: GE Mark VI Speedtronic turbine control system.

• 5. Processor: Intel Pentium 850MHz.

• 6. Memory: 32MB DRAM + 128MB Flash memory.

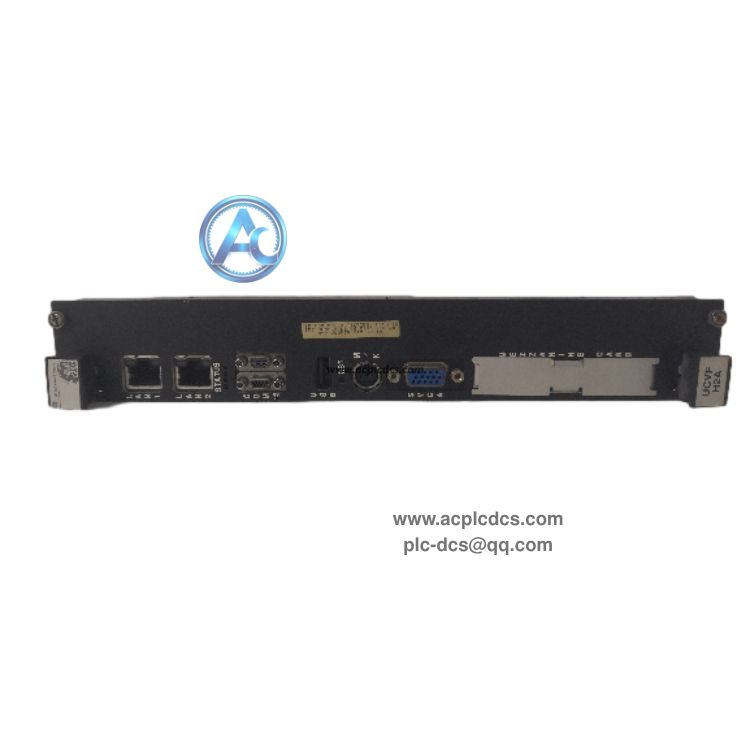

• 7. Communication: Dual Ethernet, 2×Serial COM, VGA and USB port.

• 8. Power Supply: 52V DC.

• 9. Mounting: Dual slot VME rack plug-in installation.

• 10. Operating Temperature: -20℃ ~ +70℃.

Core Functions

• 1. Run core turbine control algorithm, speed regulation, load control and protection logic for Mark VI system.

• 2. Real-time data exchange through VME backplane bus with I/O modules and signal conditioning boards.

• 3. Dual Ethernet redundant communication to transmit operation data, alarm and event records to HMI workstation.

• 4. Built-in self-diagnosis function to detect board hardware fault and communication abnormality and trigger alarm.

• 5. VGA and serial maintenance port support on-site parameter configuration, firmware upgrade and fault troubleshooting.

Application Scenarios

• 1. Power plant gas turbine and steam turbine Mark VI control rack main controller replacement.

• 2. Power generation unit turbine protection, speed monitoring and load regulation control cabinet.

• 3. Heavy industry combined cycle power plant control system spare parts inventory and maintenance.

• 4. Oil & gas power station turbine automation control and safety interlock system.

• 5. Legacy GE Mark VI Speedtronic system upgrade, retrofit and component replacement project.

FAQ

• 1. Q: What is GE IS215UCVFH2BB VMIVME-7650-83H?
      A: It is a VME single board computer UCV controller for GE Mark VI turbine control system, responsible for executing turbine control logic and data processing.

• 2. Q: What system does this module belong to?
      A: It belongs to GE Mark VI Speedtronic turbine control platform, widely used for gas and steam turbine control in power plants.

• 3. Q: Does it support redundant network?
      A: Yes, it has dual Ethernet ports, which can realize redundant network communication and improve the reliability of turbine control system.
