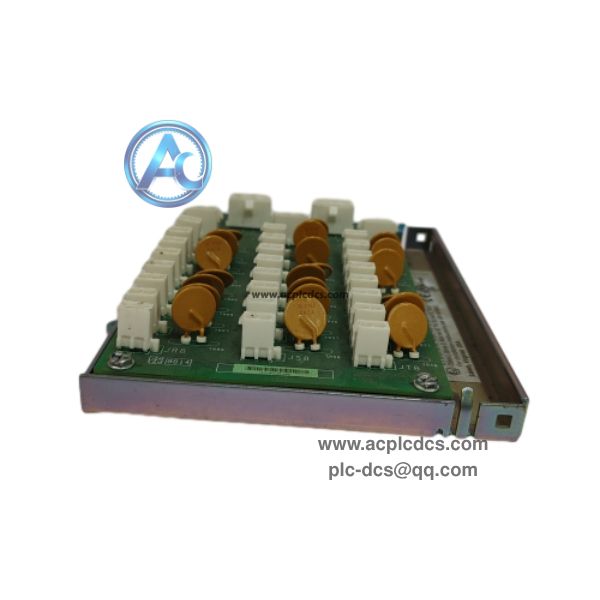

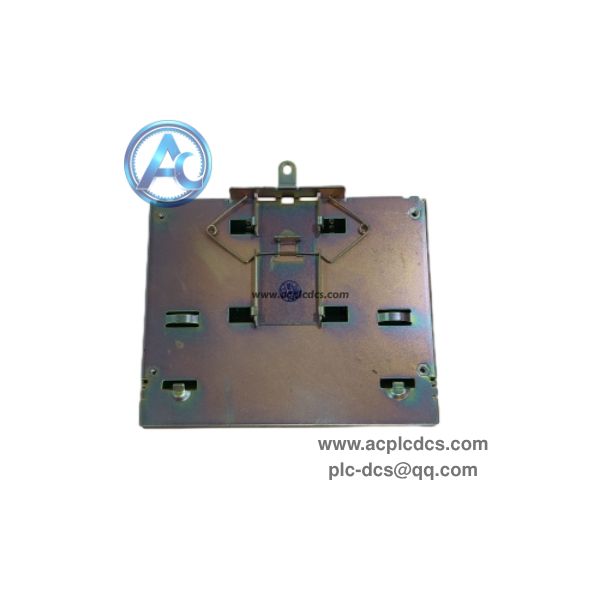

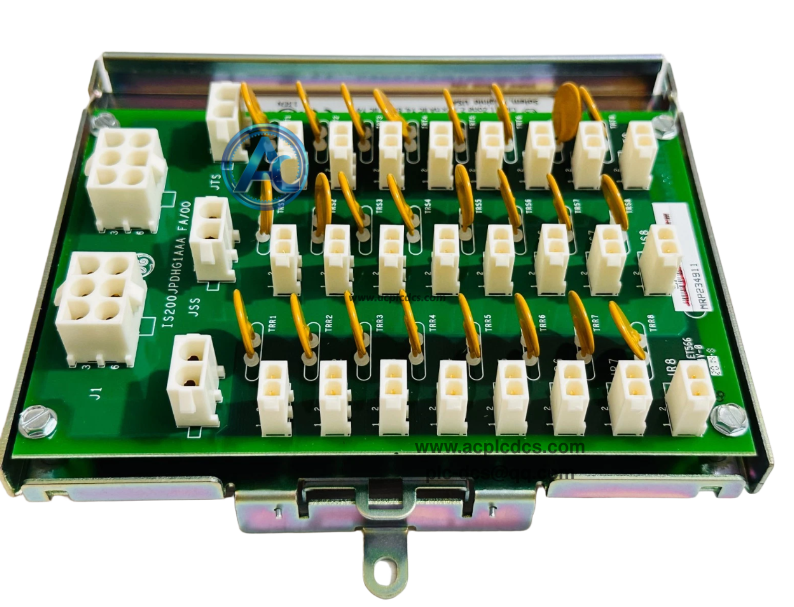

GE IS410JPDHG1A Power Distribution Module in stock

GE IS410JPDHG1A is a high-density power distribution module for GE Mark VIe / Mark VIeS Speedtronic turbine control system, belonging to JPDG PDM series. It provides 28VDC control power and I/O wetting power distribution for I/O packs and network switches.

This module adopts dual redundant power input design and independent PTC fuse protection for each branch. It supports power status diagnosis, and can cooperate with IS420PPDAH1B to upload power fault information to the controller. It is suitable for hazardous area with Ex ec IIC T4 Gc certification.

Data Parameters

• 1. Brand: GE.

• 2. Model: IS410JPDHG1A.

• 3. Product Type: High Density Power Distribution Module (PDM).

• 4. Application: Mark VIe / Mark VIeS Turbine Control System.

• 5. Feature: Dual redundant 28VDC input, branch PTC self-resetting fuse.

• 6. Characteristic: Ex ec IIC T4 Gc hazardous location certification.

• 7. Communication: Diagnostic interface matched with PPDA I/O pack.

• 8. Package: Original DIN rail module assembly.

• 9. Mounting: DIN rail installation inside control cabinet.

• 10. Operating Temperature: 0℃ ~ +65℃.

Core Functions

• 1. Distribute control power and contact wetting power for Mark VIe I/O packs.

• 2. Supply power for system Ethernet switches and auxiliary control components.

• 3. Isolate fault branches to prevent single-point fault from affecting the whole system.

• 4. Real-time monitor voltage and current of each power branch for alarm diagnosis.

• 5. Support dual power redundant configuration to improve power supply reliability.

Application Scenarios

• 1. Gas turbine and steam turbine Mark VIeS safety control cabinet.

• 2. Power plant turbine control system power distribution cabinet.

• 3. Oil & gas hazardous area safety instrument control system.

• 4. GE Speedtronic system cabinet retrofit and spare replacement.

• 5. Power industry turbine control spare parts inventory backup.

FAQ

• 1. Q: What is GE IS410JPDHG1A?
      A: It is a high-density power distribution module for Mark VIe / Mark VIeS control system.

• 2. Q: Which diagnostic module matches it?
      A: It cooperates with IS420PPDAH1B power diagnostic I/O pack.

• 3. Q: Can it be used in hazardous area?
      A: Yes, it has Ex ec IIC T4 Gc certification for hazardous locations.
