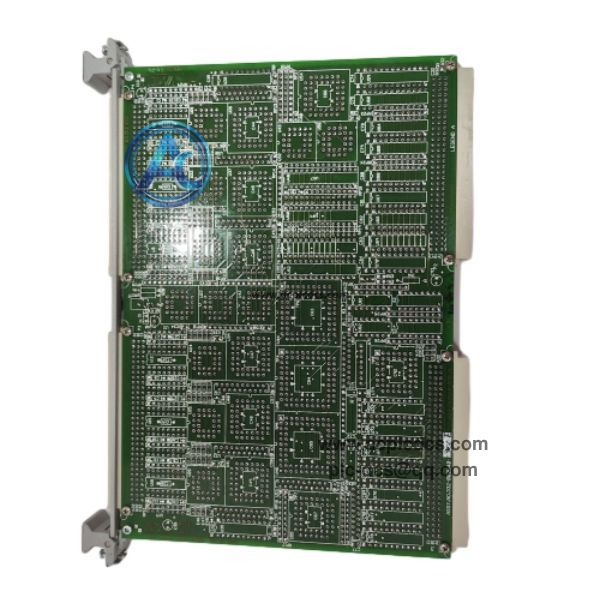

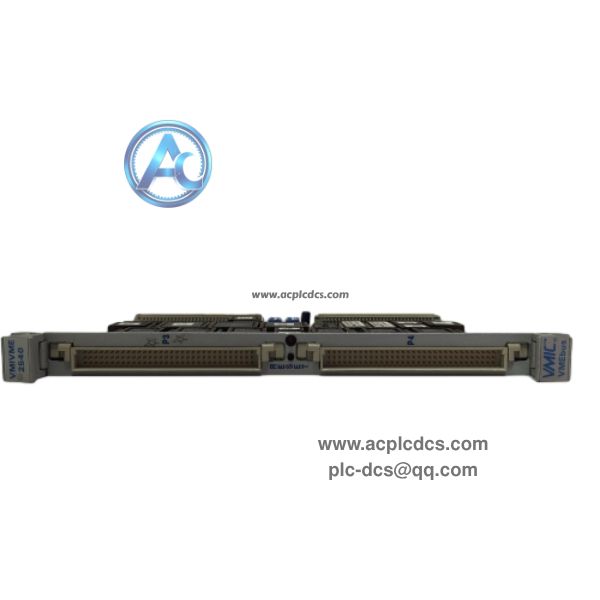

GE VMIVME2540 VME Intelligent Counter Controller Board in stock

GE VMIVME2540 (VMIVME-2540) is a 6U VMEbus intelligent counter controller module originally from VMIC/GE Fanuc, now Abaco Systems. It has 24 independent programmable counting channels, used for high-precision pulse counting, period measurement and pulse generation in VME-based industrial control systems, widely adopted in GE Mark VI turbine control platform.

The board integrates an on-board 68HC000 15MHz processor to handle counting tasks independently and reduce main CPU load. It supports TTL single-ended and RS-422 differential input with strong anti-interference capability. Widely used in power, chemical and pulp & paper turbine control maintenance, spare replacement and control system retrofit projects.

Data Parameters

• 1. Brand: GE VMIC / Abaco Systems.

• 2. Model: VMIVME2540 (VMIVME-2540).

• 3. Product Type: VMEbus Intelligent Counter / Controller Board.

• 4. Application: VME industrial control, GE Mark VI gas & steam turbine control system.

• 5. Feature: 24 programmable channels, on-board 15MHz 68HC000 processor.

• 6. Characteristic: TTL / RS-422 differential input, max input frequency 2.5MHz.

• 7. Bus: VMEbus slave, supports A24/A32, D8/D16/D32.

• 8. Package: Standard 6U VME plug-in board assembly.

• 9. Mounting: Installed in VME rack slot of turbine control cabinet.

• 10. Operating Temperature: 0℃ ~ +60℃.

Core Functions

• 1. High-speed pulse counting, period, pulse width and frequency measurement for speed and position sensors.

• 2. Generate pulse output signals for motion control and speed regulation of turbine auxiliary equipment.

• 3. Onboard firmware processes counting tasks independently and exchanges data via VME backplane bus.

• 4. Accept single-ended TTL or differential RS-422 encoder / pulse signals with noise filtering.

• 5. Built-in hardware self-test function to monitor channel status and report faults to main controller.

Application Scenarios

• 1. Power plant Mark VI turbine control rack pulse counting board spare replacement.

• 2. Petrochemical plant turbocompressor speed measurement cabinet maintenance project.

• 3. Pulp and paper mill turbogenerator speed & position monitoring system upgrade.

• 4. Heavy industry VME bus high precision measurement spare parts inventory backup.

• 5. Aging VME counter controller board renewal and retrofit project.

FAQ

• 1. Q: What is GE VMIVME2540?
      A: It is a 24-channel intelligent counter controller VME board, commonly used in GE Mark VI turbine control for speed and pulse signal acquisition.

• 2. Q: What signal types can it receive?
      A: It supports single-ended TTL and differential RS-422 encoder pulse input signals.

• 3. Q: Can it be hot swapped?
      A: Hot swap is not permitted. Cut off rack power supply before inserting or removing this VME board.
