GE WEA13-13 2508-21001 Isolated Analog Output Module in stock

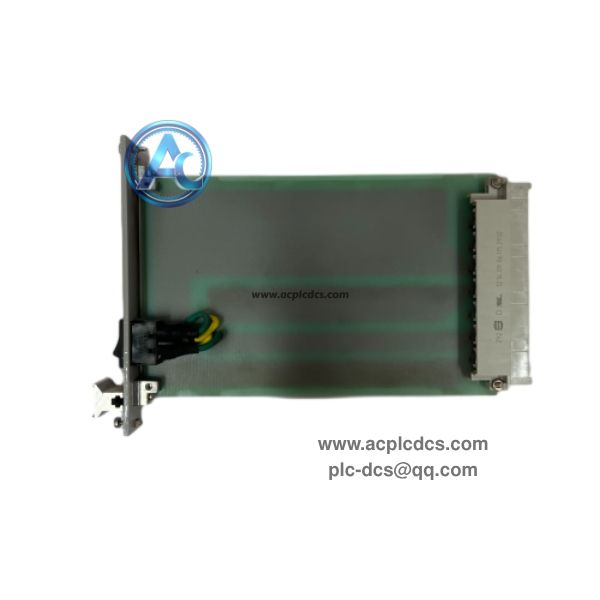

GE WEA13-13 2508-21001 (also marked WES13-3) is an isolated analog output module for GE industrial control system. It converts digital control signals into standard analog signals for valve actuators, regulators and field control loops.

This rack-mounted module adopts electrical isolation design to suppress on-site interference, supports stable 4-20mA and 0-10V signal output. It is widely used for spare replacement and maintenance of power, petrochemical and metallurgy DCS control racks.

Data Parameters

• 1. Brand: GE.

• 2. Model: WEA13-13, 2508-21001 (WES13-3).

• 3. Product Type: Isolated Analog Output Module.

• 4. Application: GE distributed control and process regulation system.

• 5. Feature: Galvanic isolation, 12-bit precision, standard analog signal output.

• 6. Characteristic: Rack plug-in structure, anti-interference for heavy industrial environment.

• 7. Communication: Backplane bus communication with main controller.

• 8. Package: Complete plug-in module with front panel and terminal connectors.

• 9. Mounting: Standard industrial control chassis rack installation.

• 10. Operating Temperature: -40℃ ~ +85℃.

Core Functions

• 1. Receive digital setpoint commands from main controller and convert to analog control signals.

• 2. Provide isolated 4-20mA / 0-10V output to drive regulating valves and actuators.

• 3. Isolate field side noise and surge to protect the internal control backplane.

• 4. Real-time self-check of output channel, trigger alarm for open circuit and overload fault.

• 5. Cooperate with other I/O boards to realize closed-loop regulation of process parameters.

Application Scenarios

• 1. Power plant DCS control rack analog output spare replacement and maintenance.

• 2. Petrochemical pipeline and reactor regulating loop control renovation project.

• 3. Metallurgy continuous production line process signal control spare inventory backup.

• 4. Old GE analog control rack isolation upgrade and anti-interference transformation.

• 5. Water treatment and chemical plant automatic adjustment cabinet renewal.

FAQ

• 1. Q: What is GE WEA13-13 2508-21001?
      A: It is an isolated analog output module, also known as WES13-3, for GE industrial control rack.

• 2. Q: What signal can it output?
      A: It mainly outputs 4-20mA and 0-10V analog control signals for field actuators.

• 3. Q: Can it be hot swapped while system is running?
      A: Cut off rack power before replacement to avoid process control fluctuation.
