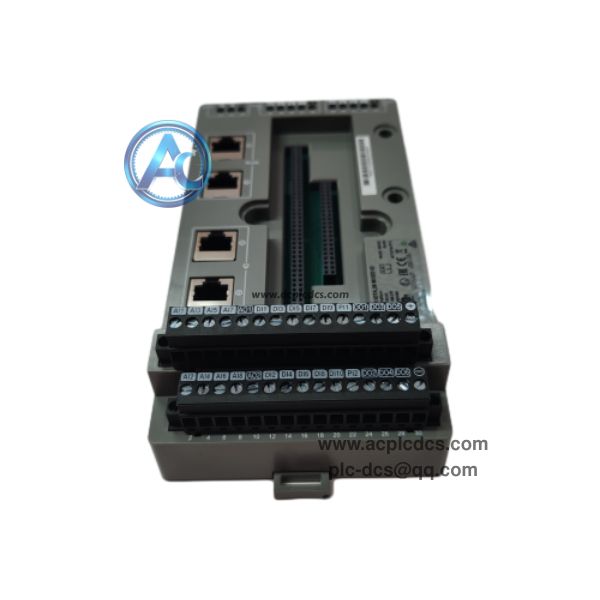

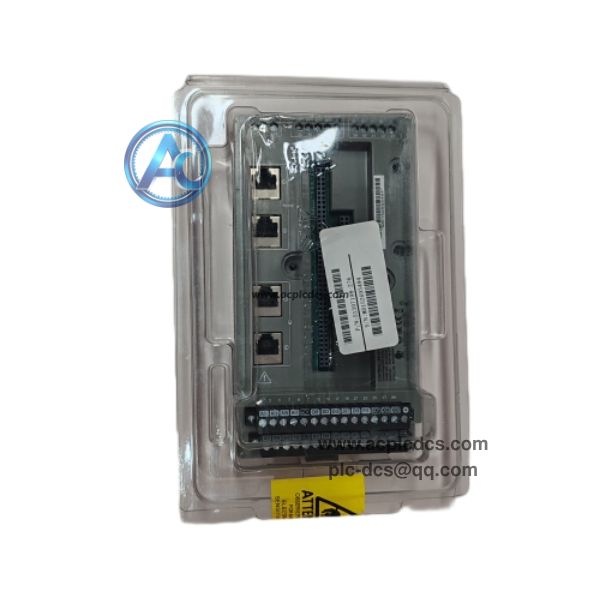

Honeywell SC-UCMX02 51307198-276 RTU Controller Module in stock

Honeywell SC-UCMX02 51307198-276 is a high-performance non-redundant main controller for Honeywell ControlEdge RTU 2020 platform. It acts as the core processing unit of remote terminal unit, executing control logic, collecting field I/O signals and communicating with upper host system.

This controller supports multiple industrial communication protocols and can expand matched IOM modules. It features strong anti-interference and wide working voltage design, widely used in oil & gas pipeline, water treatment and remote field station automation spare replacement.

Data Parameters

• 1. Brand: Honeywell.

• 2. Model: SC-UCMX02, Part No: 51307198-276.

• 3. Product Type: ControlEdge RTU Main Controller Module.

• 4. Application: ControlEdge RTU 2020 remote terminal unit system.

• 5. Feature: Non-redundant CPU, support expansion of multiple IOM modules.

• 6. Characteristic: Multiple protocol support, built-in fault self-diagnosis.

• 7. Power Supply: 24VDC, voltage range 18 ~ 30VDC.

• 8. Package: Complete controller module for RTU rack.

• 9. Mounting: Standard ControlEdge rack slot installation.

• 10. Operating Temperature: -40℃ ~ +70℃.

Core Functions

• 1. Run user control logic program to realize automatic regulation of field equipment.

• 2. Collect analog and discrete signals from remote sensors and transmitters.

• 3. Support Modbus, DNP3 and other common industrial communication protocols.

• 4. Diagnose controller and expansion IOM faults and upload alarm information.

• 5. Transmit real-time field data to SCADA host monitoring system.

Application Scenarios

• 1. Oil and gas long-distance pipeline remote monitoring RTU station.

• 2. Water supply, sewage and pumping station automatic control system.

• 3. Remote unattended field measurement and control cabinet.

• 4. Honeywell ControlEdge RTU system maintenance and spare replacement project.

• 5. RTU main controller spare inventory backup for remote field stations.

FAQ

• 1. Q: What is Honeywell SC-UCMX02 51307198-276?
      A: It is the core non-redundant main controller for Honeywell ControlEdge RTU 2020 system.

• 2. Q: What communication protocols does it support?
      A: It supports mainstream protocols such as Modbus and DNP3 for SCADA connection.

• 3. Q: Can it expand I/O modules?
      A: Yes, it can be matched with a variety of IOM expansion modules to increase signal channels.
