Products Description

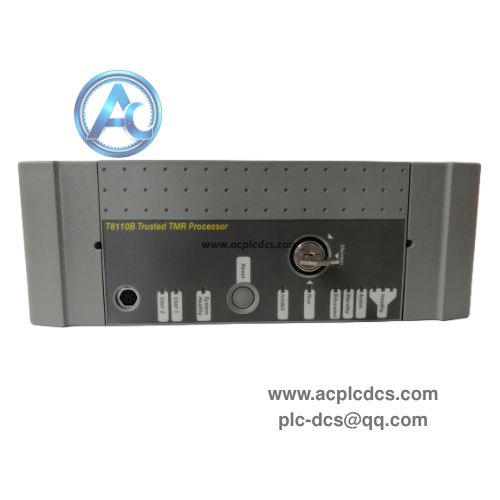

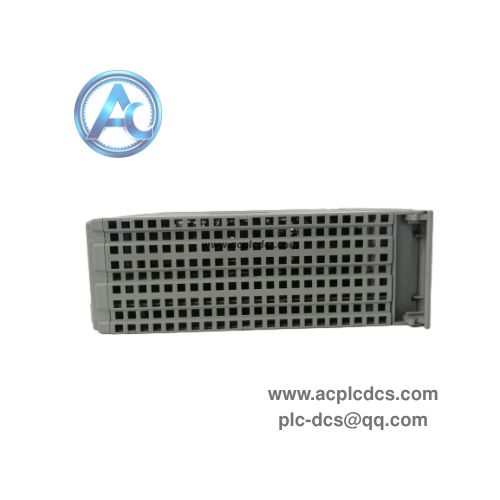

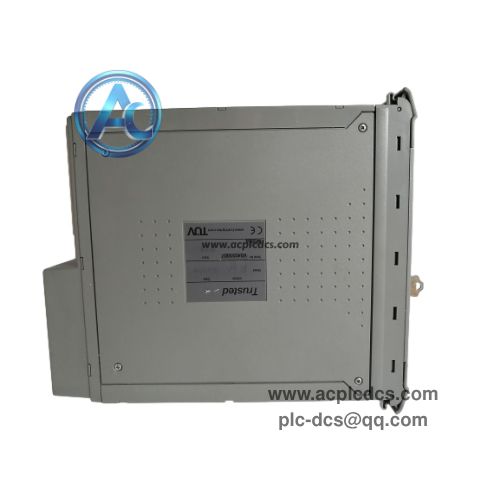

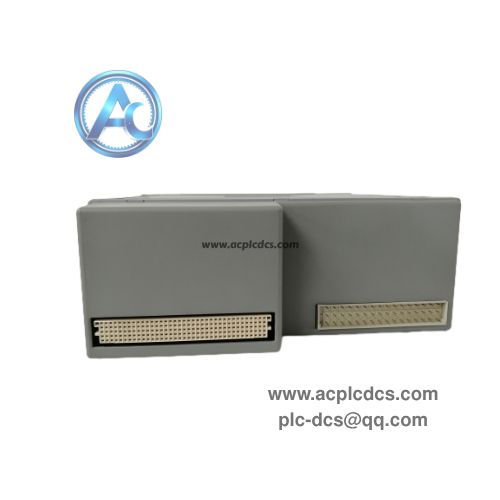

ICS TRIPLEX T8110B Trusted TMR Processor Module in stock
ICS TRIPLEX T8110B is the core triple modular redundant processor for the Trusted safety instrumented system. It adopts TMR fault-tolerant 3-2-0 architecture, executing safety control logic and performing hardware voting to eliminate single point of failure for critical industrial safety systems.
This safety processor supports hot swap replacement and IEC 61131-3 programming standard. It is widely used as spare parts for emergency shutdown, fire & gas protection and turbine safety control in oil & gas, chemical and power generation industries.
Main Specifications
| Brand & Model | Brand: ICS TRIPLEX; Model: T8110B; Series: Trusted SIS System |
| Type | TMR Safety Processor Module |
| Architecture | Triple Modular Redundant (TMR), 3-2-0 fault tolerant |
| Power Supply | 20~32V DC, dual redundant power input |
| Compatible Chassis | T8100 series Trusted system chassis |
| Operating Temperature | 0℃ ~ +60℃, industrial safety grade |
Core Functions
| Safety Logic Execution | Run safety control logic following IEC 61131-3 for SIS safety protection. |
| TMR Hardware Voting | 2-out-of-3 hardware voting to detect faults and avoid single point failure. |
| Inter-Module Communication | Exchange data with I/O modules via triple redundant inter-module bus. |
| Hot Swap Support | Online module replacement without system shutdown or program reload. |
| Fault Diagnosis & Logging | Real-time self-diagnosis and time-stamped fault event historian recording. |
| Diagnostic Port | Front RS232 port for configuration, programming and system debugging. |
Application Scenarios
| Trusted SIS Safety Cabinet | Main processor for ICS TRIPLEX Trusted safety instrumented systems. |
| Emergency Shutdown (ESD) | Emergency trip protection for oil, gas and chemical process plants. |
| Fire & Gas System | Fire and gas detection and safety interlock control for hazardous areas. |
| Turbine Safety Control | Safety interlock and protection for gas and steam turbines in power plants. |
| System Maintenance | Spare replacement for Trusted system overhaul and fault repair. |
| SIL3 Safety Retrofit | Safety system upgrade projects for high-risk industrial process units. |
FAQ
| Question | Answer |
| What is ICS TRIPLEX T8110B? | It is a TMR safety processor module for ICS TRIPLEX Trusted SIS safety instrumented system. |
| What is TMR architecture? | Triple Modular Redundancy, three independent channels with 2-out-of-3 voting to avoid single point failure. |
| Does it support hot swap? | Yes, it supports online hot swap without stopping the whole safety system. |
