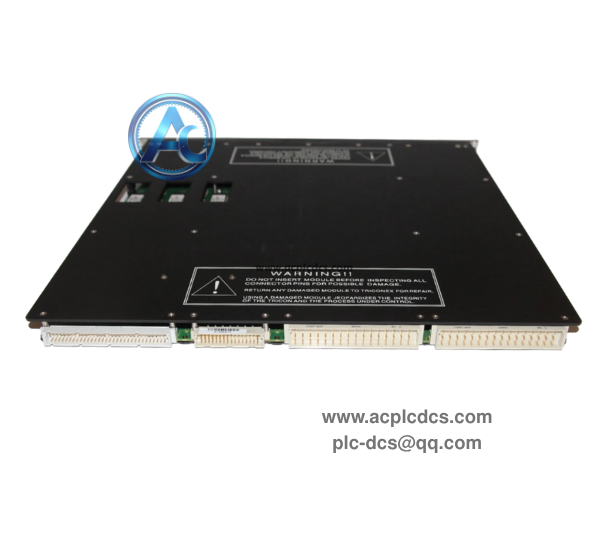

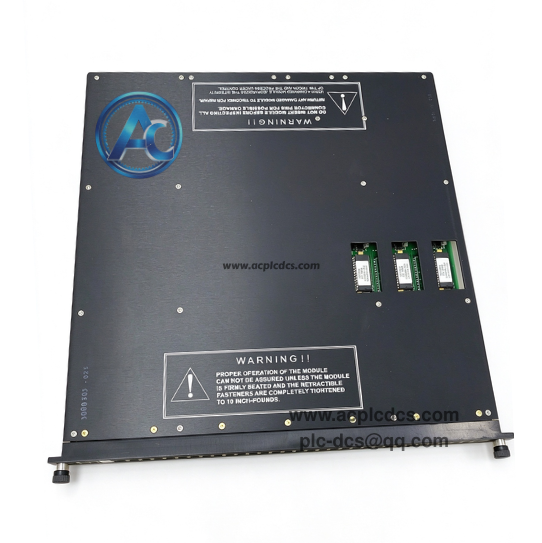

The Triconex 3503E is a safety-grade digital input module for Tricon TMR safety instrumented systems. It acquires discrete 24VDC field signals from limit switches, emergency stop devices and dry-contact sensors, adopting triple-modular-redundant architecture to guarantee high-reliability signal acquisition for safety-critical SIS loops.

This rack-slot mount module supports comprehensive channel diagnostics and front-panel LED status indication. It participates in TMR fault-voting logic, realizes fault tolerance for single-channel failure. It serves as critical aftermarket spare for maintenance, overhaul and retrofitting of oil-gas and chemical-plant SIS safety cabinets.

Main Specifications

1. Brand: Triconex (Schneider); Model:3503E; Type: Safety-grade Digital Input Module

2. Applicable System: Tricon TMR Safety Instrumented System (SIS)

3. Input Signal: 24VDC discrete dry-contact signal; Architecture: Triple Modular Redundancy

4. Function: Field discrete-signal acquisition, TMR fault voting, channel self-diagnosis, fault status reporting

5. Feature: Rack slot-mount installation, safety-certified design, on-board per-channel diagnostic LED indicators

6. Installation: Slot-mount inside Tricon SIS control chassis

7. Power: Back-plane powered; Operating Environment:0℃ ~ +60℃, 5%-95% RH non-condensing

8. Certifications: CE, UL, safety-relevant certification for process-industry SIS applications

Core Functions

1. Collect on-site discrete signals from emergency-stop buttons, limit switches and interlock contact devices.

2. Adopt triple-modular-redundant signal voting mechanism, filter single-channel fault to avoid false triggering of safety logic.

3. Perform continuous self-diagnosis for each input channel, detect open-circuit and hardware failure and send alarm to SIS controller.

4. Transmit valid digital field data to Tricon main processor for safety interlock and emergency shutdown logic calculation.

5. Front-panel LED indicators display channel running and fault status for fast troubleshooting during commissioning and maintenance.

6. Standard slot-in structure supports convenient replacement during SIS cabinet overhaul and on-site safety-loop debugging work.

Application Scenarios

1. Safety-critical digital signal acquisition component for Triconex Tricon SIS safety instrumented systems.

2. Critical spare-part for oil-gas, petrochemical and chemical-plant ESD emergency-shutdown safety cabinets.

3. Retrofit and spare replacement for legacy 3503E digital-input-module SIS-hardware upgrade projects.

4. SIS cabinet overhaul, safety-interlock-loop debugging and faulty safety-input-module replacement tasks.

5. Spare-parts inventory for safety-automation integrators and process-industry engineering contractors.

6. Global aftermarket spare supply for technical teams maintaining Triconex Tricon SIS automation hardware.
