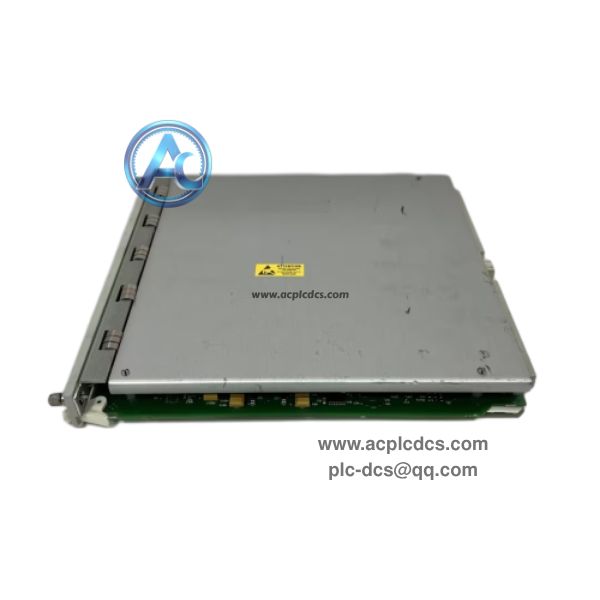

Bently Nevada 3500/22M 138607-01V Transient Data Interface Module

Bently Nevada 3500/22M 138607-01V is the transient data interface module for the 3500 machinery monitoring system. It serves as the main communication gateway of the rack, responsible for data transmission, configuration management and transient waveform acquisition.

This rack-mounted module supports Ethernet and RS485 communication, uploading vibration, speed and displacement data to monitoring software or DCS. It is widely used for spare replacement and maintenance of turbomachinery monitoring racks in power, petrochemical and gas industries.

Data Parameters

• 1. Brand: Bently Nevada.

• 2. Model: 3500/22M, 138607-01V.

• 3. Product Type: Transient Data Interface Module.

• 4. Application: 3500 series machinery protection monitoring rack.

• 5. Feature: Rack master communication, transient waveform capture, fault diagnosis.

• 6. Characteristic: Dual communication ports, rack configuration and status management.

• 7. Communication: Ethernet, RS485 Modbus protocol.

• 8. Package: Rack plug-in module with front status LED indicators.

• 9. Mounting: 3500 standard chassis rack installation.

• 10. Operating Temperature: 0℃ ~ +60℃.

Core Functions

• 1. Manage the whole 3500 rack, synchronize data of all monitoring modules inside the rack.

• 2. Capture transient vibration waveform and fault event data for turbine and compressor analysis.

• 3. Upload real-time machine parameters and alarm information to host monitoring system.

• 4. Receive configuration parameters and update settings for the entire 3500 monitoring rack.

• 5. Provide rack health diagnosis and self-test alarm output for system status check.

Application Scenarios

• 1. Power plant steam turbine 3500 monitoring rack spare replacement and maintenance.

• 2. Petrochemical compressor and pump vibration monitoring system renovation project.

• 3. Natural gas pipeline turbomachinery online protection monitoring cabinet backup.

• 4. Old Bently 3500 series machine protection system upgrade and renewal.

• 5. Metallurgy high-speed rotating equipment condition monitoring spare inventory.

FAQ

• 1. Q: What is Bently Nevada 3500/22M 138607-01V?
      A: It is the transient data interface master module for Bently 3500 machinery monitoring rack.

• 2. Q: What is its core duty?
      A: It handles rack communication, transient waveform capture and centralized configuration management.

• 3. Q: Can it be hot swapped during running?
      A: Cut off rack power before replacement; hot swap will interrupt all rack monitoring data.
