Products Description

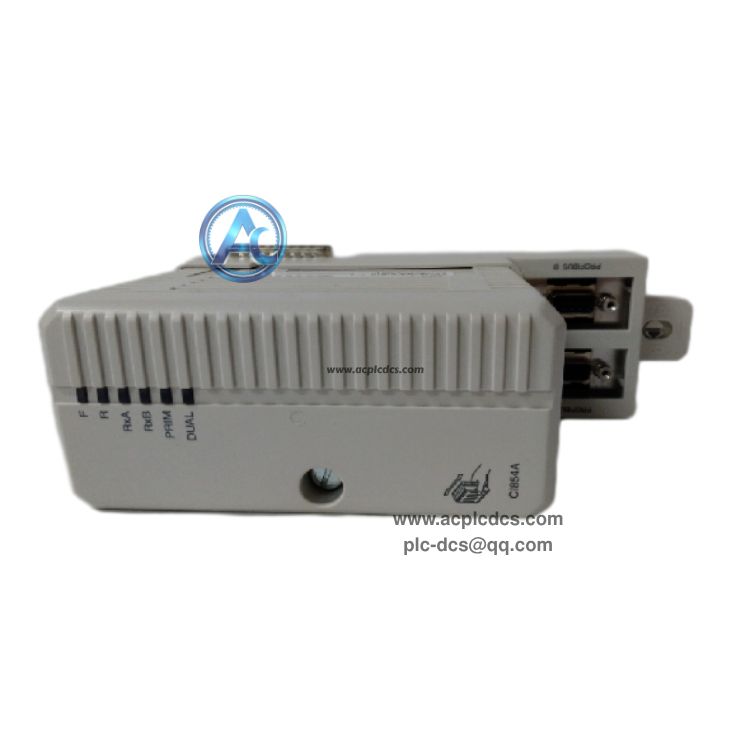

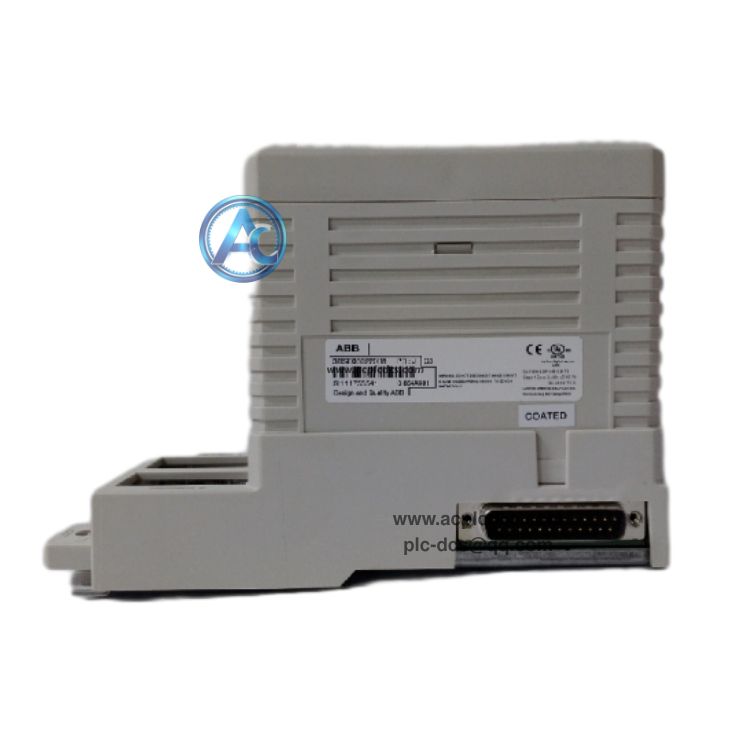

ABB CI854AK01 3BSE030220R1 PROFIBUS-DP/V1 Communication Interface Kit
ABB CI854AK01 (3BSE030220R1) is a PROFIBUS DP-V1 master communication interface kit for ABB AC800M and System 800xA DCS systems. The kit contains CI854A communication module and TP854 baseplate, equipped with dual galvanically isolated PROFIBUS channels for fieldbus networking.
It serves as a bridge between controller CEX bus and PROFIBUS DP field devices, supporting both cyclic real-time data exchange and acyclic parameter access. This legacy unit is mainly used as spare parts for maintenance and retrofit of existing ABB DCS installations.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | ABB |
| 2 | Model | CI854AK01, Order No:3BSE030220R1 |
| 3 | Module Type | PROFIBUS DP-V1 Master Communication Interface Kit |
| 4 | System Platform | AC800M Controller / System 800xA DCS |
| 5 | Communication Protocol | PROFIBUS DP-V0 / DP-V1, IEC 61158 |
| 6 | Data Rate | 9.6 kbit/s ~ 12 Mbit/s, auto baud detection |
| 7 | Ports | 2 × DB9 PROFIBUS ports, galvanic isolation |
| 8 | Max Slave Nodes | Up to 124 PROFIBUS slave devices |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Act as PROFIBUS DP master, realize bidirectional real-time data communication between AC800M controller and fieldbus slaves |
| 2 | Support DP-V1 acyclic services for device diagnosis, parameter read and write operations |
| 3 | Dual isolated PROFIBUS channels, reduce interference from industrial field harsh electromagnetic environment |
| 4 | Connect to controller via CEX bus, hot swap supported for online replacement |
| 5 | Onboard self-diagnosis, detect communication faults and module operating status |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Power plant, pulp and paper, metallurgy DCS control cabinet |
| 2 | Water treatment, chemical industry process automation control system |
| 3 | Connect PROFIBUS drives, remote I/O modules, transmitters and actuators |
| 4 | Legacy ABB System 800xA DCS upgrade, overhaul and spare replacement |
| 5 | Industrial process control with PROFIBUS DP fieldbus network |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What components are included in CI854AK01 kit? A:The complete kit includes CI854A communication module and TP854 baseplate for installation. |
| 2 | Q:Is CI854AK01 recommended for new projects? A:Not recommended for new installations. The updated replacement model is CI854BK01 (3BSE069449R1). |
| 3 | Q:What controller can CI854AK01 work with? A:It is designed for ABB AC800M controller under System 800xA DCS platform, communicating via CEX bus. |
