ABB UFC765AE102 3BHE003604R0102 UNITROL Control Interface Board in stock

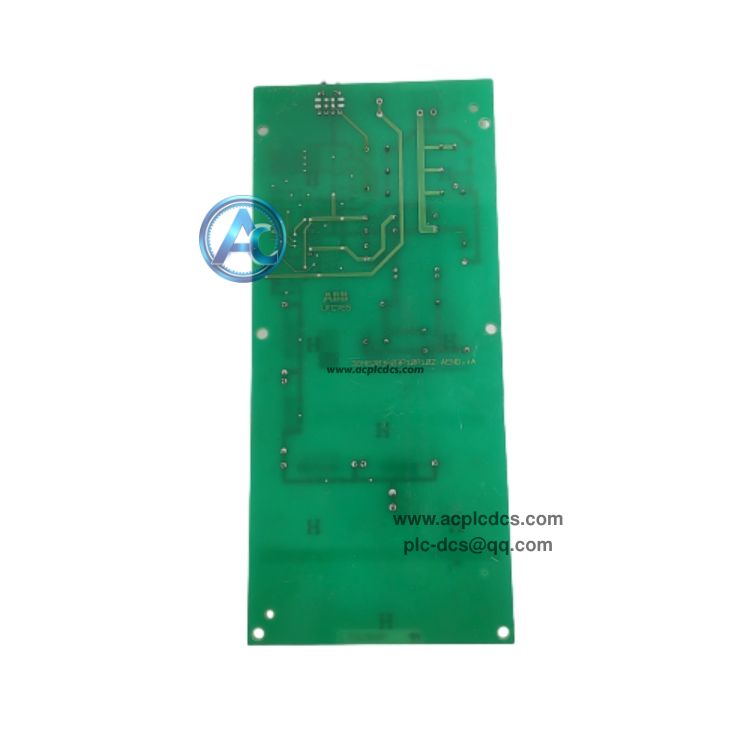

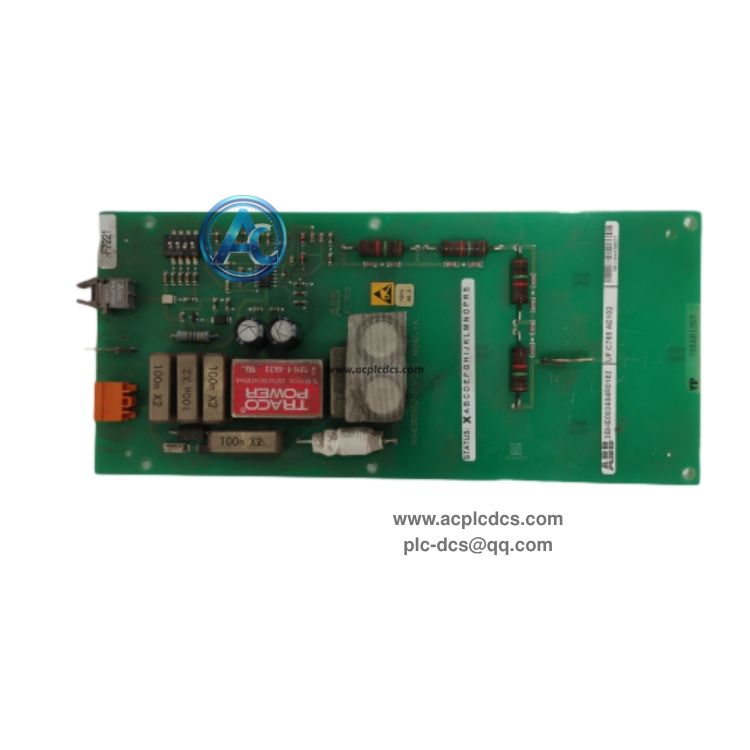

ABB UFC765AE102 (3BHE003604R0102) is a high-speed control interface board designed for ABB UNITROL 6000 excitation system and ACS6000 high voltage drive. It acts as the signal bridge between central control unit and power conversion hardware, adopting FPGA logic and optical fiber DDCS communication.
This board undertakes high-speed signal sampling, command transmission and status feedback. It is widely used for generator excitation control and large high-power motor drive systems, mainly supplied as spare parts for old power and industrial drive cabinet maintenance.
Main Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Brand | ABB |
| 2 | Model | UFC765AE102, Order No:3BHE003604R0102 |
| 3 | Module Type | Control Interface Board |
| 4 | System Platform | UNITROL 6000 Excitation System / ACS6000 HV Drive |
| 5 | Communication | DDCS fiber optic high speed link |
| 6 | Control Logic | FPGA based high-speed real-time logic |
| 7 | Form Factor | Eurocard standard circuit board |
| 8 | Application Field | Generator excitation & high power variable frequency drive |
Core Functions
| No. | Function Description |
|---|---|
| 1 | Realize high-speed optical fiber DDCS communication between main controller and power unit |
| 2 | Transmit control commands to power conversion hardware and collect operating feedback signals |
| 3 | Process high-speed real-time logic for generator excitation and high voltage drive control |
| 4 | Strong anti-interference performance for high EMI industrial power electronic environment |
| 5 | Onboard self-monitoring to detect board fault and communication link abnormality |
Application Scenarios
| No. | Application |
|---|---|
| 1 | Power plant synchronous generator UNITROL 6000 excitation control cabinet |
| 2 | ACS6000 high voltage variable frequency drive for large industrial motors |
| 3 | Mining, metallurgy high-power motor speed regulation system |
| 4 | Power station excitation system overhaul, spare parts replacement |
| 5 | High power power electronic control system with DDCS fiber network |
FAQ
| No. | Question & Answer |
|---|---|
| 1 | Q:What is UFC765AE102 used for? A:It is ABB control interface board for UNITROL6000 excitation system and ACS6000 high voltage drive, responsible for high-speed optical communication and signal processing. |
| 2 | Q:What communication method does it adopt? A:It uses DDCS fiber optic communication, which has excellent anti-electromagnetic interference ability in high-power power electronic equipment. |
| 3 | Q:Is this board new project recommended? A:It belongs to legacy series, mainly for spare replacement of existing excitation and high voltage drive systems, not recommended for new projects. |
