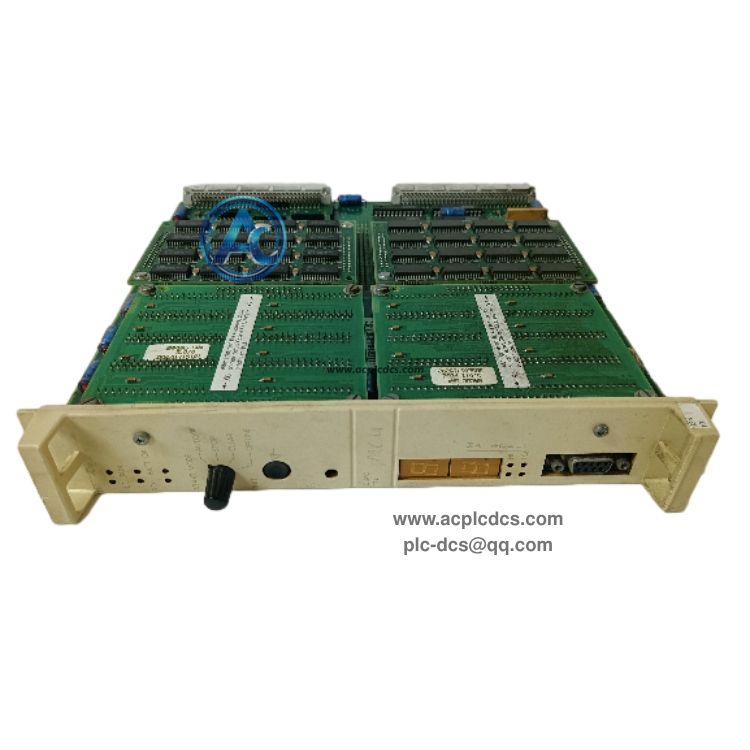

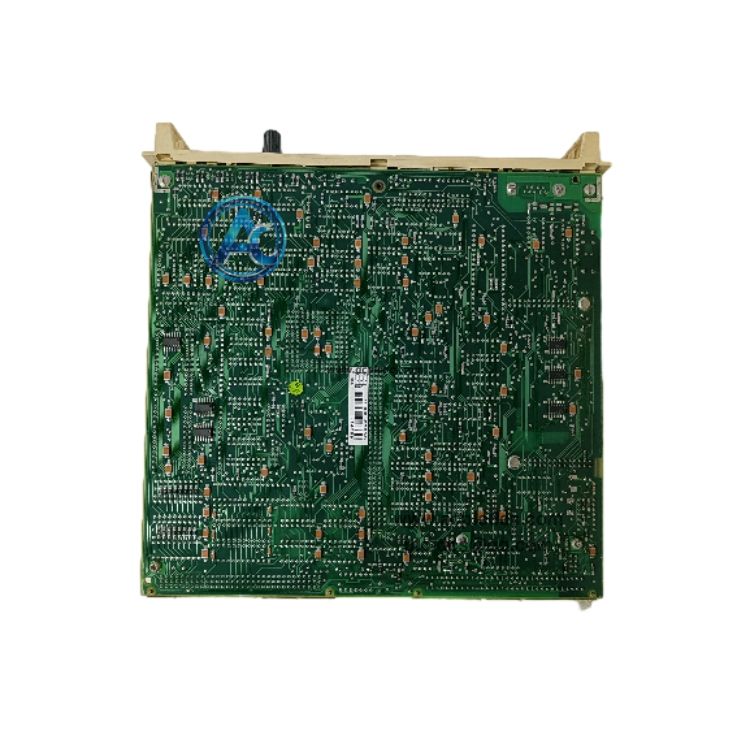

ABB DSPC174 3BSE005461R1 Processor Module

ABB DSPC174 3BSE005461R1 is a processor module for ABB MasterPiece 200 DCS control system. It executes control logic, handles arithmetic calculation and coordinates data communication among all rack modules.

This rack plug-in CPU module provides real-time processing capability for continuous process control. It is widely used as spare parts for old MasterPiece 200 system maintenance, cabinet transformation and on-site emergency replacement.

Data Parameters

• 1. Brand: ABB.

• 2. Model: DSPC174.

• 3. Part No: 3BSE005461R1.

• 4. Product Type: Processor Module.

• 5. Compatible System: ABB MasterPiece 200 DCS.

• 6. Function Position: Main control processor unit.

• 7. Main Function: Logic operation and real-time process calculation.

• 8. Mounting Style: Rack plug-in board for DCS cabinet.

• 9. Communication: Backplane bus for internal rack data exchange.

• 10. Application: Industrial distributed control system.

Core Functions

• 1. Run user control programs and execute real-time logic and arithmetic calculations.

• 2. Collect signal data from I/O modules and send control commands to field equipment.

• 3. Manage backplane bus communication and coordinate data transmission in control rack.

• 4. Support system fault diagnosis and generate alarm messages for abnormal status.

• 5. Support redundant configuration to improve the overall reliability of DCS system.

Application Scenarios

• 1. Power plant ABB MasterPiece 200 DCS system maintenance and spare parts replacement.

• 2. Petrochemical plant continuous process control system renovation project.

• 3. Pulp and paper factory old DCS control cabinet upgrade and transformation.

• 4. Metallurgical industrial automatic production line process control.

• 5. On-site emergency spare parts for legacy ABB MasterPiece 200 control system.

FAQ

• 1. Q: What is ABB DSPC174 3BSE005461R1 used for?
      A: It is a processor module for ABB MasterPiece 200 DCS, responsible for running control logic and processing real-time process data.

• 2. Q: Which control system is DSPC174 compatible with?
      A: It is dedicated for ABB MasterPiece 200 distributed control system as main CPU processor module.

• 3. Q: What is the main advantage of DSPC174 processor module?
      A: It delivers stable real-time computation performance, supports redundant running and ensures continuous operation of critical industrial process.
