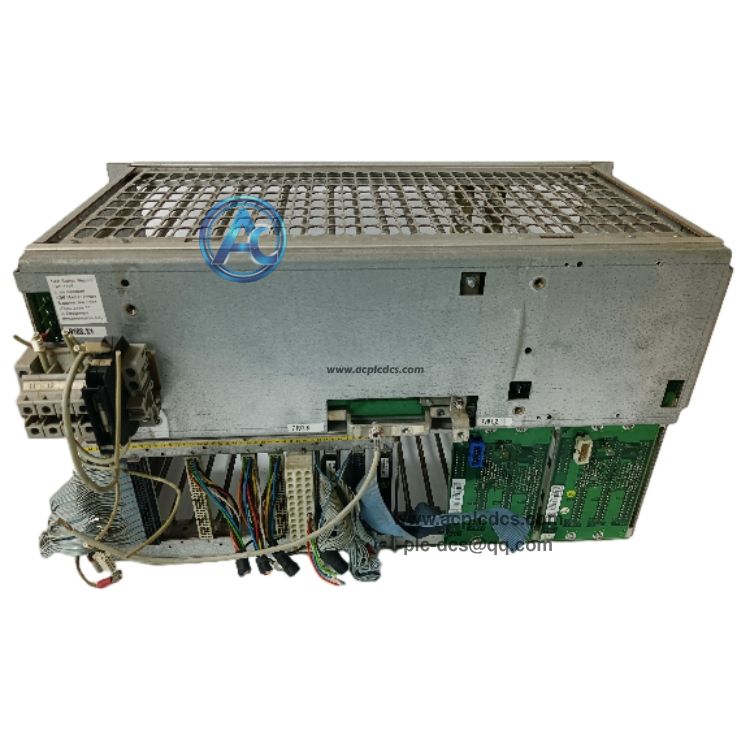

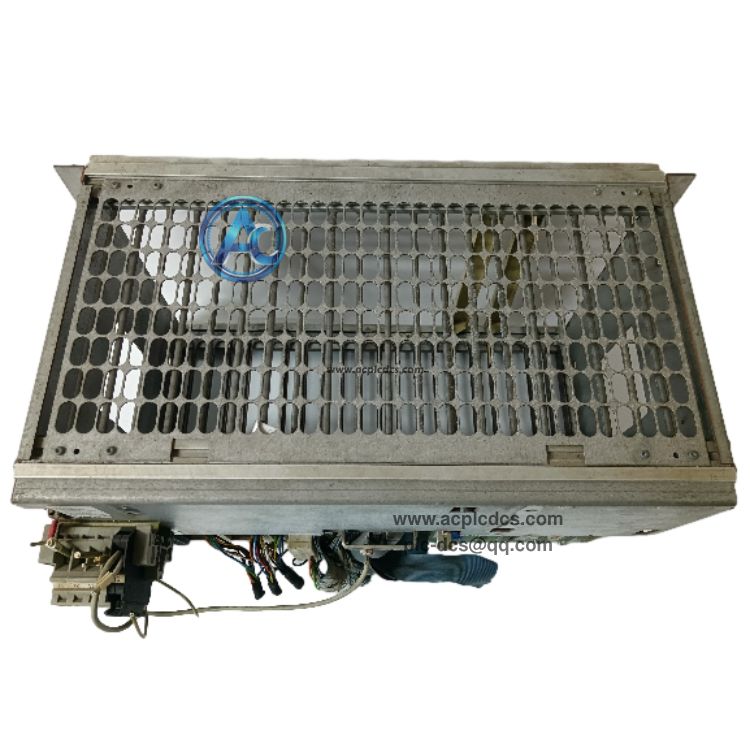

ABB DSRF180A 57310255-AV I/O Subrack Chassis in stock

ABB DSRF180A 57310255-AV is an I/O subrack chassis for ABB Advant Master DCS control system. It serves as the installation carrier for various S100 series I/O modules and provides backplane bus connection for signal and power transmission.

This rack chassis supports hot pluggable I/O module installation and integrates supervision circuit for rack status monitoring. It is widely used as spare parts for old Advant Master system maintenance, cabinet transformation and on-site emergency replacement.

Data Parameters

• 1. Brand: ABB.

• 2. Model: DSRF180A.

• 3. Part No: 57310255-AV.

• 4. Product Type: I/O Subrack Chassis.

• 5. Compatible System: ABB Advant Master DCS, S100 I/O series.

• 6. Function Position: Rack carrier for S100 I/O modules.

• 7. Main Function: Module mounting, power supply and backplane bus connection.

• 8. Mounting Style: Installed inside DCS control cabinet.

• 9. Feature: Built-in rack supervision signal circuit.

• 10. Application: Industrial distributed control system.

Core Functions

• 1. Provide mounting slots for different types of ABB S100 I/O plug-in modules.

• 2. Supply power and backplane bus channel for all modules installed in the subrack.

• 3. Realize signal interconnection between I/O modules and the Advant main controller.

• 4. Monitor rack operating status and send supervision signals to the control system.

• 5. Support convenient replacement of I/O modules without shutting down the whole rack.

Application Scenarios

• 1. Power plant ABB Advant Master DCS system maintenance and spare parts replacement.

• 2. Petrochemical plant S100 I/O subrack renewal and cabinet reconstruction project.

• 3. Pulp and paper factory old Advant control cabinet retrofit and upgrade.

• 4. Metallurgical industry DCS I/O rack replacement and system renovation.

• 5. On-site emergency spare parts for legacy ABB Advant control system.

FAQ

• 1. Q: What is ABB DSRF180A 57310255-AV used for?
      A: It is an I/O subrack chassis for ABB Advant Master DCS, used to carry S100 I/O modules and provide backplane bus and power connection.

• 2. Q: Which control system is DSRF180A compatible with?
      A: It is dedicated for ABB Advant Master DCS, matching S100 series I/O modules.

• 3. Q: What is the main advantage of DSRF180A subrack chassis?
      A: It integrates rack supervision function, supports hot swap of I/O modules and simplifies on-site module maintenance work.
