ABB PCD530A102 3BHE041343R0102 Communication Control in stock

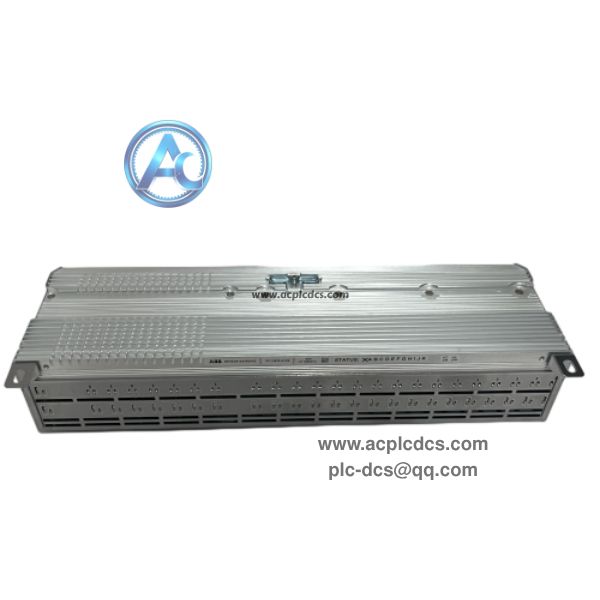

ABB PCD530A102 3BHE041343R0102 is a high-performance communication control and measurement unit for ABB AC800PEC power converter control platform. It undertakes analog signal sampling, real-time measurement and high-speed communication tasks for power electronic and excitation control systems.

This unit integrates multi-channel analog and digital I/O, Ethernet and fieldbus communication interfaces. It adopts compact rack-mounted design and conformal coating protection, widely used for power plant excitation cabinet, medium voltage converter maintenance, spare parts replacement and power control system retrofit projects.

Data Parameters

• 1. Brand: ABB.

• 2. Model: PCD530A102 3BHE041343R0102.

• 3. Product Type: Communication Control & Measurement Unit.

• 4. Applicable System: ABB AC800PEC power converter control system.

• 5. Signal Function: Multi-channel voltage and current signal acquisition and measurement.

• 6. Communication Interface: Ethernet and high-speed fieldbus interfaces.

• 7. I/O Channel: Built-in analog input, digital input and digital output channels.

• 8. Power Supply: 24 VDC auxiliary power supply for control electronics.

• 9. Operating Temperature: -20℃ ~ +70℃.

• 10. Installation: Standard rack mounting inside power converter or excitation cabinet.

Core Functions

• 1. Collect high-speed analog voltage and current signals from power conversion equipment for real-time measurement and calculation.

• 2. Complete high-speed data communication between local control unit and upper system through Ethernet and fieldbus.

• 3. Process digital interlock signals and output alarm and status signals for power system protection logic.

• 4. Execute signal conditioning and data preprocessing to improve measurement accuracy in strong electromagnetic interference environment.

• 5. Real-time self-diagnosis of hardware channels and communication links to detect and report equipment faults quickly.

Application Scenarios

• 1. Thermal power plant and combined cycle power plant AC800PEC excitation control cabinet module replacement and maintenance.

• 2. Metallurgy, mining high-power medium voltage power converter control system hardware retrofit project.

• 3. Oil & gas industry large motor drive and power quality control spare parts renewal.

• 4. Renewable energy power conversion and grid-connected control cabinet spare parts inventory backup.

• 5. Legacy ABB AC800PEC power control system overhaul and aging measurement control unit replacement project.

FAQ

• 1. Q: What is ABB PCD530A102 3BHE041343R0102?
      A: It is communication control and measurement unit for ABB AC800PEC platform, used for power signal sampling and high-speed communication.

• 2. Q: What system does PCD530A102 belong to?
      A: It belongs to ABB AC800PEC power converter control system, widely applied in generator excitation and medium voltage drive.

• 3. Q: What main interfaces does this unit have?
      A: It is equipped with Ethernet and fieldbus communication ports, plus multi-channel analog and digital I/O terminals.
