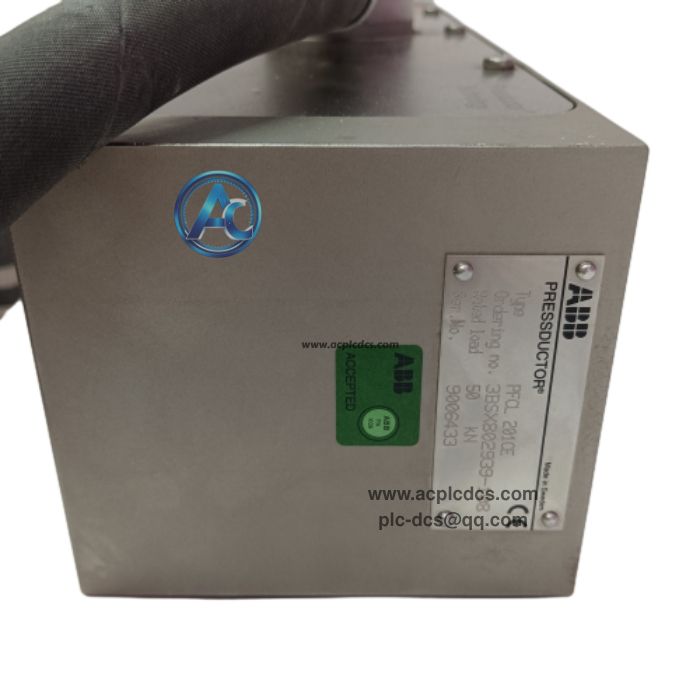

ABB PFCL201CE 50KN 3BSX802939-108 Pressductor PillowBlock in stock

ABB PFCL201CE 50KN 3BSX802939-108 is a PillowBlock tension load cell based on ABB Pressductor magnetoelastic measuring principle. It is designed for horizontal force and web tension measurement in continuous strip processing production lines.

This load cell has 50kN rated measuring capacity, high stiffness and strong overload resistance. It outputs accurate tension measurement signals to ABB tension controllers, widely used for paper, metal strip, film and textile production line maintenance, spare parts replacement and tension system retrofit projects.

Data Parameters

• 1. Brand: ABB.

• 2. Model: PFCL201CE 50KN, Part No:3BSX802939-108.

• 3. Product Type: Pressductor PillowBlock Tension Load Cell.

• 4. Rated Capacity: 50 kN for horizontal tension measurement.

• 5. Measurement Principle: Magnetoelastic Pressductor technology.

• 6. Characteristic: High rigidity, excellent overload and transverse force tolerance.

• 7. Output: Standard tension signal matched with ABB tension control units.

• 8. Mounting: Pillow block bearing housing integrated installation design.

• 9. Operating Temperature: -10℃ ~ +70℃.

• 10. Protection: Industrial robust housing for factory harsh environment.

Core Functions

• 1. Measure horizontal web tension of strip materials such as paper, film and metal strip on rolling lines.

• 2. Convert mechanical tension force into standard electrical signal via magnetoelastic effect for closed-loop tension control.

• 3. Maintain stable measurement accuracy under heavy load and transient overload working conditions.

• 4. Resist transverse force interference to reduce measurement error caused by roller weight and lateral stress.

• 5. Feed real-time tension data to ABB tension controller to stabilize web tension and avoid material break or wrinkling.

Application Scenarios

• 1. Paper mill continuous paper production line PFCL201CE tension load cell replacement and maintenance.

• 2. Metallurgical metal strip rolling and slitting line tension measurement system hardware retrofit project.

• 3. Plastic film, foil and textile industrial web processing line spare parts renewal.

• 4. Printing and coating continuous processing equipment tension control spare parts inventory backup.

• 5. Legacy ABB Pressductor tension measuring system overhaul and aging load cell replacement project.

FAQ

• 1. Q: What is ABB PFCL201CE 50KN 3BSX802939-108?
      A: It is PillowBlock tension load cell using Pressductor magnetoelastic technology for web tension measurement, rated at 50kN.

• 2. Q: What measuring principle does PFCL201CE adopt?
      A: It uses ABB proprietary Pressductor magnetoelastic effect to convert mechanical tension force into electrical signal.

• 3. Q: What industries commonly use this load cell?
      A: It is widely used in paper, metal strip, plastic film, textile and coating continuous web production lines.
