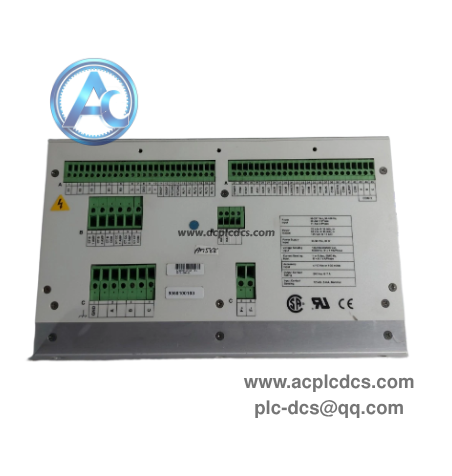

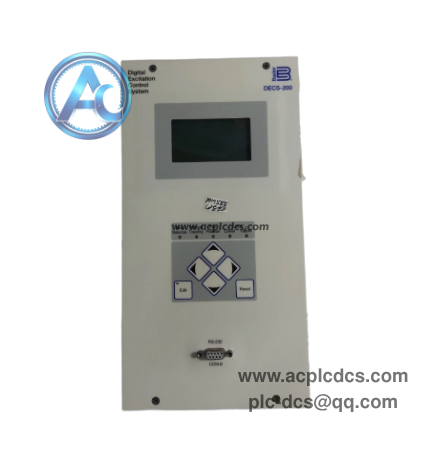

BASLER DECS-200-2L Digital Excitation Control System in stock

BASLER DECS-200-2L is a digital excitation controller developed by Basler Electric for synchronous generators. It adopts microprocessor and PWM technology to precisely regulate generator terminal voltage, reactive power and power factor.

This unit integrates multiple protective limiters and event recording functions. It is widely used for genset excitation control, power plant generator retrofit and spare parts replacement in power and marine industries.

Data Parameters

• 1. Brand: BASLER (Basler Electric).

• 2. Model: DECS-200-2L.

• 3. Product Type: Digital Excitation Control System / AVR.

• 4. Control Object: Synchronous generator excitation winding.

• 5. Excitation Output: 32Vdc, 63Vdc, 125Vdc optional.

• 6. Forced Excitation Current: 30Adc for 10 seconds.

• 7. Configuration Software: BESTCOMS™ for PC setup.

• 8. Operation Mode: Voltage, reactive power and power factor control.

• 9. Communication: Serial interface for parameter upload and download.

• 10. Application: Land-based and marine generator sets.

Core Functions

• 1. Real-time closed-loop regulation of generator terminal voltage for stable power output.

• 2. Supports reactive power and power factor control for grid-connected generators.

• 3. Built-in multi-limiter protection to prevent over-excitation and over-current faults.

• 4. Event sequence recording and waveform capture for fault analysis and troubleshooting.

• 5. Supports local HMI or PC software parameter configuration and firmware upgrade.

Application Scenarios

• 1. Power plant synchronous generator excitation control and renovation.

• 2. Marine diesel generator set voltage regulation system.

• 3. Grid-connected generator set reactive power management.

• 4. Industrial backup power generation cabinet maintenance and spare parts replacement.

• 5. Hydroelectric and thermal power generator excitation system upgrade.

FAQ

• 1. Q: What is BASLER DECS-200-2L used for?
      A: It is a digital excitation controller (AVR) for synchronous generators, used to control generator voltage and reactive power by adjusting excitation current.

• 2. Q: What software is used to configure DECS-200-2L?
      A: It uses BESTCOMS™ software on PC for parameter setting, monitoring and firmware download.

• 3. Q: Can DECS-200-2L be used for marine generators?
      A: Yes, it is suitable for marine diesel generator sets and meets the excitation regulation requirements of ship power systems.
