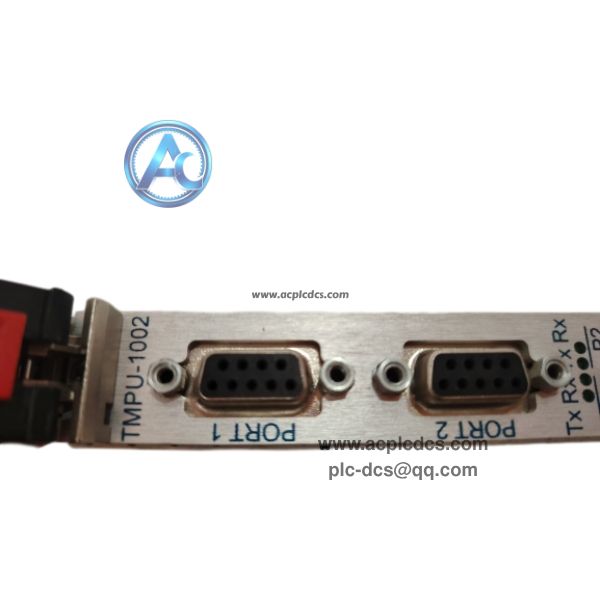

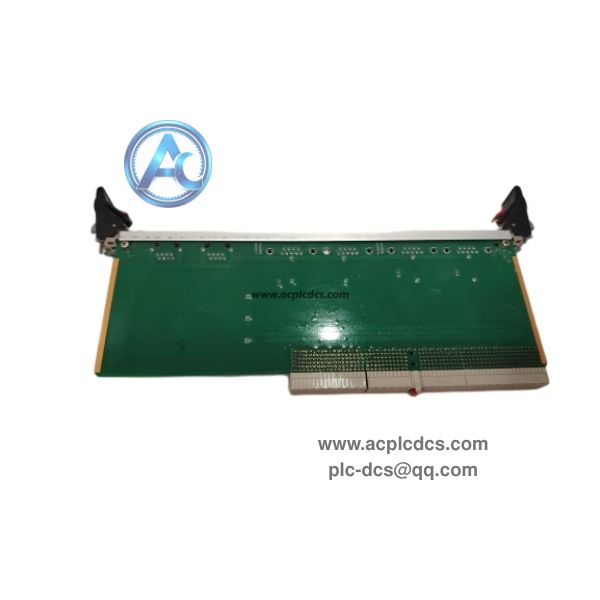

CCC TMPU-1002 CPU Transition Module in stock

CCC TMPU-1002 is a CPU transition interface module for CCC XCALIBER 1000 compressor control system. It acts as the front-end transition board for MCP-1004 main processor, providing multiple serial and Ethernet ports for inter-board communication and host connection.

This CPCI hot-swap card supports signal routing and protocol conversion between the main CPU and I/O cards such as TIOC-555HD. It is widely used for anti-surge control cabinets of centrifugal compressors in oil & gas and petrochemical industries.

Data Parameters

• 1. Brand: COMPRESSOR CONTROLS CORP (CCC)

• 2. Model: TMPU-1002

• 3. Product Type: CPU Transition Interface Module

• 4. Form Factor: CPCI rack card, hot swap support

• 5. Power Supply: 24VDC

• 6. Interfaces: Multiple RS232/485 serial ports, Ethernet

• 7. Feature: Signal isolation, channel self-diagnosis

• 8. Matching CPU: MCP-1004 main processor

• 9. Matching I/O: TIOC-555HD series I/O modules

• 10. Operating Temperature: -40℃ ~ +85℃

Core Functions

• 1. Serve as transition interface for MCP-1004 CPU to expand external communication ports.

• 2. Realize data exchange between main processor and TIOC-555HD I/O modules.

• 3. Support Modbus communication to upload compressor data to DCS and SCADA.

• 4. Complete signal isolation and anti-interference protection for control bus signals.

• 5. Monitor link status and report communication faults for system troubleshooting.

Application Scenarios

• 1. Natural gas pipeline centrifugal compressor anti-surge control cabinet.

• 2. Refinery and petrochemical process gas compressor control system.

• 3. LNG plant and gas booster station turbomachinery control unit.

• 4. Compressor performance control and safety interlock monitoring system.

• 5. CCC XCALIBER 1000 system spare replacement and on-site overhaul.

FAQ

• 1. Q: What is CCC TMPU-1002?
      A: It is CPU transition interface module matched with MCP-1004 for compressor control system.

• 2. Q: Can it run independently?
      A: No, it must cooperate with MCP-1004 main processor.

• 3. Q: Is this model still in production?
      A: Discontinued, only supplied for aftermarket spare parts.
