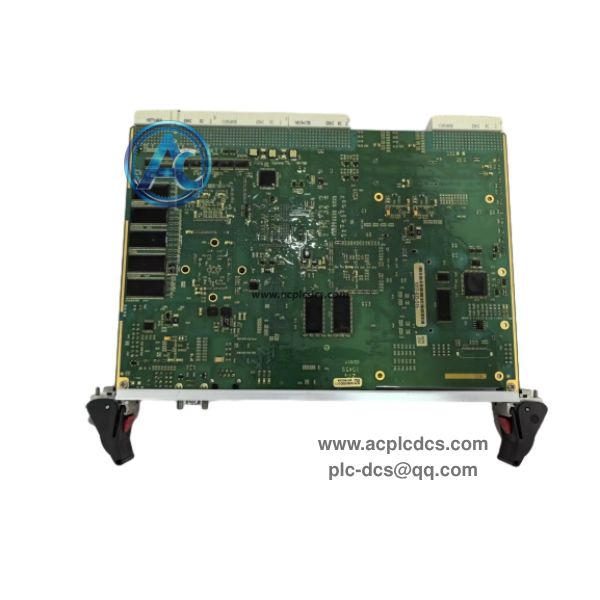

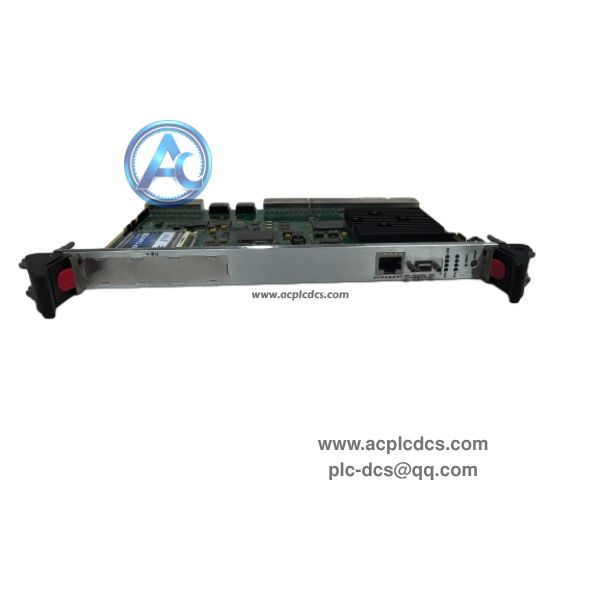

COMPRESSOR CONTROLS CORP(CCC) MCP-1004 Main Processor Module in stock

CCC MCP-1004 is the core main processor for CCC XCALIBER 1000 compressor control system, equipped with 1GHz 32-bit RISC processor. It is specially developed for anti-surge and performance control of centrifugal compressors, executing high-speed real-time control algorithms.

This CPCI-style board supports Ethernet and RS485 Modbus communication, with built-in flash and RAM storage. It is a discontinued legacy spare part, widely used for overhaul and replacement of compressor control cabinets in oil & gas and petrochemical plants.

Data Parameters

• 1. Brand: COMPRESSOR CONTROLS CORP (CCC)

• 2. Model: MCP-1004

• 3. Product Type: Compressor Main CPU Processor Module

• 4. Processor: 1GHz 32-bit RISC

• 5. Memory: 256KB RAM, 128KB Flash

• 6. Communication: Ethernet, RS485 Modbus RTU

• 7. Form: CPCI rack card, hot swap support

• 8. Core Algorithm: Compressor anti-surge & performance control

• 9. Power Supply: 24VDC

• 10. Operating Temperature: -40℃ ~ +85℃

Core Functions

• 1. Run anti-surge control algorithm to prevent centrifugal compressor surge damage.

• 2. Realize compressor load, pressure and flow closed-loop performance regulation.

• 3. Collect sensor signals and communicate with I/O modules, DCS and SCADA.

• 4. Store operation logs, surge event records and trend data for analysis.

• 5. Complete board self-diagnosis and send fault alarm to upper monitoring system.

Application Scenarios

• 1. Oil & gas pipeline centrifugal compressor anti-surge control cabinet.

• 2. Petrochemical, refinery large compressor unit control system.

• 3. Natural gas booster station and LNG plant compressor monitoring.

• 4. Power plant turbocompressor and process gas compressor control.

• 5. CCC XCALIBER 1000 system spare replacement and field maintenance.

FAQ

• 1. Q: What is CCC MCP-1004?
      A: It is main CPU processor for CCC XCALIBER 1000 compressor anti-surge control system.

• 2. Q: What is its most important function?
      A: Execute anti-surge control algorithm to protect centrifugal compressors.

• 3. Q: Is this model still in production?
      A: Discontinued, only available for aftermarket spare supply.
