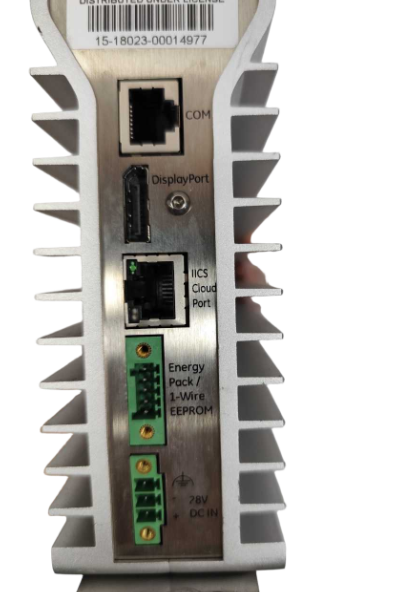

GE IS420UCSCH1A-H-V0.1-A Mark VIe Controller Module in stock

GE IS420UCSCH1A-H-V0.1-A is a specific hardware revision version of the UCSC universal controller for GE Vernova Mark VIe turbine control system. The suffix -H-V0.1-A stands for designated hardware variant and factory configuration, built with quad-core processor running QNX real-time OS. It undertakes turbine closed-loop regulation, safety trip logic, IONet communication and fault recording, suitable for harsh high-EMI industrial sites.

This fanless controller supports TMR triple modular redundancy and hot swap. It is pre-configured with factory baseline firmware, conformal coating option available. Widely used in gas/steam turbine and compressor control racks, it is an exact replacement spare for matching revision Mark VIe system maintenance.

Data Parameters

• 1. Brand: GE Vernova (GE Energy)

• 2. Model: IS420UCSCH1A-H-V0.1-A

• 3. Product Type: Mark VIe UCSC Core Controller, H version V0.1 hardware revision

• 4. Application: Gas / Steam Turbine, Compressor Mark VIe control system

• 5. Feature: Quad-core processor, QNX real-time OS, SIL3 safety certified

• 6. Characteristic: 6 × IONet Ethernet, dual USB2.0, RS232 console port

• 7. Memory: 4GB DDR3 RAM, 40GB pSLC SSD storage

• 8. Power: 24VDC backplane supply, max 31W

• 9. Cooling: Passive fanless convection cooling

• 10. Operating Temperature: 0℃ ~ +60℃

Core Functions

• 1. Execute speed, fuel, exhaust temperature and surge control algorithms for rotating equipment.

• 2. Communicate with I/O packs and HMI/SCADA via dedicated IONet industrial network.

• 3. Implement safety interlock, turbine trip protection and sequence of event recording.

• 4. Support TMR redundant voting and hot replacement without interrupting control loop.

• 5. Local commissioning, diagnostic check and firmware upgrade through ToolboxST software.

Application Scenarios

• 1. Combined cycle power plant gas turbine and steam turbine control cabinet.

• 2. Petrochemical large centrifugal compressor and pipeline anti-surge control system.

• 3. Mark VIe system overhaul, revision-matched spare replacement and cabinet retrofit.

• 4. Power plant auxiliary boiler, waste heat turbine and Balance of Plant control rack.

• 5. SIL3 critical rotating machinery safety controller spare inventory backup.

FAQ

• 1. Q: What is IS420UCSCH1A-H-V0.1-A?
      A: It is a hardware revision variant of the GE Mark VIe UCSC turbine controller, suffix defines H series V0.1 factory configuration.

• 2. Q: Can it directly replace standard IS420UCSCH1A?
      A: Hardware pin compatible, firmware revision must be matched to avoid TMR synchronization error.

• 3. Q: Is it compatible with old Mark VI non-VIe racks?
      A: No, it only works on Mark VIe and Mark VIeS platform IONet architecture.
