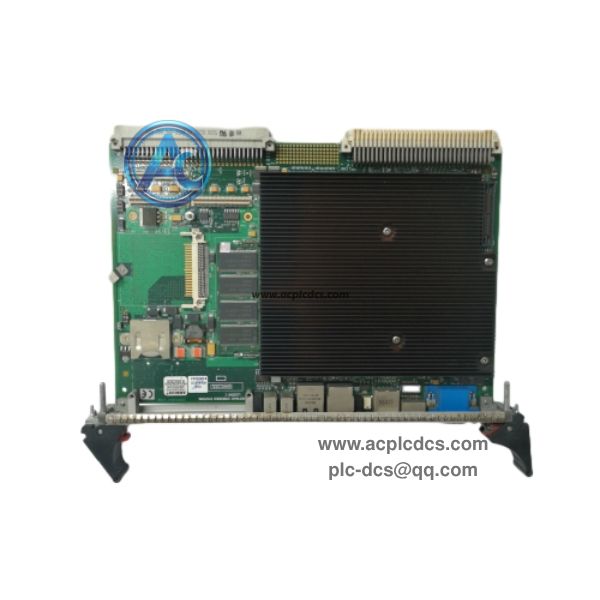

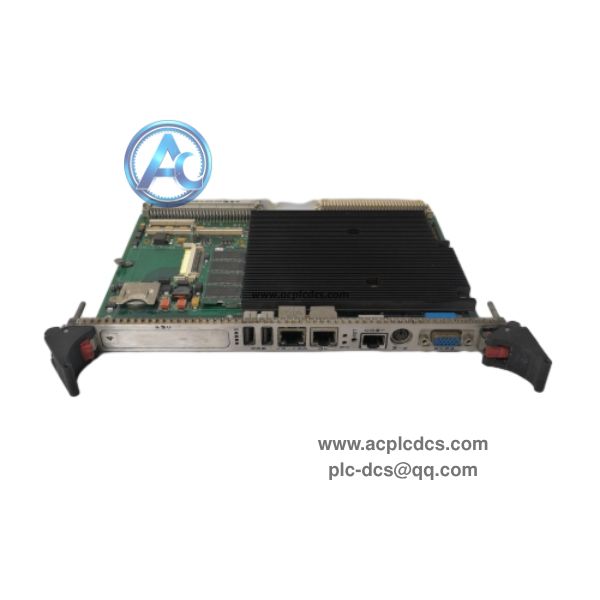

GE VMIVME-017807-414001 350-0001007807-414001 D VMEbus Controller Board in stock

GE VMIVME-017807-414001 (VMIVME-7807, part 350-0001007807-414001 D) is a 6U VME64x bus high-performance controller board developed by VMIC (GE Intelligent Platforms). It adopts PowerPC architecture with onboard FPGA acceleration, runs VxWorks real-time operating system, and is designed for deterministic closed-loop control, multi-axis motion and high-speed data acquisition in legacy VME turbine control racks.

This version D hardware variant supports ECC memory, dual Ethernet ports and PMC expansion slot, with built-in watchdog and fault diagnosis. It can work together with VMIVME series DI/DO/AO and reflective memory cards, widely used in power generation and simulation test systems, and it is a scarce discontinued maintenance spare for VME platforms.

Data Parameters

• 1. Brand: GE (VMIC / Abaco)

• 2. Model: VMIVME-017807-414001, VMIVME-7807, 350-0001007807-414001 D

• 3. Product Type: 6U VME64x Real-time Controller Board

• 4. Application: Turbine control, hardware-in-loop simulation, motion control system

• 5. Feature: PowerPC CPU, FPGA acceleration, VME64x, PMC expansion

• 6. Characteristic: ECC memory, dual 10/100 Ethernet, hardware watchdog timer

• 7. Bus Support: A32/A64, 64-bit VME data transfer, MBLT64

• 8. Form Factor: 6U double height Eurocard

• 9. RTOS: VxWorks, deterministic cycle ≤50μs

• 10. Operating Temperature: -20℃ ~ +70℃

Core Functions

• 1. Execute real-time control algorithms and closed-loop regulation logic for rotating machinery.

• 2. Communicate with VMIVME I/O boards and VMIVME5576 reflective memory cards via VME bus.

• 3. Provide high-speed Ethernet interface for upper HMI, SCADA and remote debugging.

• 4. Monitor board status, trigger watchdog reset and record fault diagnostic information.

• 5. Expand custom functions through PMC slot for special simulation and test requirements.

Application Scenarios

• 1. GE gas and steam turbine legacy VME control cabinet main controller rack.

• 2. Hardware-in-loop real-time simulation platform and high-speed test bench.

• 3. Petrochemical compressor anti-surge and interlock control system.

• 4. VMIC VME series rack renovation and matching controller spare replacement.

• 5. Synchronous multi-node control network matched with VMIVME5576 reflective memory.

FAQ

• 1. Q: What is GE VMIVME-017807-414001 350-0001007807-414001 D?
      A: It is the D hardware revision variant of VMIVME-7807 VME64x real-time controller board for turbine and simulation systems.

• 2. Q: Can it be used with VMIVME7698?
      A: They belong to different CPU platforms, cannot directly replace each other, and need matching firmware and backplane configuration.

• 3. Q: Is this module still in production?
      A: It is discontinued, only available as surplus used and refurbished spare parts for legacy system maintenance.
