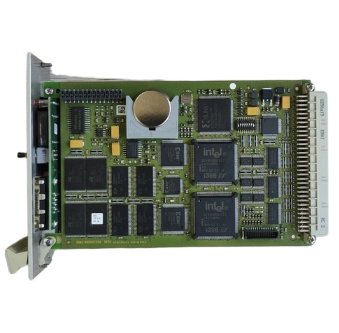

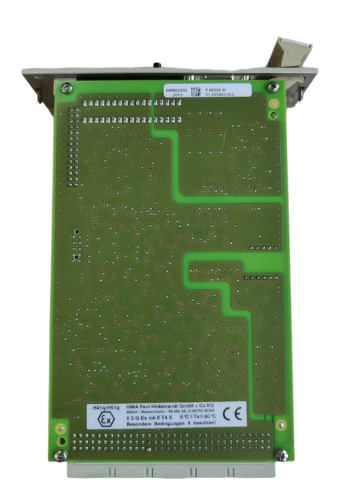

HIMA F8652X HIMatrix Safety CPU Module in stock

HIMA F8652X is a safety CPU processor module for HIMA HIMatrix F33 series safety instrumented system(SIS). It executes safety logic programs, processes field I/O signals and performs safety interlock judgment, complying with IEC61508 SIL3 safety standard for critical process protection.

This module adopts dual redundant safety circuit design, equipped with integrated diagnostic display and RS485 communication interfaces. It supports PROFIBUS DP fieldbus connection, widely used for ESD, FGS safety cabinet maintenance, spare parts replacement and safety interlock system retrofit projects.

Data Parameters

• 1. Brand: HIMA (Paul Hildebrandt GmbH, Germany).

• 2. Model: F8652X.

• 3. Product Type: HIMatrix Safety CPU Module.

• 4. Product Series: HIMatrix F33 Safety Controller Series.

• 5. Safety Level: SIL3 certified (IEC61508, IEC61511).

• 6. Power Supply: 24VDC.

• 7. Communication: Dual RS485, PROFIBUS DP interface.

• 8. Mounting: DIN rail 35mm installation, 8TE width.

• 9. Diagnosis: Built-in watchdog, CPU & I/O fault detection.

• 10. Operating Temperature: -20℃ ~ +60℃.

Core Functions

• 1. Execute user safety logic program and perform safety interlock and emergency shutdown judgment.

• 2. Collect digital I/O signals from field safety sensors, emergency stop switches and limit switches.

• 3. Realize data exchange via PROFIBUS DP bus, communicate with upper DCS and other HIMatrix nodes.

• 4. 4-digit alphanumeric display and LED indicators show CPU status, faults and system alarm information.

• 5. Continuous self-diagnosis of hardware and program, trigger safe state once internal fault is detected.

Application Scenarios

• 1. Oil & gas plant ESD emergency shutdown system safety controller spare replacement.

• 2. Petrochemical factory fire & gas FGS safety protection system upgrade project.

• 3. Power plant boiler and turbine safety interlock control cabinet spare renewal.

• 4. Refining and chemical industries SIL3 safety instrumented system spare inventory backup.

• 5. Legacy HIMA HIMatrix F33 safety system aging CPU module replacement project.

FAQ

• 1. Q: What is HIMA F8652X?
      A: It is SIL3 safety CPU module for HIMA HIMatrix F33 SIS system, responsible for running safety logic and executing emergency shutdown control.

• 2. Q: What communication interfaces does it have?
      A: Dual RS485 ports and PROFIBUS DP bus for communication with I/O modules and host control systems.

• 3. Q: Can F8652X be hot swapped?
      A: Not hot-swappable. System shutdown and safety isolation are required before module replacement.
