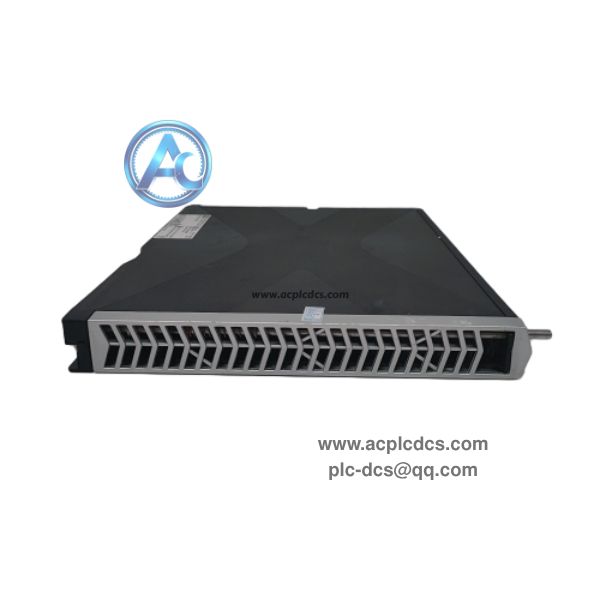

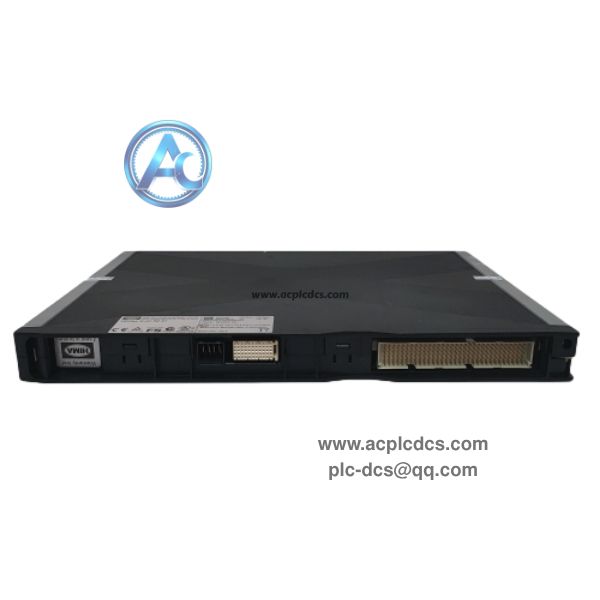

HIMA X-AI3201 Analog Input Module in stock

HIMA X-AI3201 is an 8-channel SIL3 rated analog input module for HIMax safety control system. It acquires 4-20mA and voltage signals from field transmitters, converts analog signals into digital data for safety logic processing. Each channel supports signal diagnostics and wire-break detection for SIS, ESD and BMS applications.

This hot-swappable module adopts safety-oriented circuit design, supports redundant rack configuration and online replacement without system shutdown. It is widely used in oil & gas, chemical and power plants, serving as a critical spare for safety instrumented system maintenance.

Data Parameters

• 1. Brand: HIMA (Himatrix)

• 2. Model: X-AI3201

• 3. Product Type: 8-Channel Safety Analog Input Module

• 4. Application: HIMax SIS, ESD, BMS safety instrument system

• 5. Feature: SIL3 certification, 8 isolated channels, wire break diagnosis

• 6. Characteristic: 4-20mA / voltage input, hot swappable

• 7. Resolution: High precision A/D conversion, overrange detection

• 8. Bus: HIMax internal safety bus communication

• 9. Mounting: Plug-in for HIMax rack backplane

• 10. Operating Temperature: -20℃ ~ +70℃

Core Functions

• 1. Collect analog process signals such as pressure, temperature and flow transmitters.

• 2. Detect open circuit, short circuit and abnormal signal of each field channel.

• 3. Transmit validated digital process values to HIMax CPU for safety logic judgment.

• 4. Support hot swap replacement under redundant safety rack operation.

• 5. Meet SIL3 safety requirements for critical protection loops of process industry.

Application Scenarios

• 1. Petrochemical plant emergency shutdown ESD safety control cabinet.

• 2. Oil and gas pipeline, refinery burner management BMS system.

• 3. Power plant boiler and turbine safety instrumented system SIS rack.

• 4. HIMax safety system overhaul and analog input spare replacement.

• 5. SIL3 process safety loop signal acquisition and monitoring unit.

FAQ

• 1. Q: What is HIMA X-AI3201?
      A: It is an 8-channel SIL3 analog input module for HIMA HIMax safety control system.

• 2. Q: Does it support 4-20mA transmitter input?
      A: Yes, it supports standard 4-20mA and voltage signal acquisition.

• 3. Q: Can it be used with old HIMatrix series?
      A: No, it is dedicated for HIMax platform and incompatible with HIMatrix racks.
