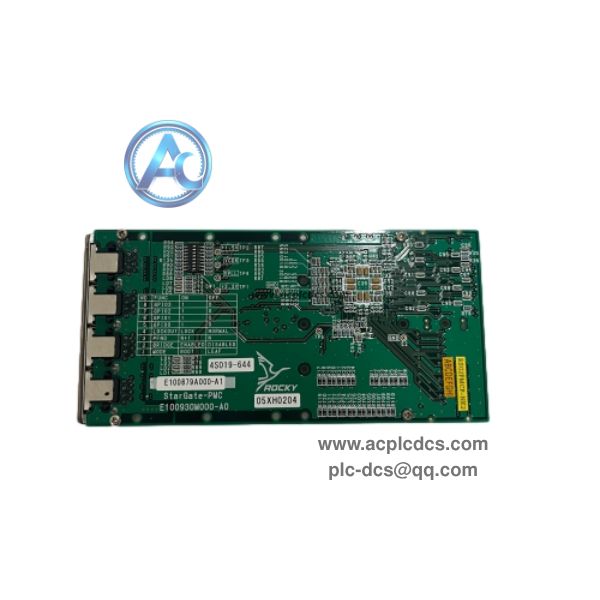

Motorola RSG2PMC RSG2PMCF-NK2 PMC Interface Board in stock

Motorola RSG2PMC, part number RSG2PMCF-NK2, is a PMC (PCI Mezzanine Card) high-speed communication interface mezzanine board. It is designed to plug onto VME single board computers such as Motorola PowerPC SBC, providing high-speed serial or network channels for industrial real-time control systems like turbine control platforms.

This PMC card adopts rugged industrial design for cabinet vibration and electromagnetic interference, used to expand communication ports on the host SBC. Widely used in power, chemical and pulp & paper turbine control rack maintenance, spare replacement and control system retrofit projects.

Data Parameters

• 1. Brand: Motorola.

• 2. Model: RSG2PMC, RSG2PMCF-NK2.

• 3. Product Type: PMC Mezzanine Communication Interface Card.

• 4. Application: PMC expansion for Motorola VME PowerPC single board computers.

• 5. Feature: PMC form factor, high-speed differential serial communication, industrial ruggedized.

• 6. Characteristic: Stacked mezzanine installation on host SBC PMC slot.

• 7. Interface: High-speed differential serial ports, PMC PCI bus interface.

• 8. Package: PMC mezzanine board assembly with bracket.

• 9. Mounting: Installed on PMC socket of VME single board computer.

• 10. Operating Temperature: -40℃ ~ +85℃.

Core Functions

• 1. Expand high-speed serial communication channels for the host VME single board computer.

• 2. Realize real-time data exchange between main controller and remote I/O or auxiliary control nodes.

• 3. Hardware signal isolation and noise suppression to adapt to harsh power plant cabinet environment.

• 4. Onboard self-test function, detect link status and report communication faults to host CPU.

• 5. Work together with Motorola APM-420A and other VME SBC to build redundant turbine control systems.

Application Scenarios

• 1. Power plant VME turbine control rack PMC communication card spare replacement.

• 2. Petrochemical plant turbocompressor control cabinet expansion and maintenance project.

• 3. Pulp and paper mill heavy-duty machinery automation control system upgrade.

• 4. Heavy industry VME bus real-time control spare parts inventory backup.

• 5. Aging PMC mezzanine communication card renewal and retrofit project.

FAQ

• 1. Q: What is Motorola RSG2PMC RSG2PMCF-NK2?
      A: It is a Motorola PMC mezzanine communication expansion card, used to add high-speed serial ports for VME single board computers.

• 2. Q: Can it run independently?
      A: No, it must be installed on a compatible PMC host SBC and cannot work as a standalone board.

• 3. Q: Can it be hot swapped?
      A: Hot swap is not supported. Power off the VME rack before replacing the PMC mezzanine card.
