PEPPERL+FUCHS HiD2082 Temperature Converter Isolated Barrier in stock

PEPPERL+FUCHS HiD2082 is a 2-channel intrinsic safety temperature converter and isolated barrier for H-System, matched with Emerson DeltaV DCS platform. It receives RTD, thermocouple or potentiometer signals from hazardous area field sensors, converts raw temperature signals into linear 4-20mA or 1-5V isolated output for safe zone control system.

This compact 18mm width module supports signal splitter function, sensor break detection and line fault diagnosis, configurable via PACTware software, certified SIL2. Widely used in power, chemical and pulp & paper DCS maintenance, spare replacement and safety instrumented system retrofit projects.

Data Parameters

• 1. Brand: Pepperl+Fuchs (Germany).

• 2. Model: HiD2082.

• 3. Product Type: 2-Channel Temperature Converter / Isolated Barrier.

• 4. Application: H-System, DeltaV DCS, hazardous area temperature signal isolation.

• 5. Feature: SIL2 certification, 2 channels, bus-powered, 18mm slim housing.

• 6. Characteristic: RTD / TC / potentiometer input, 4-20mA or 1~5V linear output.

• 7. Supply Voltage: 20.4 ~ 30 VDC bus power via termination board.

• 8. Package: Plug-in electronic module assembly for HiD termination board.

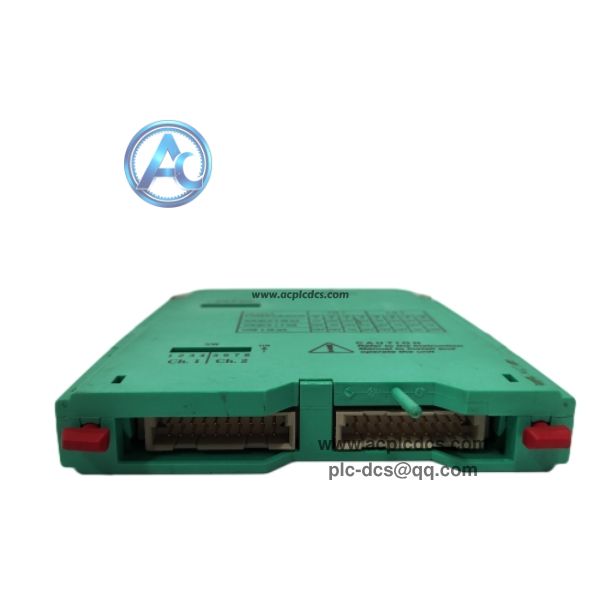

• 9. Mounting: Plug onto HiD series termination board inside control cabinet.

• 10. Operating Temperature: -20℃ ~ +60℃.

Core Functions

• 1. Acquire temperature signals from RTD, thermocouple and potentiometer sensors in explosive hazardous zones.

• 2. Intrinsic safety isolation, limit energy transmission to prevent ignition risk in hazardous locations.

• 3. Linear signal conversion, can be set as signal splitter: one input signal split to two isolated outputs.

• 4. Sensor wire break and line fault detection, LED alarm and fault bus signal for troubleshooting.

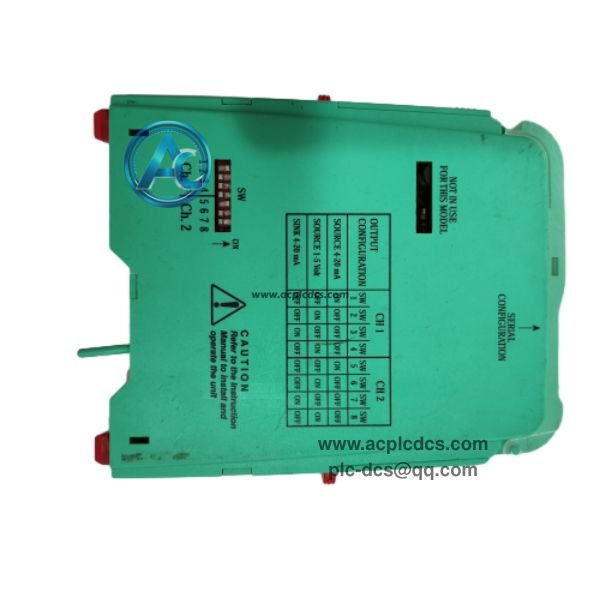

• 5. Parameter configuration via PACTware, sink/source mode selectable by side DIP switches.

Application Scenarios

• 1. Power plant DeltaV DCS hazardous area temperature barrier spare replacement.

• 2. Petrochemical plant reactor and pipeline temperature instrument cabinet maintenance project.

• 3. Pulp and paper mill boiler temperature measurement safety barrier upgrade.

• 4. Heavy industry SIL2 safety instrumented system signal isolation spare parts backup.

• 5. Old H-System temperature conversion isolated barrier renewal and retrofit project.

FAQ

• 1. Q: What is PEPPERL+FUCHS HiD2082?
      A: It is 2-channel SIL2 certified temperature converter & intrinsic safety isolated barrier for Pepperl+Fuchs H-System and DeltaV DCS.

• 2. Q: What input signals does it accept?
      A: It supports RTD, thermocouple and potentiometer temperature sensor input from hazardous area.

• 3. Q: Can it be hot swapped?
      A: It supports plug replacement on termination board, strictly follow DeltaV & P+F operation manual for hazardous loop isolation before operation.
