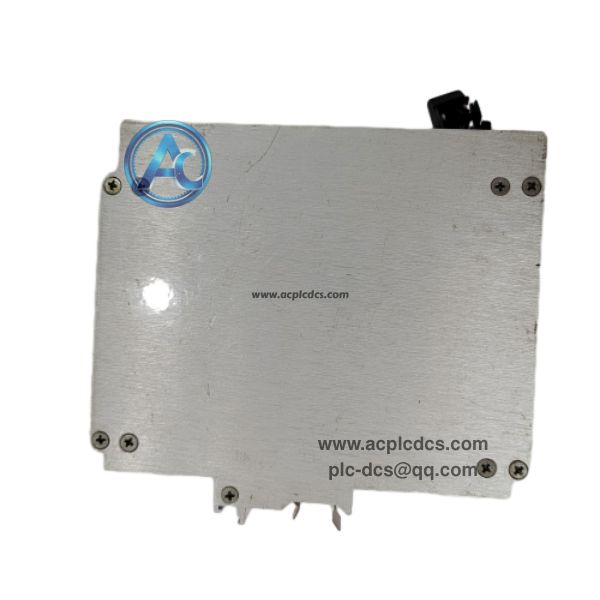

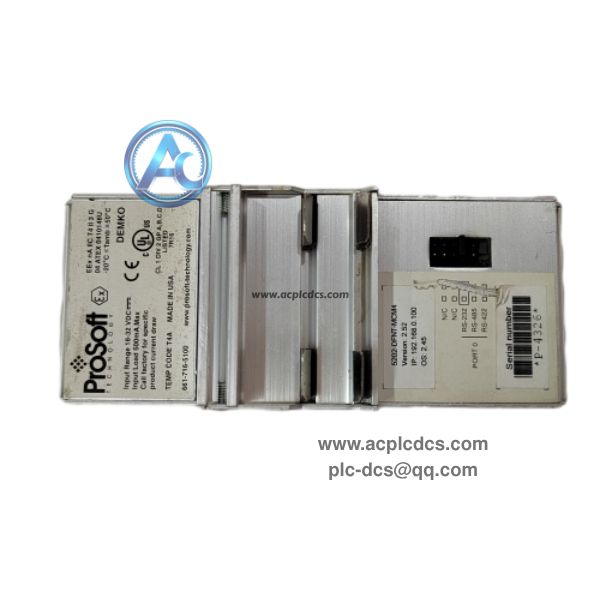

PROSOFT 5202-DFNT-MCM4 ProLinx Communication Module in stock

PROSOFT 5202-DFNT-MCM4 is a ProLinx series protocol gateway, serving as a bi-directional converter between EtherNet/IP and Modbus serial RTU/ASCII. It features four configurable serial ports to connect multiple Modbus field instruments, exchanging real-time data with Rockwell EtherNet/IP PLC systems without custom programming.

This gateway supports master/slave Modbus operation and EtherNet/IP client & server modes. It adopts DIN rail mounting design, built-in diagnostic functions for network troubleshooting, widely used for industrial network renovation, spare parts replacement and cross-protocol system integration projects.

Data Parameters

• 1. Brand: ProSoft Technology.

• 2. Model: 5202-DFNT-MCM4.

• 3. Product Type: EtherNet/IP to Modbus Serial Protocol Gateway.

• 4. Product Series: ProLinx Communication Gateway Series.

• 5. Ethernet Port: 1 × EtherNet/IP port, support Client / Server.

• 6. Serial Ports: 4 configurable ports, RS232/RS422/RS485.

• 7. Serial Protocol: Modbus RTU / Modbus ASCII, Master or Slave mode.

• 8. Mounting: DIN rail installation.

• 9. Power Supply: 24VDC industrial power supply.

• 10. Operating Temperature: -20℃ ~ +60℃.

Core Functions

• 1. Realize bi-directional data conversion between EtherNet/IP network and Modbus serial devices.

• 2. Four serial ports can independently connect pressure transmitters, flow meters and Modbus sensors.

• 3. Support Modbus master or slave mode for each serial port, flexible network configuration.

• 4. Built-in network diagnosis to monitor communication status and report link failure alarms.

• 5. Seamless data exchange with Rockwell ControlLogix and CompactLogix EtherNet/IP controllers.

Application Scenarios

• 1. Petrochemical plant multi-protocol network integration and communication gateway spare replacement.

• 2. Water treatment plant Modbus field instruments connecting to Rockwell EtherNet/IP PLC system.

• 3. Power plant DCS system retrofitting for serial instrument data collection upgrade.

• 4. Food & pharmaceutical factory automation network reconstruction and protocol conversion backup.

• 5. Legacy ProLinx communication gateway replacement and industrial network maintenance project.

FAQ

• 1. Q: What is PROSOFT 5202-DFNT-MCM4?
      A: It is ProLinx 4-port gateway converting EtherNet/IP and Modbus serial RTU/ASCII for industrial automation networks.

• 2. Q: What serial hardware interfaces does it support?
      A: Each of four serial ports can be configured as RS232, RS422 or RS485 via jumper settings.

• 3. Q: Can it connect to Allen‑Bradley PLC?
      A: Yes, it communicates with Rockwell ControlLogix / CompactLogix over EtherNet/IP.
