ProSoft MVI56-MCM Communication Module in stock

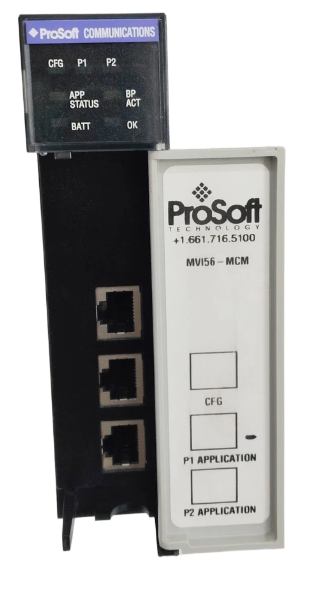

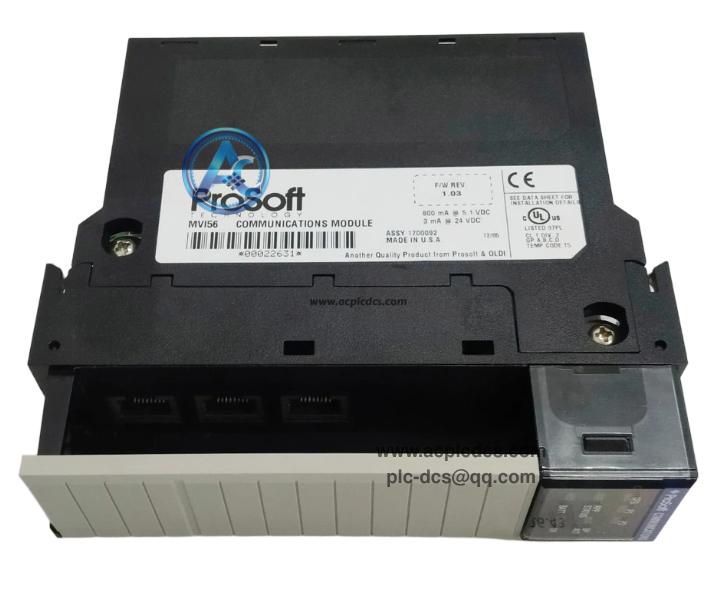

ProSoft MVI56-MCM is a classic Modbus communication module for Rockwell ControlLogix backplane. It acts as a serial Modbus gateway, supporting both Modbus RTU and Modbus ASCII, and each of the two serial ports can be independently configured as master or slave.

It uses a 5000-word user data database for bidirectional data exchange between ControlLogix controller and Modbus instruments, PLCs, drives and meters. It is widely used in oil & gas, chemical, water treatment and power industries, and is a mainstream spare part for ControlLogix Modbus networking retrofit.

Data Parameters

• 1. Brand: ProSoft Technology

• 2. Model: MVI56-MCM

• 3. Product Type: Modbus Master/Slave Serial Communication Module

• 4. Application: ControlLogix system connecting Modbus RTU/ASCII field devices

• 5. Feature: Dual serial ports, master/slave configurable, RTU/ASCII, Enron floating point support

• 6. Characteristic: ControlLogix rack mount, backplane tag data exchange, 5000-word register database

• 7. Baud Rate: 1200 ~ 115200 bps

• 8. Compatible Devices: Modbus PLC, transmitters, flow meters, servo drives, analyzers

• 9. Mounting: Standard 1756 ControlLogix rack slot

• 10. Operating Temperature: -20℃ ~ +70℃

Core Functions

• 1. Serve as Modbus master to poll multiple field instruments and collect real-time register data.

• 2. Run as Modbus slave to respond to requests from third-party Modbus master hosts.

• 3. Transfer Modbus data to ControlLogix tags via backplane for logic and SCADA uploading.

• 4. Support Enron Modbus floating-point format for accurate floating-point value transmission.

• 5. Provide comprehensive module diagnostics, communication status and timeout alarm information.

Application Scenarios

• 1. Chemical plant and refinery Modbus instrument data acquisition cabinet.

• 2. Water treatment and sewage plant ControlLogix remote monitoring system.

• 3. Oil & gas pipeline, compressor station and wellsite automation control.

• 4. Power plant auxiliary system connecting Modbus meters and protection devices.

• 5. Legacy ControlLogix system Modbus communication spare replacement and upgrade.

FAQ

• 1. Q: What is ProSoft MVI56-MCM?
      A: It is a serial Modbus RTU/ASCII master-slave communication module designed for Rockwell ControlLogix PLC rack.

• 2. Q: What is the difference between MVI56-MCM and MVI56-MBP?
      A: MCM is for standard Modbus RTU/ASCII; MBP is specifically for Modbus Plus network.

• 3. Q: Can it support Modbus TCP?
      A: No, it is serial Modbus only; Modbus TCP version is MVI56-MNET.
