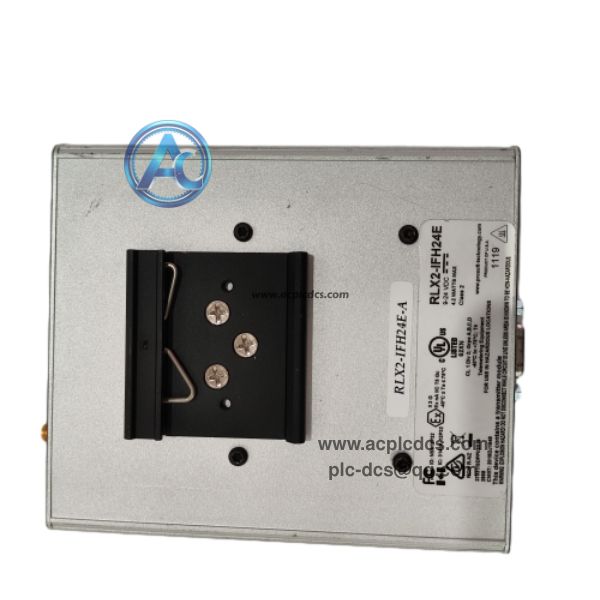

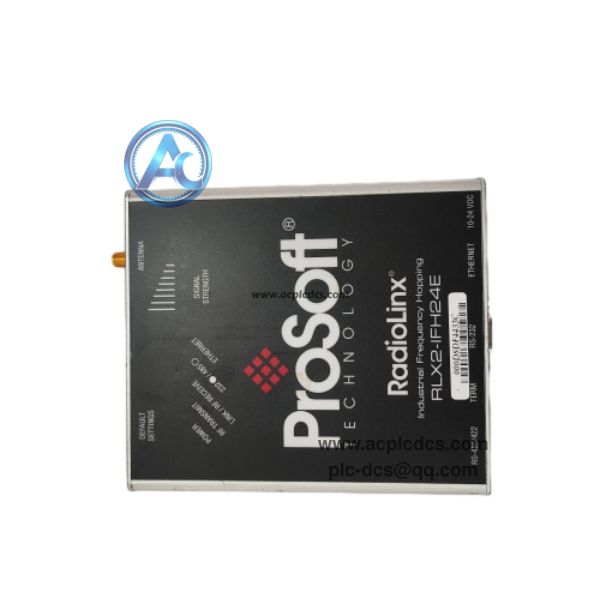

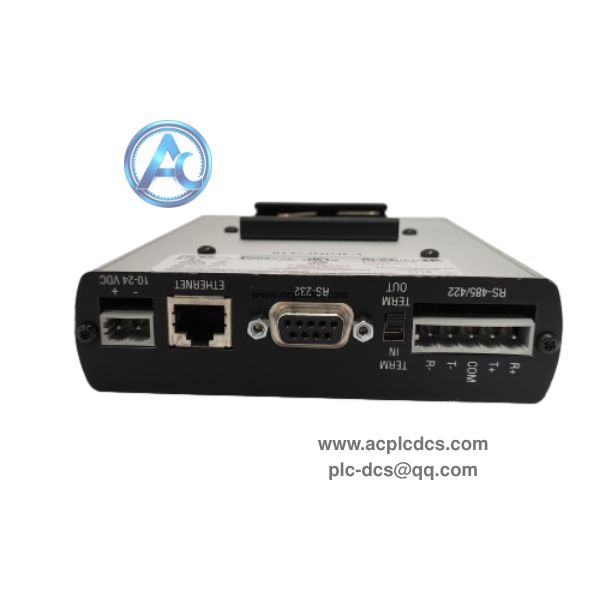

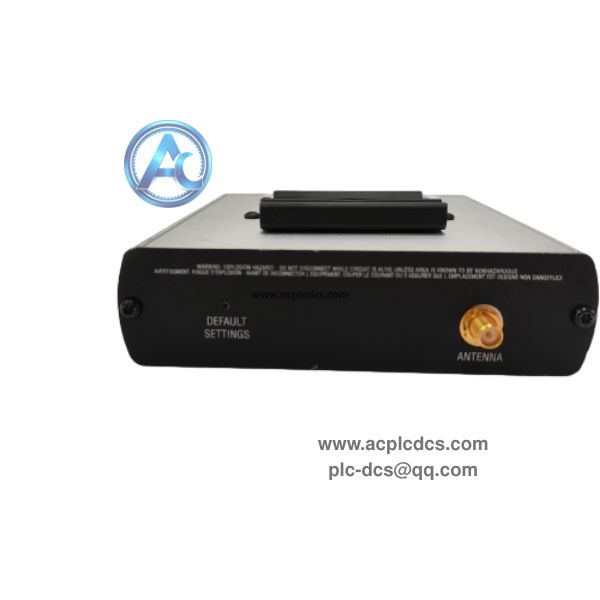

Prosoft RLX2-IFH24E Ethernet Radio in stock

Prosoft RLX2-IFH24E is a 2.4GHz frequency hopping spread spectrum industrial wireless Ethernet radio for industrial automation networks. It delivers long-range, robust wireless Ethernet links for PLC, DCS and SCADA systems, resisting heavy interference in factory and power plant environments.

This DIN rail radio supports point-to-point, point-to-multipoint and repeater modes with 128-bit AES encryption. It works for stationary and remote field equipment connections where wired cabling is impractical. Widely used in power, chemical and pulp & paper industrial wireless maintenance, spare replacement and network retrofit projects.

Data Parameters

• 1. Brand: ProSoft Technology.

• 2. Model: RLX2-IFH24E.

• 3. Product Type: Frequency Hopping Industrial Ethernet Radio.

• 4. Application: SCADA, PLC/DCS long range wireless Ethernet communication.

• 5. Feature: 2.4GHz FHSS, 128-bit AES encryption, ETSI version.

• 6. Characteristic: Programmable transmit power, max 100mW, outdoor long distance transmission.

• 7. Data Rate: 1.1 Mbps / 345 kbps selectable.

• 8. Package: Aluminium DIN rail mount radio assembly with antenna port.

• 9. Mounting: DIN rail installation inside control cabinet.

• 10. Operating Temperature: -40℃ ~ +75℃.

Core Functions

• 1. Establish long-range wireless Ethernet links between control room and remote field automation equipment.

• 2. FHSS frequency hopping technology to suppress industrial electromagnetic interference for stable data transmission.

• 3. 128-bit AES encryption to protect industrial control data and prevent unauthorized network access.

• 4. Support master, remote and repeater roles to build flexible point-to-point or point-to-multipoint topology.

• 5. Built-in CRC and ARQ automatic retransmission to guarantee reliable packet delivery for control signals.

Application Scenarios

• 1. Power plant remote SCADA wireless radio spare replacement.

• 2. Petrochemical plant field instrument long-distance wireless network upgrade project.

• 3. Pulp and paper mill large workshop mobile equipment wireless communication transformation.

• 4. Heavy industry industrial control long range wireless communication spare parts inventory backup.

• 5. Old frequency hopping industrial radio renewal and network retrofit project.

FAQ

• 1. Q: What is Prosoft RLX2-IFH24E?
      A: It is ProSoft 2.4GHz FHSS industrial Ethernet wireless radio, used for long-distance PLC/SCADA wireless communication.

• 2. Q: What topology does it support?
      A: Point-to-point, point-to-multipoint and repeater modes for flexible industrial network layout.

• 3. Q: Can it be hot swapped?
      A: Cut power off before replacement; power cycling will temporarily interrupt wireless communication links.
