Triconex 3700 Analog Input Module in stock

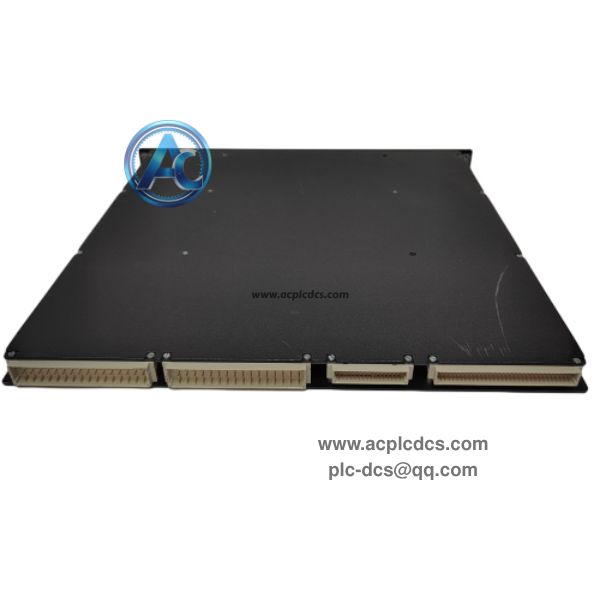

Triconex 3700 is a 32-channel differential analog input module for Triconex Tricon TMR safety instrumented system(SIS). It receives 0-5VDC analog signals from pressure, temperature and flow transmitters, converts analog signals to digital data and sends to triple redundant main processors for safety voting calculation.

This module adopts triple modular redundancy architecture with continuous per-channel diagnostics. It supports hot-swap replacement without shutting down the safety system, widely used for ESD, FGS safety cabinet maintenance, spare parts replacement and safety interlock system retrofit projects.

Data Parameters

• 1. Brand: Triconex (Schneider Electric).

• 2. Model: 3700.

• 3. Product Type: 32-Channel Differential Analog Input Module.

• 4. Product Series: Tricon Safety Instrumented System.

• 5. Channel Count: 32 differential DC-coupled input channels.

• 6. Input Range: 0~5 VDC with 6% overrange capability.

• 7. Resolution: 12-bit A/D conversion.

• 8. Feature: Hot swappable without system shutdown.

• 9. Diagnosis: Continuous channel and hardware fault detection.

• 10. Operating Temperature: 0℃ ~ +60℃.

Core Functions

• 1. Collect analog sensor signals and convert analog values into digital data for TMR voting processing.

• 2. Differential input design suppresses common-mode interference and improves measurement stability in harsh industrial sites.

• 3. Real-time channel diagnostics detect sensor open circuit, short circuit and module hardware failure.

• 4. Transmit validated process variable data to main processor for safety logic and interlock judgment.

• 5. Support hot-swap replacement for online maintenance without stopping the whole safety system.

Application Scenarios

• 1. Oil & gas plant ESD safety system analog signal acquisition cabinet spare replacement.

• 2. Petrochemical factory fire & gas detection system analog monitoring upgrade project.

• 3. Power plant safety interlock system process variable collection spare parts renewal.

• 4. Refining and chemical factories SIL3 safety protection system spare inventory backup.

• 5. Legacy Triconex Tricon safety system aging analog input module replacement project.

FAQ

• 1. Q: What is Triconex 3700?
      A: It is a 32-channel differential analog input module for Triconex Tricon SIS safety system for collecting 0-5VDC sensor signals.

• 2. Q: What is TMR architecture?
      A: Triple Modular Redundancy, three independent signal paths perform voting, the system still works with single path fault.

• 3. Q: Can 3700 be hot swapped?
      A: Yes, it supports hot swap, module replacement will not shut down the whole Tricon safety system.
