VIPA 972-0DP01 PROFIBUS DP Bus Connector Cable Assembly in stock

VIPA 972-0DP01 is a 90-degree outlet PROFIBUS DP bus connector for standard violet PROFIBUS Type A shielded cable.
Send Inquiry

Products Description

VIPA 972-0DP01 PROFIBUS DP Bus Connector Cable Assembly in stock

VIPA 972-0DP01 is a 90-degree outlet PROFIBUS DP bus connector for standard violet PROFIBUS Type A shielded cable. It adopts IDC insulation displacement wiring technology, compatible with stranded and solid-core PROFIBUS fieldbus cable.

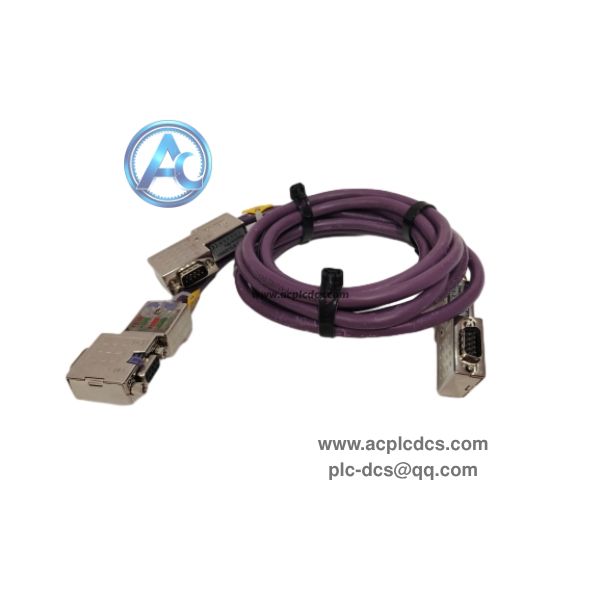

ABB VIPA972-0DP01(2).jpeg

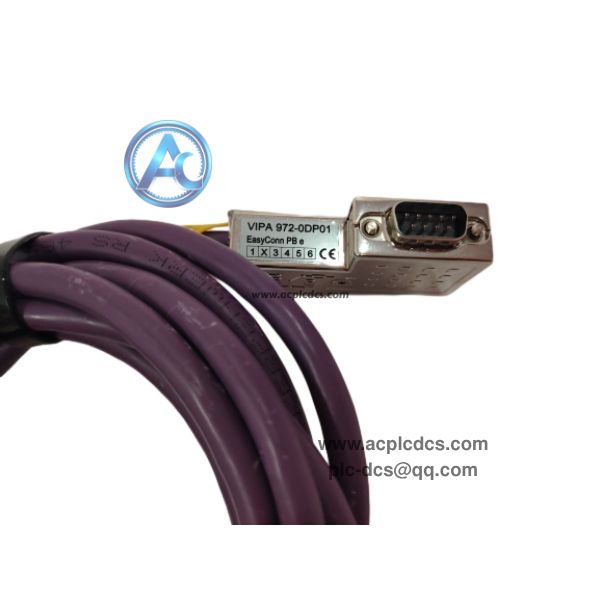

ABB VIPA972-0DP01(5).jpeg

This connector has full metal shield housing, built-in switchable terminating resistor and PG programming port. It supports communication speed up to 12Mbps, widely used for connecting PLC, drives and instruments on PROFIBUS DP network.


ABB VIPA972-0DP01(6).jpeg

Data Parameters

  • 1. Brand: VIPA.

  • 2. Model: 972-0DP01.

  • 3. Product Type: PROFIBUS DP Bus Connector, match Type A PROFIBUS cable.

  • 4. Application: PROFIBUS DP fieldbus network.

  • 5. Feature: 90° cable outlet, IDC fast wiring, no LED indicator.

  • 6. Characteristic: Metal shielding shell, switchable termination resistor.

  • 7. Communication: Max 12 Mbps PROFIBUS DP transmission rate.

  • 8. Matching Cable: Standard violet PROFIBUS Type A shielded twisted pair.

  • 9. Mounting: 9pin D-Sub connection for PLC / slave station.

  • 10. Operating Temperature: -20℃ ~ +75℃.

Core Functions

  • 1. Connect incoming and outgoing PROFIBUS DP bus cables to form bus topology.

  • 2. Provide built-in terminating resistor for segment terminal node switch control.

  • 3. Reserve PG programming interface for online debugging and parameter download.

  • 4. Metal shell shielding to suppress industrial electromagnetic interference.

  • 5. Fast wiring by IDC cutting terminal without stripping core wire insulation.

Application Scenarios

  • 1. VIPA SPEED7 PLC PROFIBUS DP communication network construction.

  • 2. Frequency inverter, encoder, DP remote I/O fieldbus wiring.

  • 3. Chemical, water treatment, metallurgy PROFIBUS automation cabinet.

  • 4. Replacement compatible with Siemens 6ES7972-0BA52-0XA0 connector.

  • 5. PROFIBUS DP spare parts, bus network maintenance and renovation.

FAQ

  • 1. Q: What cable matches VIPA 972-0DP01?
        A: Standard Type A PROFIBUS violet shielded twisted pair cable.

  • 2. Q: What is the difference between 972-0DP01 and 972-0DP10?
        A: 0DP01 has no diagnostic LED; 0DP10 adds bus status indicator LEDs.

  • 3. Q: Is it compatible with Siemens PROFIBUS network?
        A: Yes, it can directly replace the common Siemens DP bus connector.
