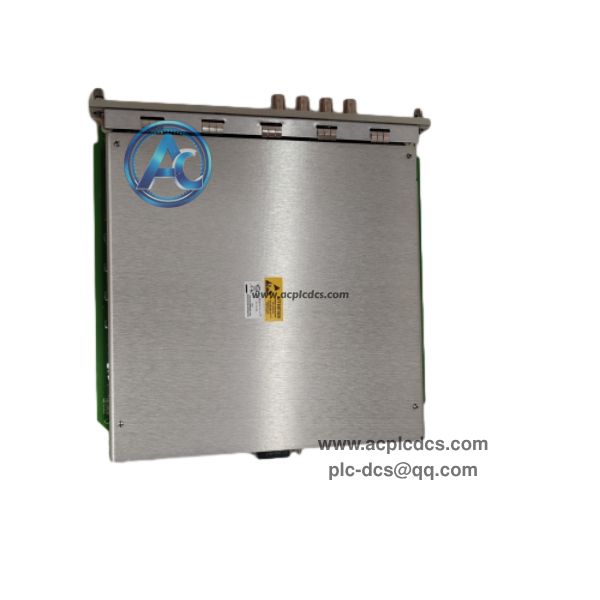

Bently Nevada 3500/44M Gas Turbine Vibration Monitor in stock

Bently Nevada 3500/44M is a dedicated 4-channel vibration monitor for aeroderivative gas turbines within the 3500 machinery protection system. It accepts signals from accelerometers and velomitor sensors, supporting 1X tracking filter and band-pass vibration measurement for gas turbine protection.

This module supports dual Keyphasor inputs, each channel pair can use independent tracking filters. It provides 4-20mA recorder output and two-level alarm configuration, widely used for gas turbine condition monitoring and trip interlock protection.

Data Parameters

• 1. Brand: Bently Nevada (Baker Hughes)

• 2. Model: 3500/44M

• 3. Product Type: Aeroderivative GT Vibration Monitor Module

• 4. Channels: 4 independent channels, grouped in two pairs

• 5. Power Consumption: Typical 7.7W

• 6. Input: Accelerometer, Velomitor seismic sensors

• 7. Frequency Range: 4Hz~30kHz direct, 18Hz~14.5kHz integrated acceleration

• 8. Feature: Dual Keyphasor, 1X tracking filter, 4-20mA analog output

• 9. System: 3500 machinery protection & condition monitoring rack

• 10. Operating Temperature: -40℃ ~ +85℃

Core Functions

• 1. Continuously measure gas turbine vibration, support 1X synchronous vibration tracking.

• 2. Configure Alert and Danger alarm thresholds with adjustable alarm delay.

• 3. Process seismic signals, signal integration and band-pass filtering for GT diagnosis.

• 4. Send alarm signals to 3500/32 relay module for machine trip protection.

• 5. Transmit vibration data to rack interface and upper monitoring software System 1.

Application Scenarios

• 1. Aeroderivative gas turbine vibration monitoring and protection system.

• 2. Oil & gas offshore and onshore gas turbine generator sets.

• 3. Mechanical drive gas turbine, pipeline compressor turbine units.

• 4. Power plant distributed gas turbine TSI supervisory instrument rack.

• 5. 3500 series spare replacement and gas turbine control overhaul.

FAQ

• 1. Q: What is Bently 3500/44M?
      A: It is a dedicated 4-channel vibration monitor for aeroderivative gas turbines.

• 2. Q: What sensors does it support?
      A: It works with accelerometers and velomitor seismic sensors, not proximitor probes.

• 3. Q: Is this model still in production?
      A: Legacy module, mainly supplied for aftermarket spare parts maintenance.
