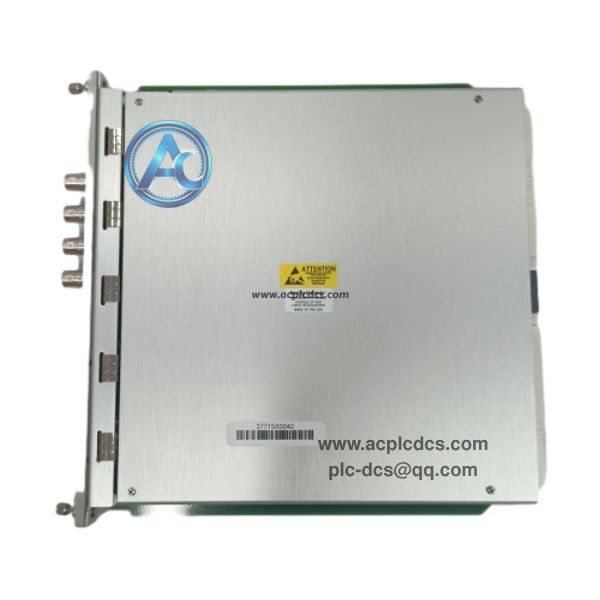

Bently Nevada 3500/45 176449-04 Position Monitor Module in stock

Bently Nevada 3500/45 176449-04 is a position monitor module for the 3500 machinery monitoring system. It receives eddy current probe signals to measure axial thrust position, valve position and other displacement parameters of rotating machinery.

This module supports multiple measurement modes and independent alarm setting for each channel. It transmits position data and alarm status to the system host, widely used for turbine, compressor and other key equipment spare replacement.

Data Parameters

• 1. Brand: Bently Nevada.

• 2. Model: 3500/45, Part No:176449-04.

• 3. Product Type: Position Monitor Module.

• 4. Application: Bently 3500 machinery condition monitoring rack system.

• 5. Feature: Support eddy current probe input for displacement measurement.

• 6. Characteristic: Independent channel configuration, programmable alarm and trip limits.

• 7. Communication: Backplane bus communication with 3500 rack and system processor.

• 8. Package: Complete module card, matched with dedicated terminal block.

• 9. Mounting: Installed in standard 3500 series rack chassis.

• 10. Operating Temperature: -20℃ ~ +60℃.

Core Functions

• 1. Real-time acquisition of axial thrust, valve position and other displacement signals.

• 2. Compare measured value with preset threshold to trigger alarm or trip output.

• 3. Transmit position trend data and fault status to 3500 system software.

• 4. Detect probe open circuit, short circuit and signal abnormal fault automatically.

• 5. Provide reliable protection signal for rotating machinery anti-thrust damage.

Application Scenarios

• 1. Thermal power plant steam turbine axial thrust monitoring cabinet.

• 2. Petrochemical centrifugal compressor rotor position online protection.

• 3. Energy plant large turbo-expander and pump unit condition monitoring.

• 4. Metallurgy industry high-speed rotating equipment displacement monitoring renovation.

• 5. 3500 system position monitoring module spare inventory backup.

FAQ

• 1. Q: What is Bently Nevada 3500/45 176449-04?
      A: It is a dedicated position monitor module for the Bently 3500 monitoring rack.

• 2. Q: What sensor does it match?
      A: It works with 3300 XL series eddy current proximity probe and proximitor.

• 3. Q: What can it monitor?
      A: Mainly for thrust position, valve position and other linear displacement parameters.
